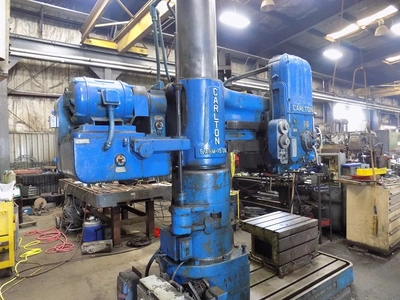

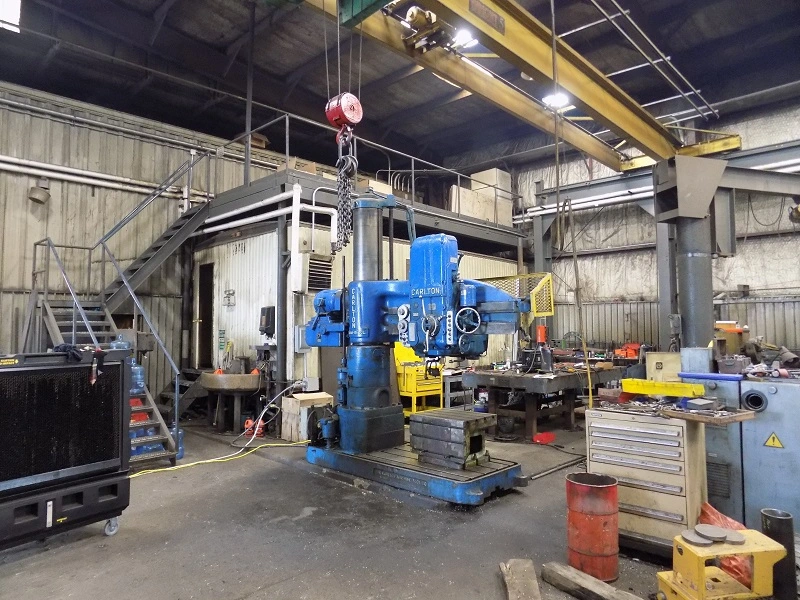

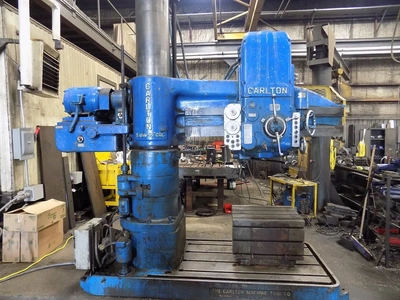

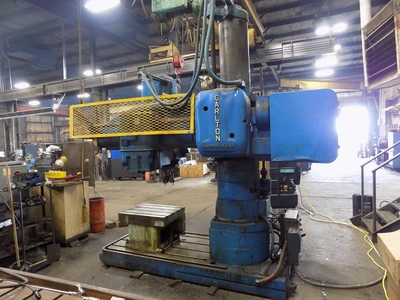

USED 1954 CARLTON 3A

SPECIFICATIONS:

MODEL ........................ 3A
AREA OF BASE ................. 65' X 42"
SPINDLE SPEEDS ............... (36) 15 TO 1500 RPM
SPINDLE FEEDS ................ (18) .004 TO .125
TAP LEADS .................... 8, 11-1/2, 14, 18 TPI
DIAMETER OF SPINDLE .......... 3-3/16"
TAPER IN SPINDLE ............. #5 MT
DISTANCE SPINDLE TO BASE ..... 10-1/2" MIN, 66" MAX
DISTANCE SPINDLE TO COLUMN ... 15" MIN, 60" MAX
POWER ARM ELEVATION .......... YES
POWER COLUMN CLAMPING ........ YES
POWER HEAD CLAMPING .......... YES
POWER ARM ELEVATION .......... YES
COOLANT ...................... YES
MAIN MOTOR ................... 20 HORSEPOWER
