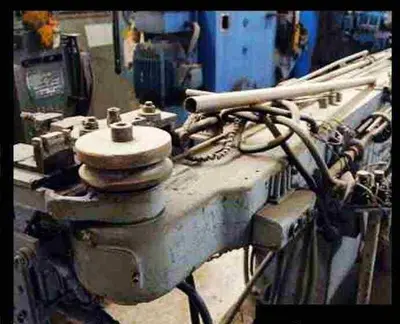

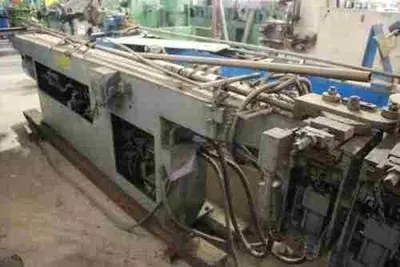

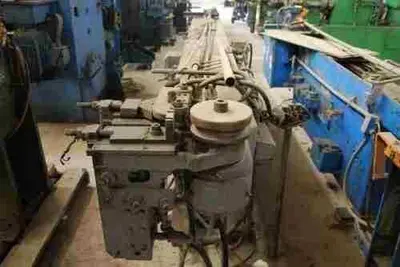

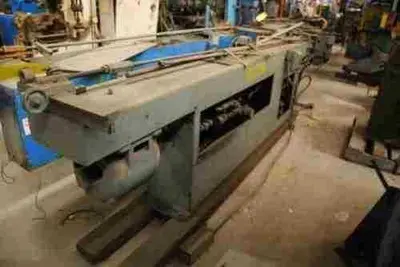

USED PINES #3/4

MACHINE SPECIFICATIONS:Maximum Radius: 5" (Approximate)Maximum Tube Length: 9′ 11"Standard Operating Pressure: 1,000 PSIBending Arm Speed: 27 RPMFloor to Centerline of Bending Form: 35"Rotation: Counter-ClockwiseMaximum Bend Angle: 180 Degrees + OverbendPanel Mounted Hydraulic ValvesOil Reservoir in Base
EQUIPPED WITH:Stationary Mandrel Rod & HolderManual (8) Station Turret Degree of Bend SelectorPressure Die Holder; Clamp Die Holder (Special)AC Main Drive Motor and Electrical ControlsPedestal Mounted Controls with Disconnect SwitchDistance Between Bend Stops
Bending Capacities:I.P.S. Extra Heavy Pipe: 3/4"Non-Ferrous Tubing Y.P. to 12,000 PSI: 1-1/2" O.D. x .093" WallNon-Ferrous Tubing Y.P. to 25,000 PSI: 1-1/2" O.D. x .065" WallSteel Tubing Y.P. to 40,000 PSI: 1-3/8" O.D. x .065" WallStainless Steel Tubing Y.P. to 60,000 PSI: 1-1/8" O.D. x .065" WallSteel Bar Round Y.P. to 40,000 PSI: 3/4" DiameterSteel Bar Square Y.P. to 40,000 PSI: 11/16" SquareAngle Iron Y.P. to 40,000 PSI: 1-1/4" x 1-1/4" x 3/16"Square Tube Mild Steel: 1" x .065"Rectangular Tubing Mild Steel (E-Plane): 1" x 1-1/4" x .065"Rectangular Tubing Mild Steel (H-Plane): 1" x 1-1/4" x .049"
APPROXIMATE OVERALL DIMENSIONS: 144" L – R x 48" F – B x 48" HAPPROXIMATE WEIGHT: 2,750 Lbs.
