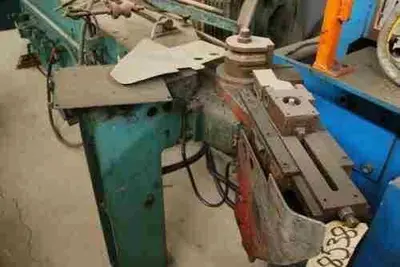

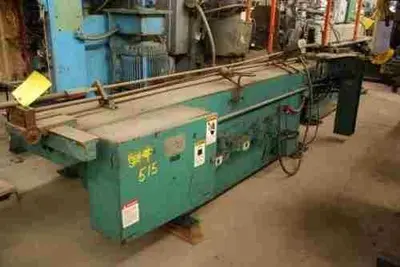

USED PINES 3/4

MACHINE SPECIFICATIONS:Maximum Tube Outside Diameter: 1" (25.4 mm)Maximum Radius: 10"Maximum Tube Length: 9′ 11"Standard Operating Pressure: 1,000 PSIBending Arm Speed: 15 RPM; Speed Control ValveRotation: Counter-ClockwiseMaximum Bend Angle: 180 Degrees + OverbendBend Angle Accuracy: + or – 1/4 Degree
EQUIPPED WITH:(6) Station Automatic Turret Degree of Bend SelectorPressure Die HolderBIJUR One-Shot Slide LubricatorSwinging Arm Safety Device5 HP AC Main (Pump) Drive Motor; Electrical ControlsDistance Between Bend StopsPush Button Operation
BENDING CAPACITIES:I.P.S. Extra Heavy Pipe: 3/4"Non-Ferrous Tubing Y.P. to 12,000 PSI: 1-1/2" O.D. x .093" WallNon-Ferrous Tubing Y.P. to 25,000 PSI: 1-1/2" O.D. x .065" WallSteel Tubing Y.P. to 40,000 PSI: 1-3/8" O.D. x .065" WallStainless Steel Tubing Y.P. to 60,000 PSI: 1-1/8" O.D. x .065" WallSteel Bar Round Y.P. to 40,000 PSI: 3/4" DiameterSteel Bar Square Y.P. to 40,000 PSI: 11/16" SquareAngle Iron Y.P. to 40,000 PSI: 1-1/4" x 1-1/4" x 3/16"Square Tube Mild Steel: 1" x .065"Rectangular Tubing Mild Steel (E-Plane): 1" x 1-1/4" x .065"Rectangular Tubing Mild Steel (H-Plane): 1" x 1-1/4" x .049"
APPROXIMATE OVERALL DIMENSIONS: 158" L – R x 40" F – B x 40" HAPPROXIMATE WEIGHT: 3,750 Lbs.
