TABLE SIZE
28.35" x 16.14"
MAXIMUM TABLE LOAD
1,102 LBS
SPINDLE NOSE TO TABLE TOP
7.87" - 24.02"
X AXIS TRAVEL
22.05"
Y AXIS TRAVEL
16.14"
Z AXIS TRAVEL
16.14"
RAPID TRAVERSE RATE X & Y AXES
1181 IPM
RAPID TRAVERSE RATE Z AXIS
945 IPM
CUTTING FEED RATE
0.1 - 393 IPM
SPINDLE SPEEDS
100 - 10000 RPM
SPINDLE TAPER
CAT 40
TOOL CHANGER CAPACITY (SIDE-ARM)
20 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL)
1.5 SECONDS
SPINDLE MOTOR
10 HP (DIRECT DRIVE)
MAXIMUM TOOL WEIGHT
16 LBS
WEIGHT, APPROX.
10,200 LBS
DIMENSIONS, APPROX.
78"L x 88"W x 107"H

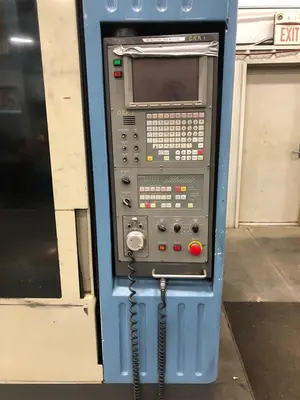

Equipped With:MITSUBISHI NEOMATIC 500M MELDAS CNC CTRL w/AUDIO FEATURE,ETHERNET & RS-232 PORT INTERFACES FOR DNC OPERATIONS, SONY GLASS LINEAR SCALES ON X & Y AXIS, GRAPHICS DISPLAY,RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),SWING ARM TOOL CHANGER, CHIP WASHDOWN/CHIP-FLUSH FEATURE, REMOTE PULSE GENERATOR HAND-WHEEL, COOLANT SYSTEM AT SPINDLE w/TANK & PUMP,FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS****BOX WAY DESIGN ON ALL AXIS****JAPANESE QUALITY****
