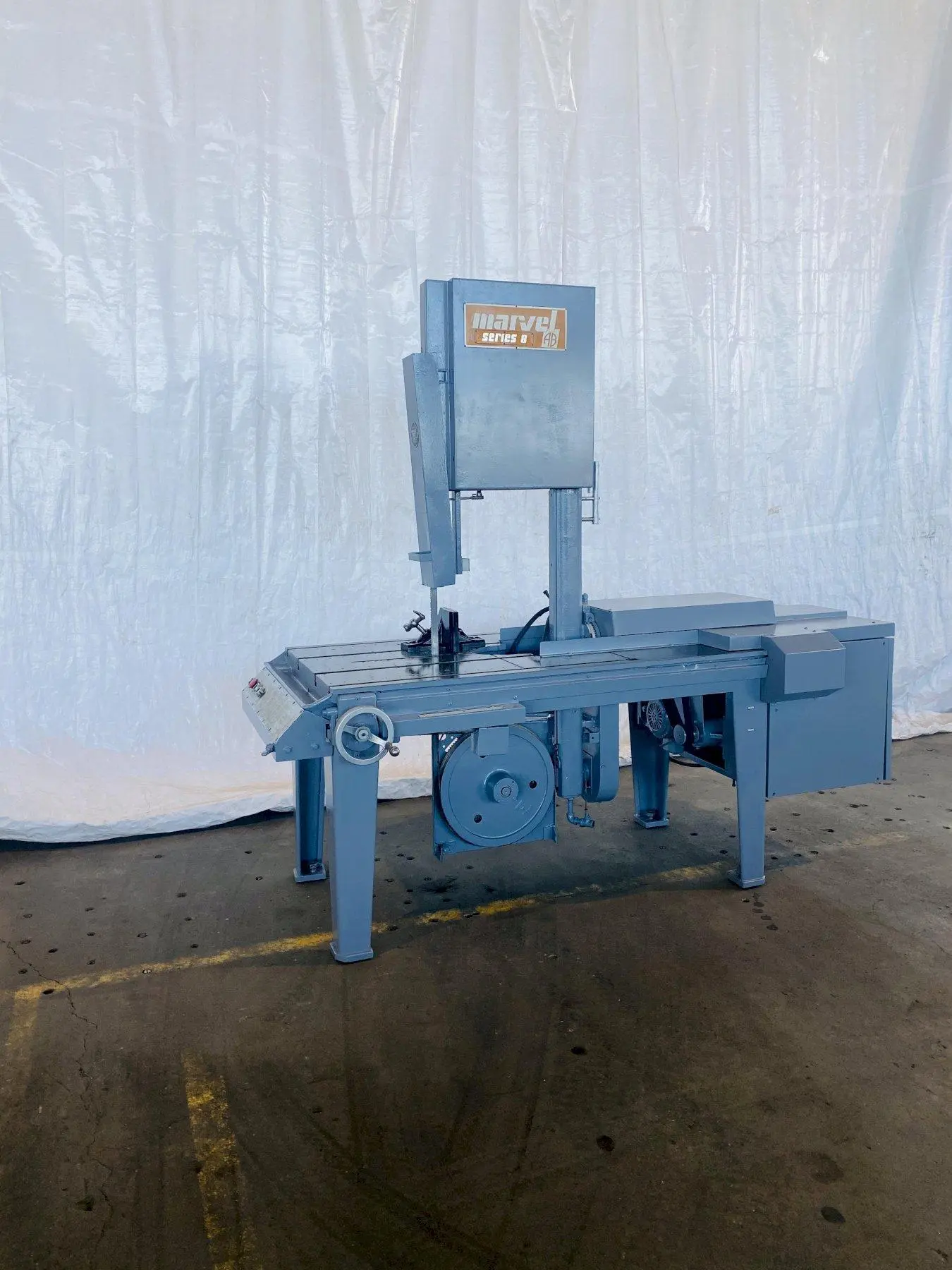

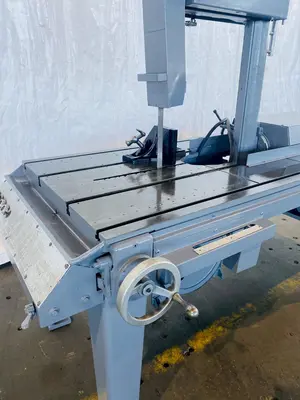

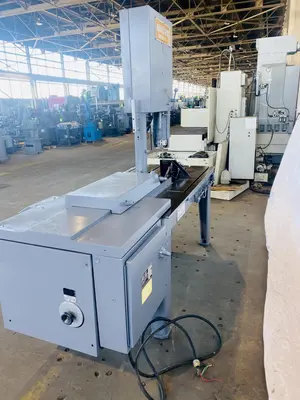

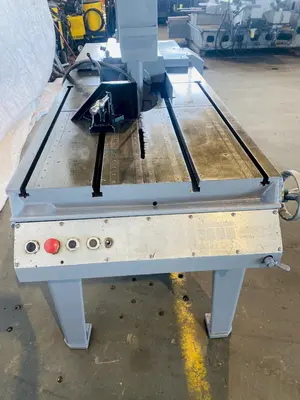

USED 1982 MARVEL SERIES 8 MARK I

MODEL........................ SERIES 8 MARK ISERIAL....................... 820599NOMINAL ..................... 18" X 20"
MAXIMUM ..................... 18" X 22-1/2"
BLADE @ 45 DEG NOMINAL ...... 18" X 12-1/4"
BLADE @ 45 DEG MAXIMUM ...... 18" X 13"
TABLE WORKING SURFACE ....... 33" X 24-1/4"
TABLE HEIGHT ................ 34-1/2"NUMBER OF T-SLOTS IN TABLE .. (4) ACCEPTS 5/8" T-BOLTS
BLADE LENGTH ................ 14'6"BLADE WIDTH/GAUGE ........... 1" X .035
MAXIMUM VISE OPENING ........ 21"
HEIGHT OF VISE JAWS ......... 6"
WIDTH OF VISE JAWS .......... 12"
INF VAR BLADE SPEEDS ........ 50-450 F.P.M.
FEED PRESSURE RANGE, INF VAR. 0-140 LBS.
APPROXIMATE WEIGHT .......... 2,670 LBS.
APPROXIMATE DIMENSIONS ...... 93"X 42"X 87"
