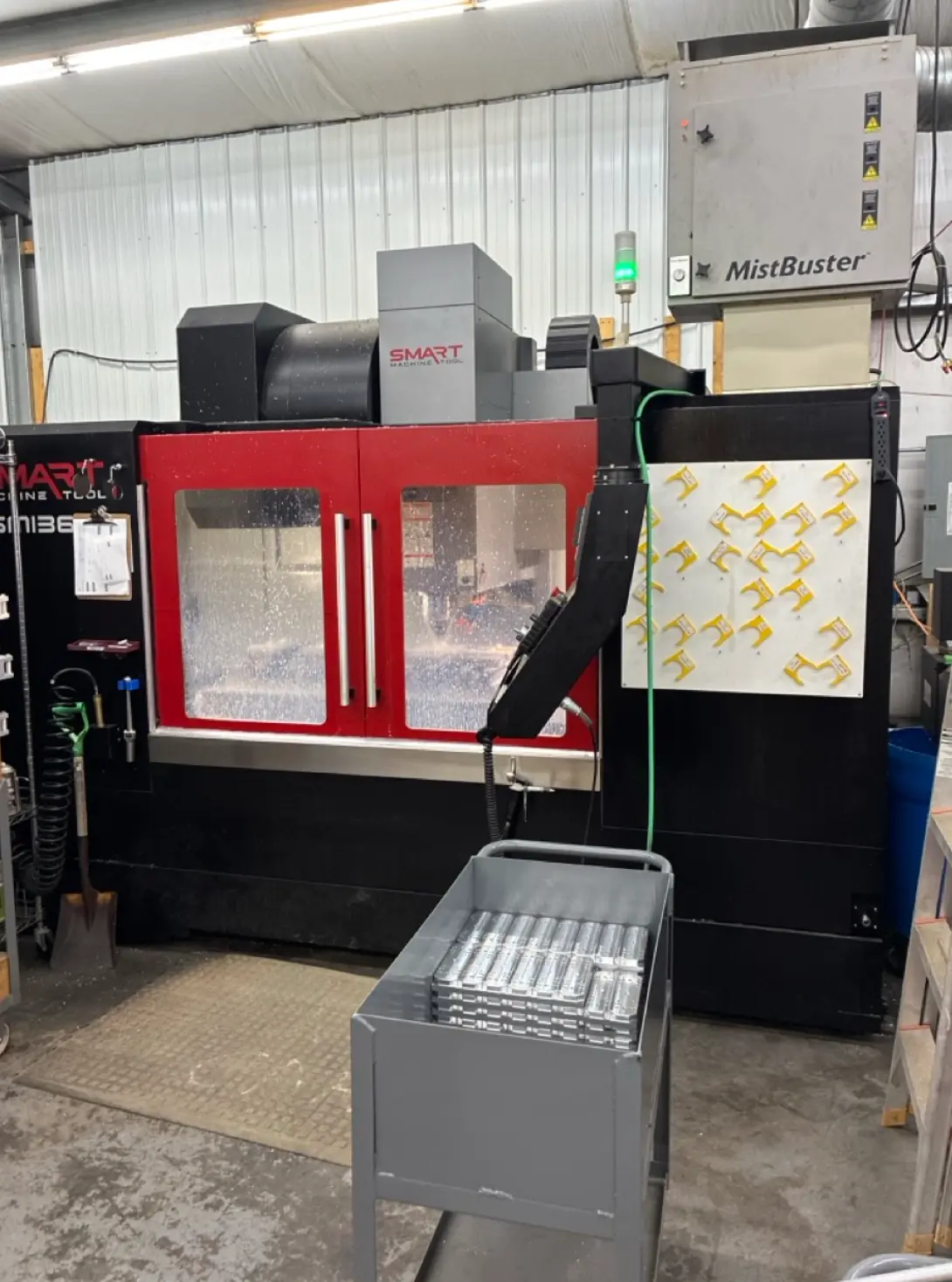

Used Vertical Machining Center. Features 51.1" x 25.6" x 24.2" XYZ travel, 25 hp, 12,000 RPM, CAT 40 taper, 36 ATC, and Fanuc 0i-MF Control. Includes chip conveyor, high-speed machining, and coolant through spindle.
| X | 51.1" | 1,297.9 mm |
| Y | 25.6" | 650.24 mm |
| Z | 24.2" | 614.68 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 36 | 36 |
| Taper | CAT 40 | CAT 40 |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 134″ x 115″ | 134″ x 115″ |
| Weight | 27,000 lbs | 27,000 lbs |
Table Size: 55.12″ x 31.50″
Rapid Traverse: 1,181 IPM (590 IPM programmable)
Power: 220V, 3PH
Fanuc 0i-MF Control
Chip Conveyor
High Speed Machining with 200 Block Look Ahead
Coolant Through Spindle 290 PSI (1,000 PSI prep)
Renishaw OMI-2T Preparation Kit and GUI Software
