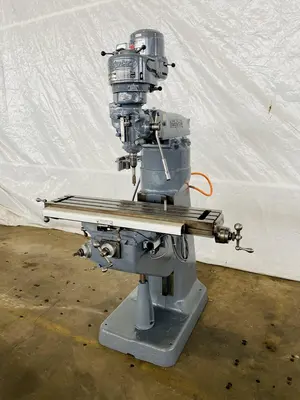

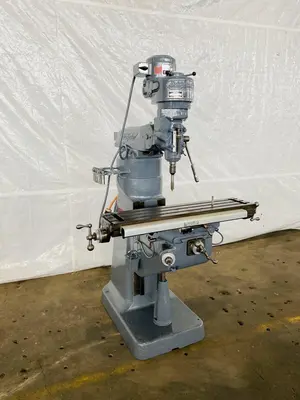

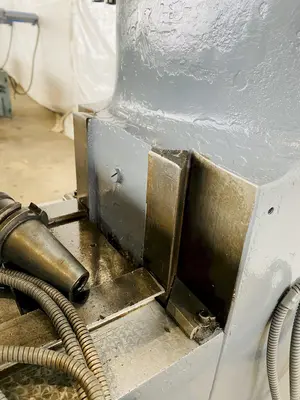

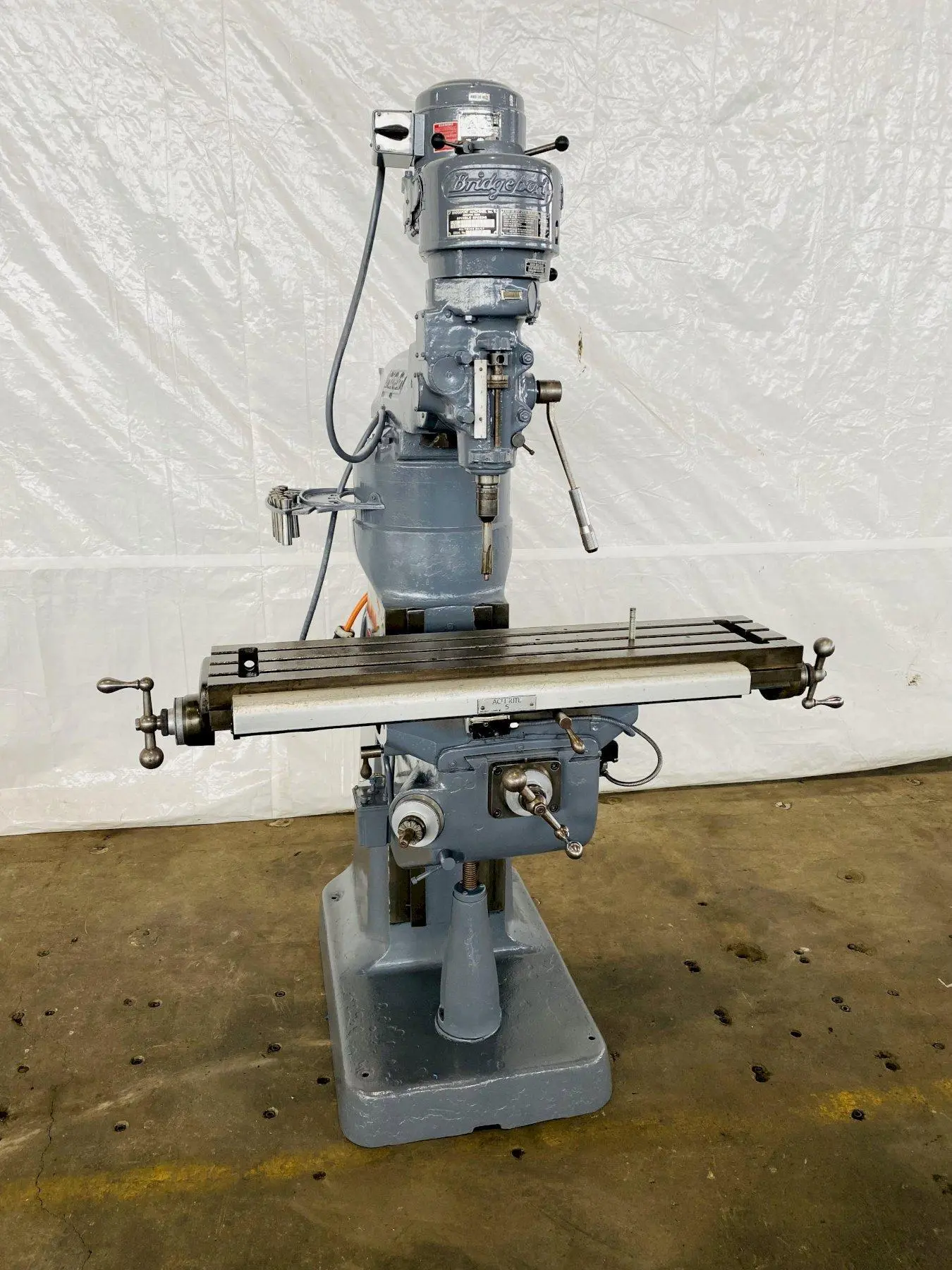

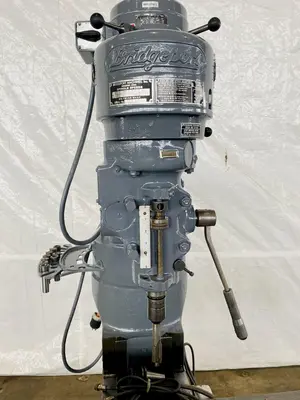

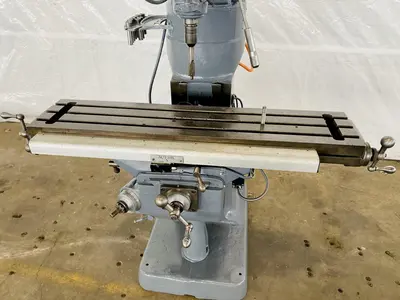

USED BRIDGEPORT SERIES 1

MODEL ................................ J

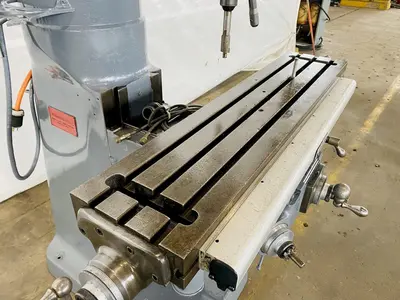

AREA OF TABLE ........................ 42" X 9"

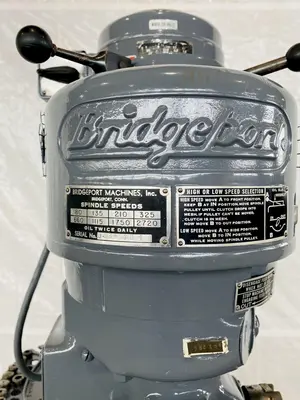

SPINDLE SPEEDS ....................... 80 TO 2720 RPM
SPINDLE FEEDS ........................ .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ............ 32"
CROSS TRAVEL ......................... 12"
VERTICAL TRAVEL OF KNEE .............. 16"
QUILL TRAVEL ......................... 5"

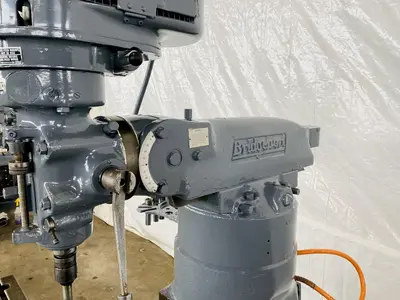

HEAD TILTS, FORWARD/REVERSE .......... 60 DEGREE
HEAD SWIVELS, LEFT/RIGHT ............. 90 DEGREE
DEPTH OF THROAT ...................... 6-3/4" TO 18-3/4"

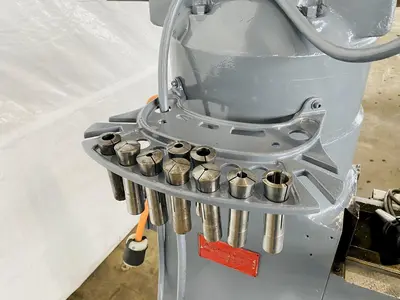

SPINDLE TAPER ........................ R-8

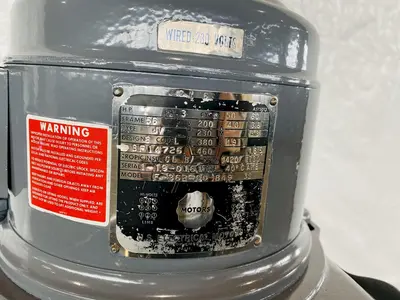

MOTOR, HORSEPOWER .................... 1
