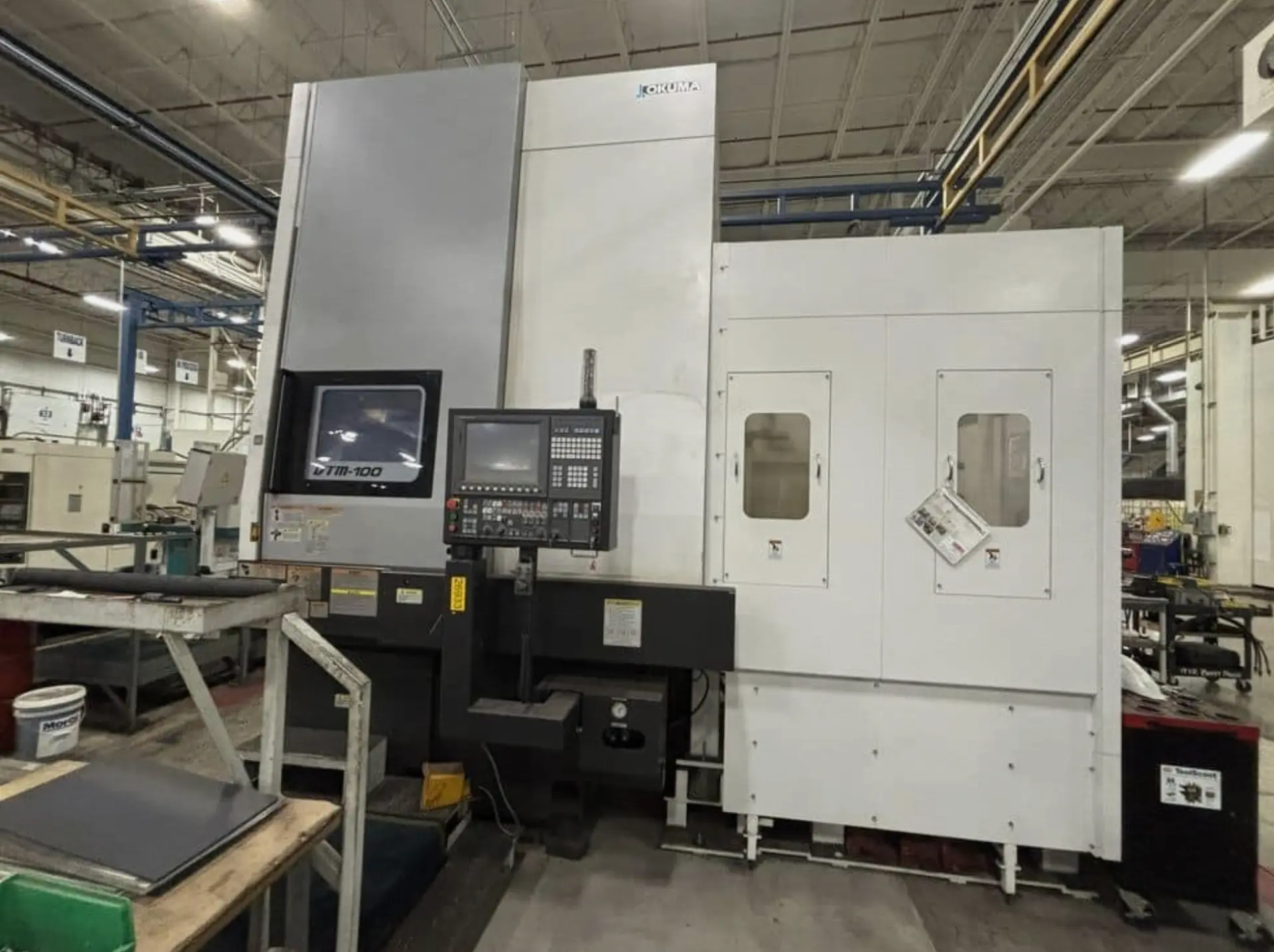

USED 2017 OKUMA VTM-100

Used Vertical Boring Mill: Max Machining Diam. & Swing 39.37", Height 33.07", Load 2640 lbs, 360° C-Axis, Spindle Speed 10–1250 RPM, 40 HP Motor. Includes OSP-P300SA CNC Control, Coolant System, 60-Station ATC.

Max. Machining Diameter: 39.37″
Max Machining Height: 33.07″
Max Swing Diameter: 39.37″
Max Workpiece Load: 2,640 Lbs.
X-Axis Travel: 25.59″
Z-Axis Travel: 30.07″
C-Axis: 360° (0.001°)
Rapid Traverse X-Axis: 630 IPM
Rapid Traverse Z-Axis: 630 IPM
Spindle Nose: A2-11
Spindle Bore: 4.33″
Spindle Speed: 10 – 1,250 RPM
Spindle Motor: 40 HP
Turret Type: ATC Single Tool
Tool Size: 1.0″, 1.25″
Boring Bar Diameter: ø1.5″, ø2.0″
Max Spindle Speed: 10 – 4500 RPM
Speed Ranges: 2 Auto Ranges
Taper: 50
Capacity: 60 Tools
Max Tool Diameter: 6.70″ – 9.84″
Max Tool Length: 19.69″
Max Tool Weight: 66 Lbs.
Power Source: AC 22/480V, Three Phase, 60 Hz

Okuma OSP-P300SA CNC Control
Coolant System
60 Station Automatic Tool Changer
