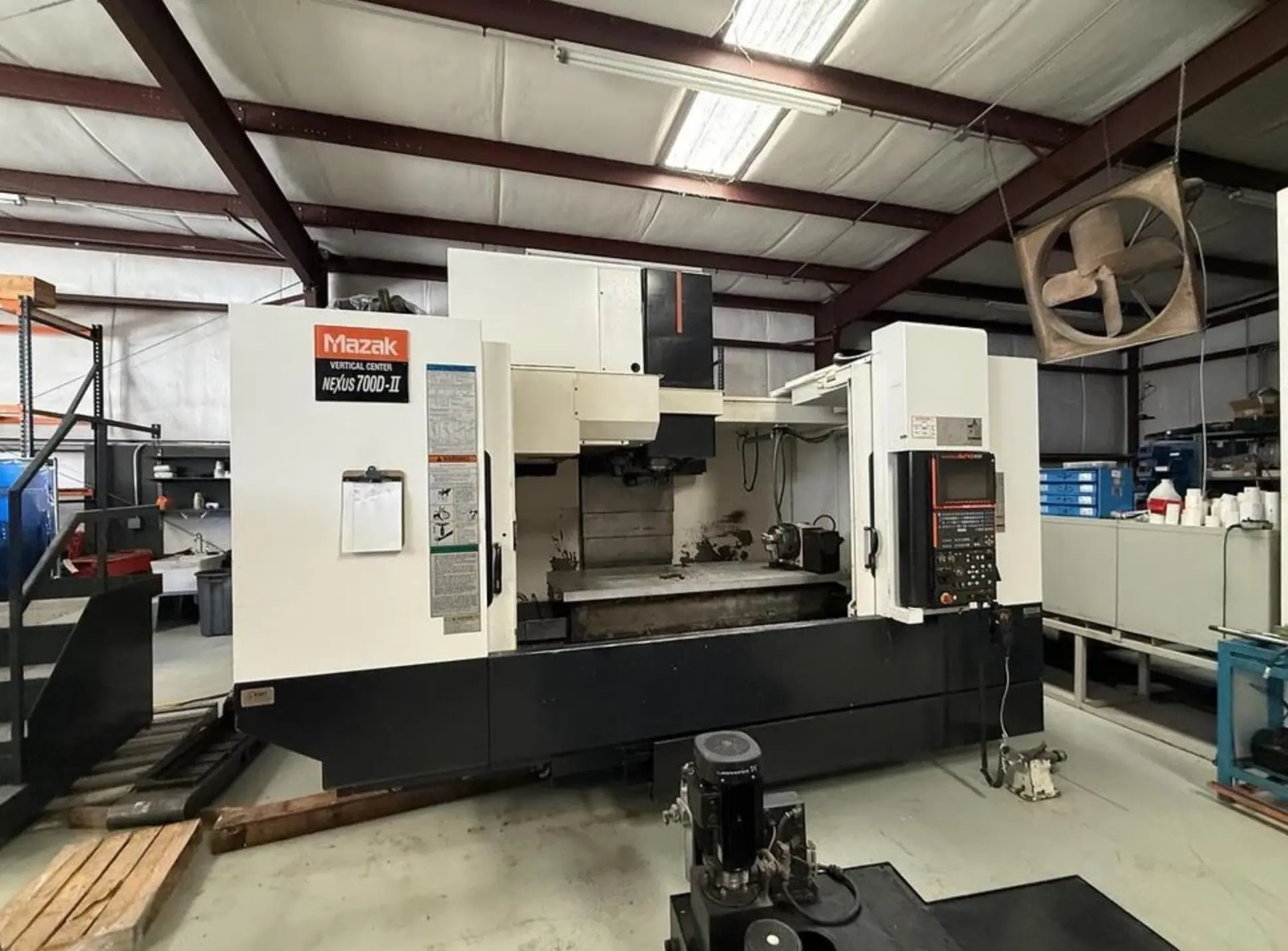

USED 2011 MAZAK VERTICAL CENTER NEXUS 700D/50-II
Overview
Description
Vertical Machining Center. Features: 30 hp, 24 ATC, 4-axis, 6000 RPM, CAT 50 taper. Includes rotary table, chip conveyor, manual chuck, work light, XP OS, and more. Used condition.
Specifications
| X | 60.24" | 1,530.1 mm |
|---|---|---|
| Y | 27.56" | 700.02 mm |
| Z | 25.59" | 649.99 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT 50 | CAT 50 |
| # Axis | 4 | 4 |
| Control | CNC (Mazatrol Matrix Nexus) | CNC (Mazatrol Matrix Nexus) |
Equipped With
9.13" 3-Jaw Manual Chuck SC-9T
Absolute Encoder Sys N/A with S/F-3X
ADD EIA/ISO Functions
B (Synchronized Tapping)
Cover Coolant
Detachable Manuel Pulse Generator
Hi-Pressure Coolant Thru Sys w/Flood 213psi
Left Side Hinge Type Chip Conveyor for Steel
MX Roller Guide Sys Dual Probing Kit OMP60/OTS AA w/EIA Inspection Plus
North American Power Transformer
Spindle Speed 6000 High Torque Spindle 665 FT/LBS
Total Cover
Windows XP Operating Sys for Mazak Machine Control
EIA/ISO Code Input Function
Mt Connect Adapter Software
Relocation Device
Work Light
Kitagawa TS-250 Tailstock for Mazak MR-250
LAN Port in Electrical Cabinet
Mazak MR-250RAM01 NC Rotary Table Package
MT Connect Preparation
Operator Door Interlock with Lock Switch
4th Axis Rotary Table
Chip Conveyor
