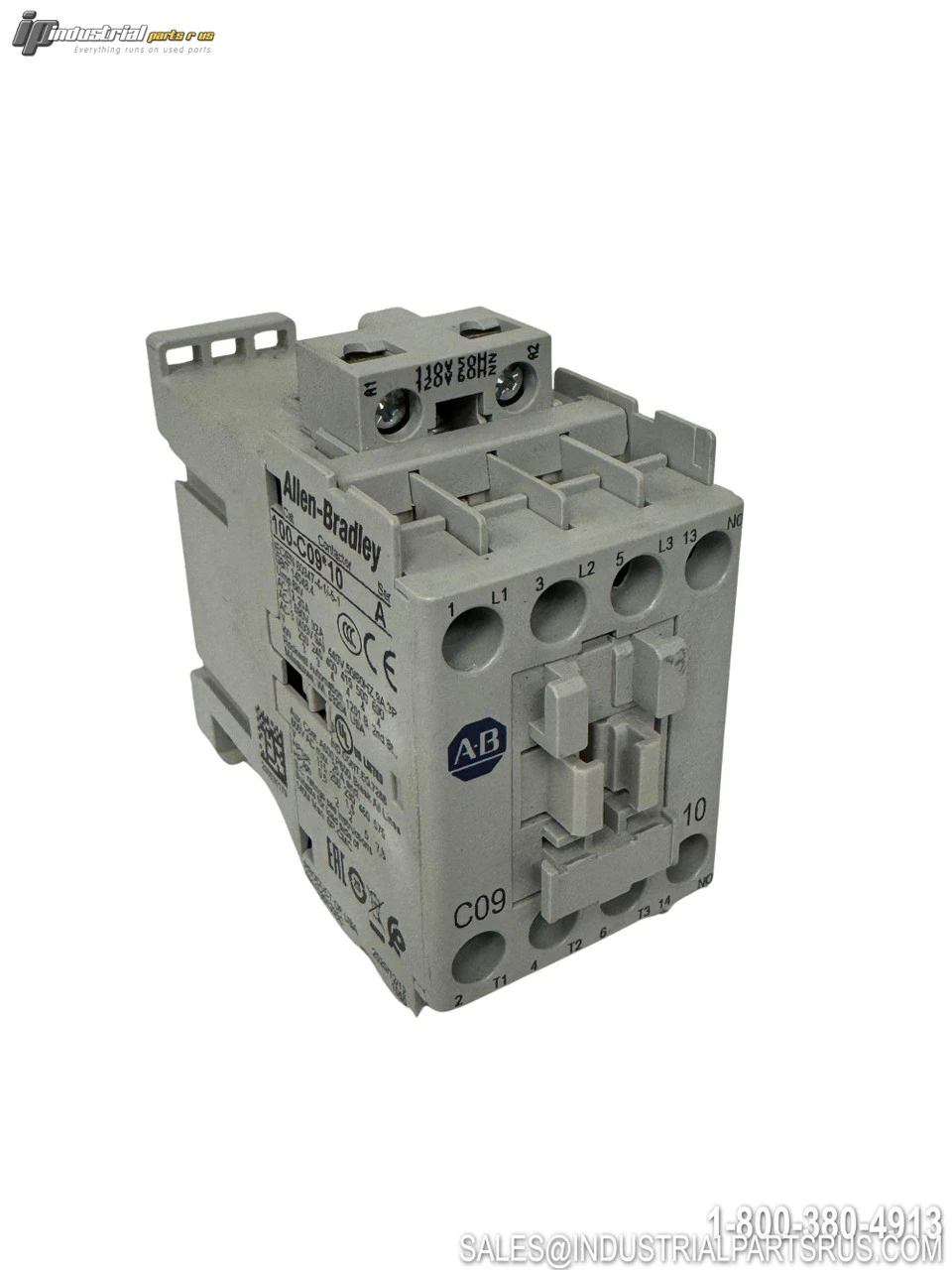

USED ALLEN-BRADLEY 100-C09*10
Overview
Description
The Allen-Bradley 100-C09*10 is a 3-phase IEC rated contactor designed for electric motor control applications. This compact contactor is rated for 9 amps AC-3/32 amps AC-1, with motor ratings of 2 HP at 230V and 5 HP at 460V three-phase, and includes one normally open auxiliary contact.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
100-C09*10
Product Type
IEC Contactor
Current Rating (AC-3)
9 Amps
Current Rating (AC-1)
32 Amps
Voltage Rating
600V AC
Poles
3-Pole
HP Rating @ 230V
2 HP
HP Rating @ 460V
5 HP
HP Rating @ 575V
7.5 HP
Auxiliary Contacts
1 NO (Normally Open)
Frequency Rating
50/60 Hz
Mounting Type
DIN Rail or Panel Mount
Terminal Type
Screw Terminals
Certifications
UL 508, CSA, IEC 60947-4-1, CE
Series
Bulletin 100-C
Coil Voltage
Variable (see coil code options)
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1549
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: DIN Rail
Current Rating: 9A AC-3 / 32A AC-1
Material: Thermoplastic
Manufacturer: Allen-Bradley
Enclosure Type: Open Type
Part Number: 100-C09*10
Series: Bulletin 100-C
Shelf: C-14
Model: 100-C09*10
Coil Voltage: Variable (24V, 120V, 240V AC/DC)
Horsepower: 2 HP @ 230V, 5 HP @ 460V
MPN: 100-C09*10
Type: Contactor
