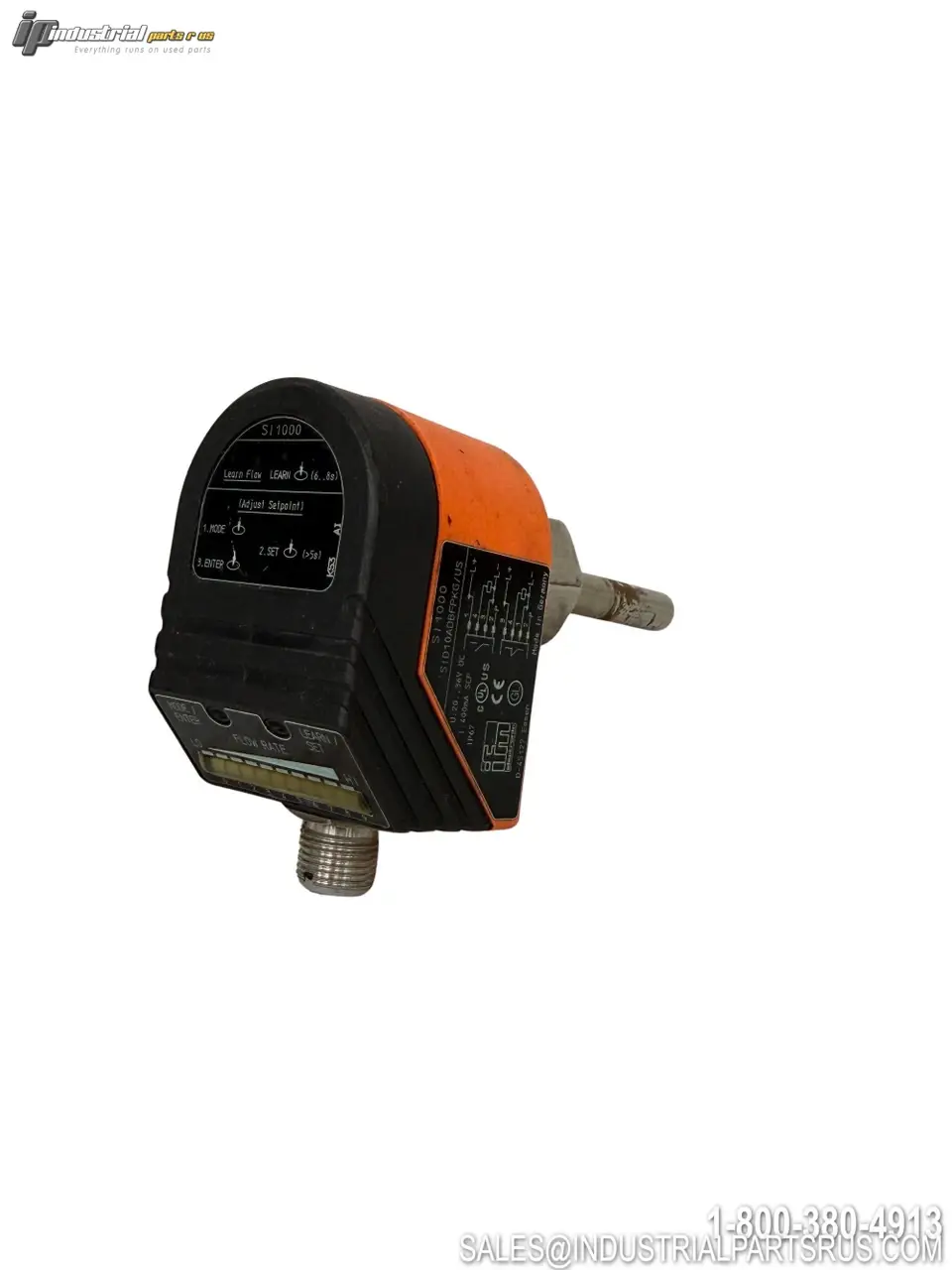

USED IFM SID10ADBFPKG/US

The IFM SID10ADBFPKG/US is a compact flow monitor designed for monitoring flow rates in liquid and gas applications. This sensor features thermal flow measurement technology with a 45mm probe length and M18x1.5 thread connection for easy installation. It provides reliable PNP digital output and is suitable for use in machine tool coolant systems, oil monitoring, and other industrial flow monitoring applications.
Specification
Value
Brand
IFM
Model/Part Number
SID10ADBFPKG/US
Product Type
Flow Monitor
Operating Voltage
20-36 VDC
Output Type
PNP
Process Connection
M18 x 1.5 Internal Thread
Probe Length
45 mm
Pressure Rating
300 Bar
Setting Range (Liquids)
3-300 cm/s
Operating Temperature
-25 to +80°C
Protection Rating
IP67
Current Consumption
< 100 mA
Housing Material
PBT-GF20
Wetted Parts Material
Stainless Steel 316L
Connection Type
4-Pin Connector
We warranty all items for 30 days from date of purchase.

SKU: AI1539
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: PNP
Sensor Type: Thermal Flow Monitor
Full Load Amps: < 100 mA
Manufacturer: IFM
Enclosure Type: IP67
Part Number: SID10ADBFPKG/US
Shelf: Q-7
Model: SID10ADBFPKG/US
MPN: SID10ADBFPKG/US
Type: Flow Sensor
