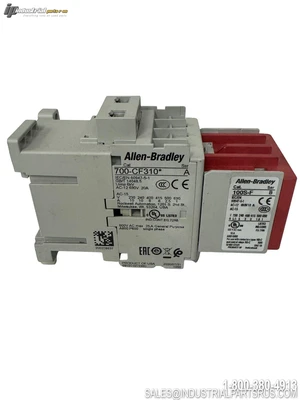

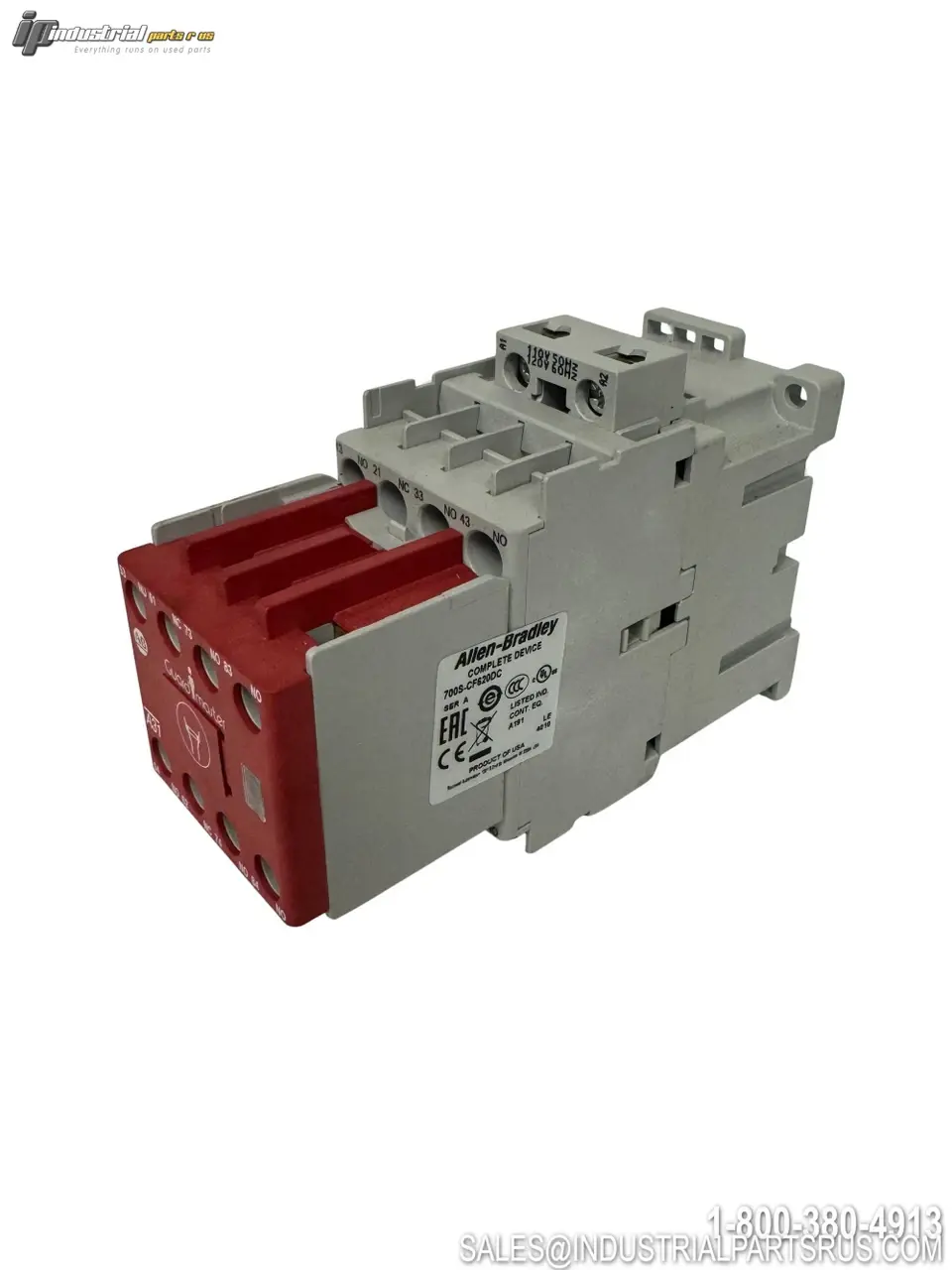

USED ALLEN-BRADLEY 700-CF310*
Overview
Description
The Allen-Bradley 700-CF310* is a 4-pole IEC-rated industrial control relay designed for demanding automation applications. This relay features 3 normally open (NO) and 1 normally closed (NC) contacts, with mechanically linked contacts for reliable performance and gold-plated, bifurcated contacts for low-level switching capability.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
700-CF310*
Product Type
Control Relay
Number of Poles
4
Contact Configuration
3NO + 1NC
Current Rating
25A AC-12 (690V), 25A AC-15 (600V)
Maximum Voltage
690V AC
Coil Type
AC or DC (varies by suffix)
Mounting Type
DIN Rail/Screw
Certifications
IEC 60947-5-1, UL 508, CSA C22.2 No. 14
Dimensions
80.5mm H x 45mm W x 81mm D
Contact Material
Gold-plated, bifurcated
Series
Bulletin 700
Auxiliary Contacts
Side/front mountable
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1551
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: DIN Rail/Screw
Current Rating: 25 A
Application: Industrial Control
Manufacturer: Allen-Bradley
Part Number: 700-CF310*
Shelf: C-14
Model: 700-CF310*
Coil Voltage: AC
MPN: 700-CF310*
Type: Control Relay
