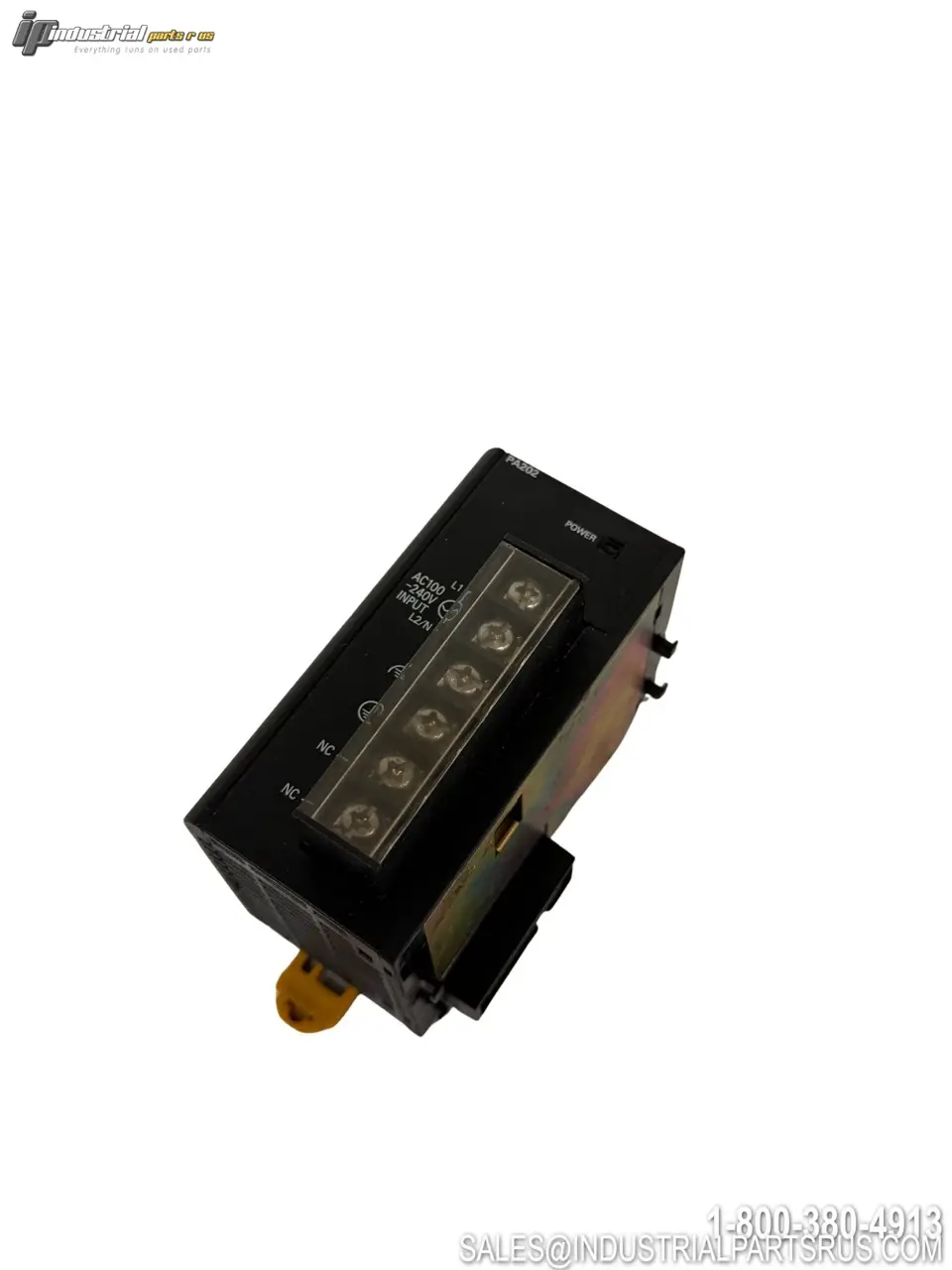

USED OMRON CJ1W-PA202

The Omron CJ1W-PA202 is an AC power supply unit designed specifically for CJ1 series programmable logic controllers. This 14W power supply module provides dual outputs of 5VDC at 2.8A and 24VDC at 0.4A, ensuring stable power distribution throughout the PLC system. The unit features a wide input voltage range of 100-240VAC, making it suitable for global applications without voltage selection requirements.
Specification
Value
Brand
Omron
Model/Part Number
CJ1W-PA202
Product Type
PLC Power Supply
Series
CJ1W-PA
Input Voltage
100-240 VAC
Input Voltage Range
85-264 VAC
Frequency
50/60 Hz
Output Voltage
5VDC (2.8A), 24VDC (0.4A)
Rated Power
14W
5VDC Output Current
2.8A
24VDC Output Current
0.4A
Mounting Type
DIN Rail
Phase
Single-phase (1AC)
Dimensions (H x W x D)
90 x 45 x 81.6 mm
Weight
200g
Operating Temperature
0 to +55°C
Connection Type
Screw Terminal
Features
RUN output status, replacement notification function
We warranty all items for 30 days from date of purchase.

SKU: AI1529
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 2.8A
Manufacturer: Omron
Part Number: CJ1W-PA202
Controller Platform: CJ1
Shelf: E-3 Tub 1
Model: CJ1W-PA202
MPN: CJ1W-PA202
Type: PLC Power Supply
