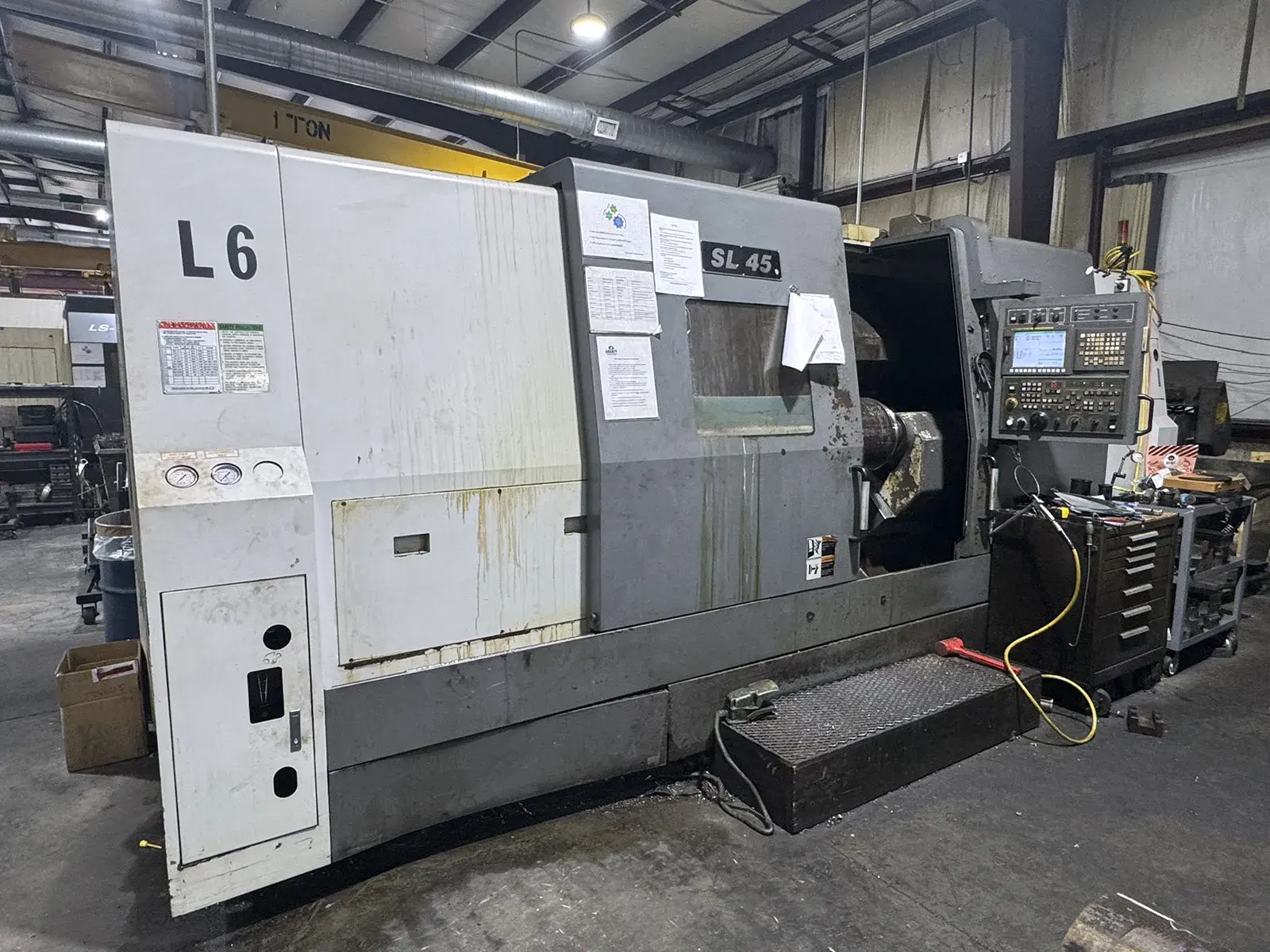

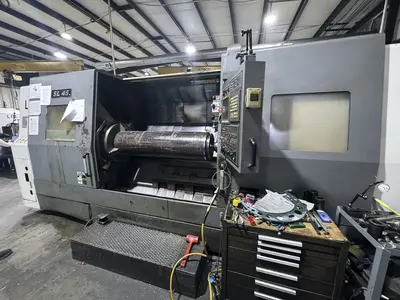

USED 2013 SAMSUNG SL45/2200BB
Overview
The Samsung SL45/2200BB CNC Lathe (2013) with Fanuc Series Oi-TD Control is a heavy-duty CNC turning center built for high-precision, large-diameter machining applications. Engineered for superior torque, rigidity, and reliability, this industrial lathe excels in turning, drilling, and tapping operations on steel, aluminum, titanium, and other demanding materials. Ideal for automotive, aerospace, oil & gas, and heavy equipment manufacturing environments.
Specs
Swing over Bed: 30.5"
Max Turning Diameter: 27.2"
Max Turning Length: 86"
Chuck Size: 24"
X Axis Travel: 12.78"
Z Axis Travel: 88"
Spindle Nose: A2-15
Spindle Motor: 50 HP
Spindle Speed: 1200 RPM
Bar Capacity: 6.5"
Spindle bore dia: 7.125"
Turret Style: 12 Station
Equipped With

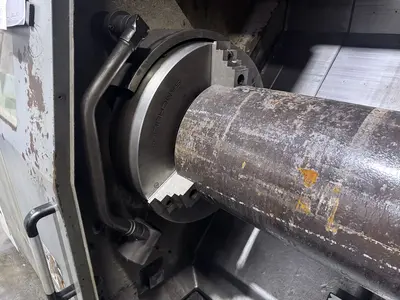

24" Hydraulic 3-Jaw chuck

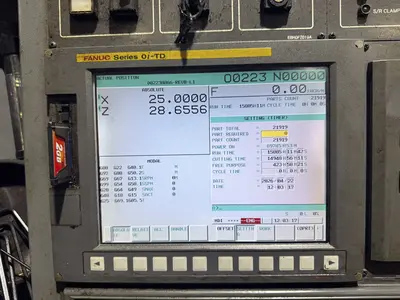

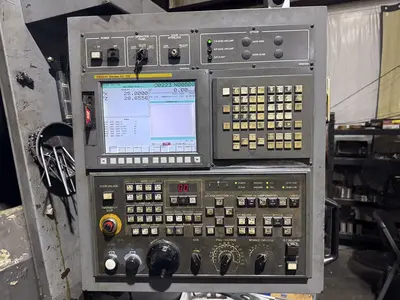

Big Bore Option - 6.5" Spindle Bore Fanuc Oi-TD Series Control
Programmable Tailstock

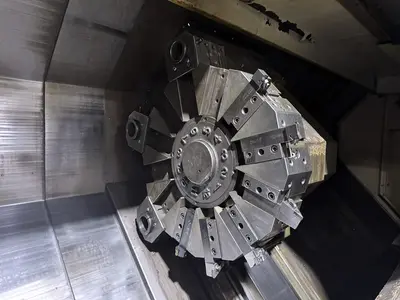

12 Station Turret
Tool Eye

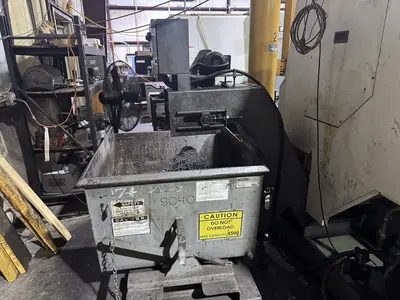

Chip Conveyor
Coolant Pumps
