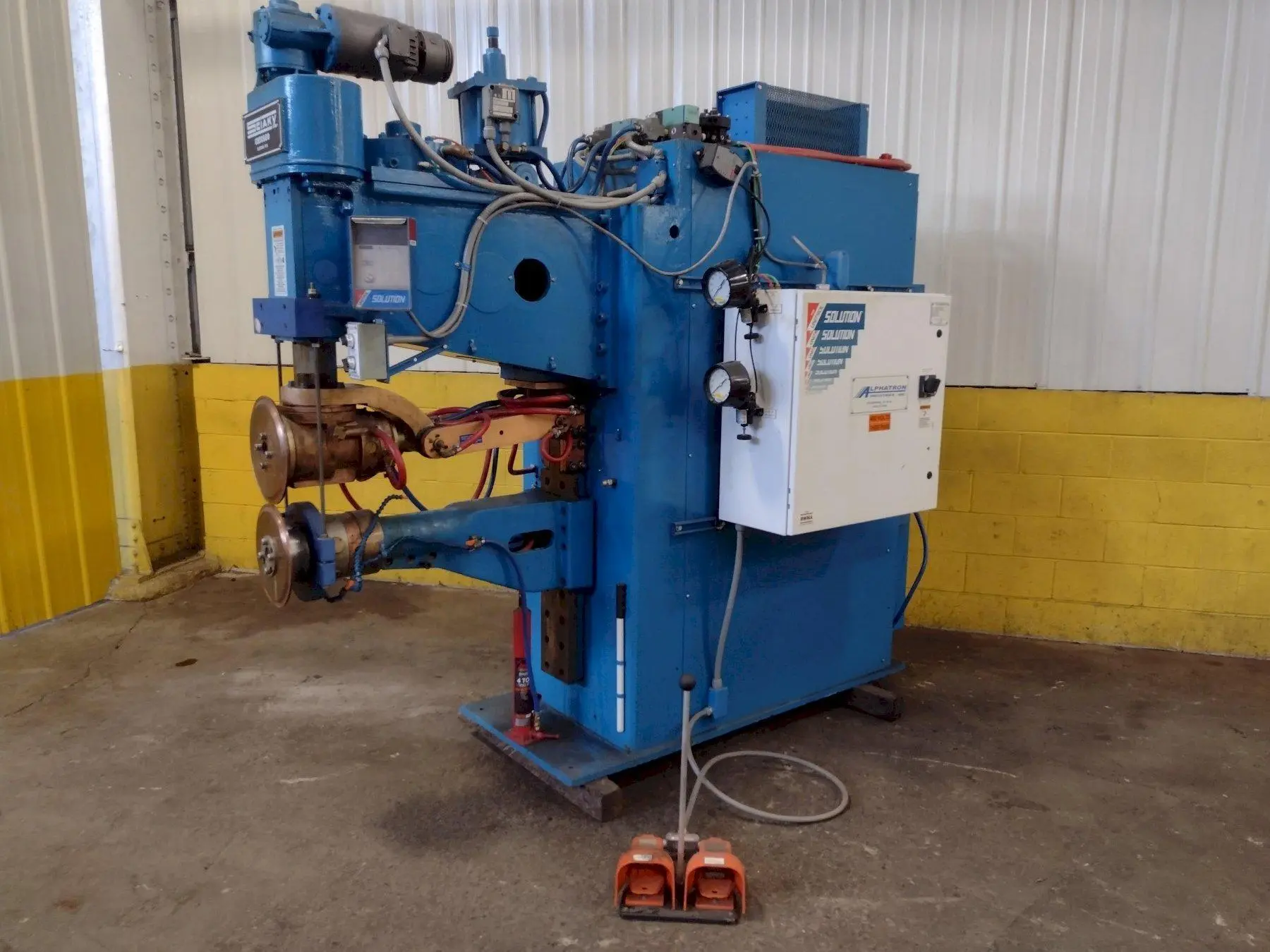

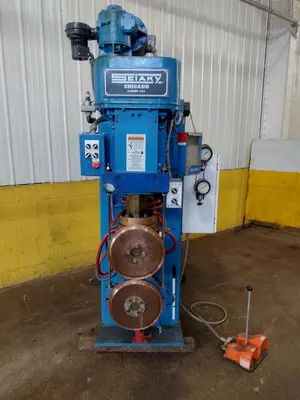

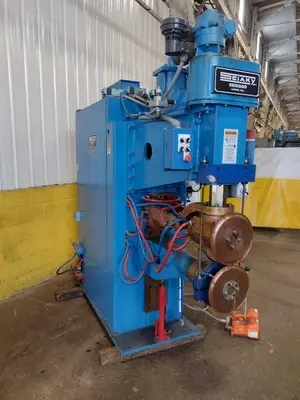

SERIAL ............... 5352MODEL ................ PMM2TC
TYPE ................. SEAM WELDER CIRCUMFERENTIAL
ALUMINUM CAPACITY .... 0.020" TO 0.064"
STAINLESS CAPACITY ... 0.020" TO 0.064"
MILD STEEL CAPACITY .. 0.020" TO 0.125"
THROAT DIMENSIONS .... 10" X 36"
STROKE ............... 5"
PRIMARY VOLTS ........ 460V / 3PH / 60HZFULL LOAD AMPS ....... 100
RATING ............... 100KVA
SECONDARY VOLTS ...... 1.58V TO 3.1V
PEAK SECONDARY AMPS .. 60,000AMPS @ 20 CYCLE PULSE
PRESSURE RATIO ....... 50/1ELECTRODE FORCE ...... 4000 LBS
CYLINDER TYPE RETRACTABLE DIAPHRAGM
CONTROL INTERTRON MC302A
CONTACTORS SCR, WATER COOLED, 1700 AMPS
2600 PIVTRANSFORMER:SERIAL ............... 23754MODEL ................ 6H-14
