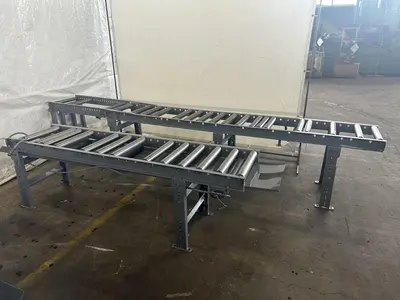

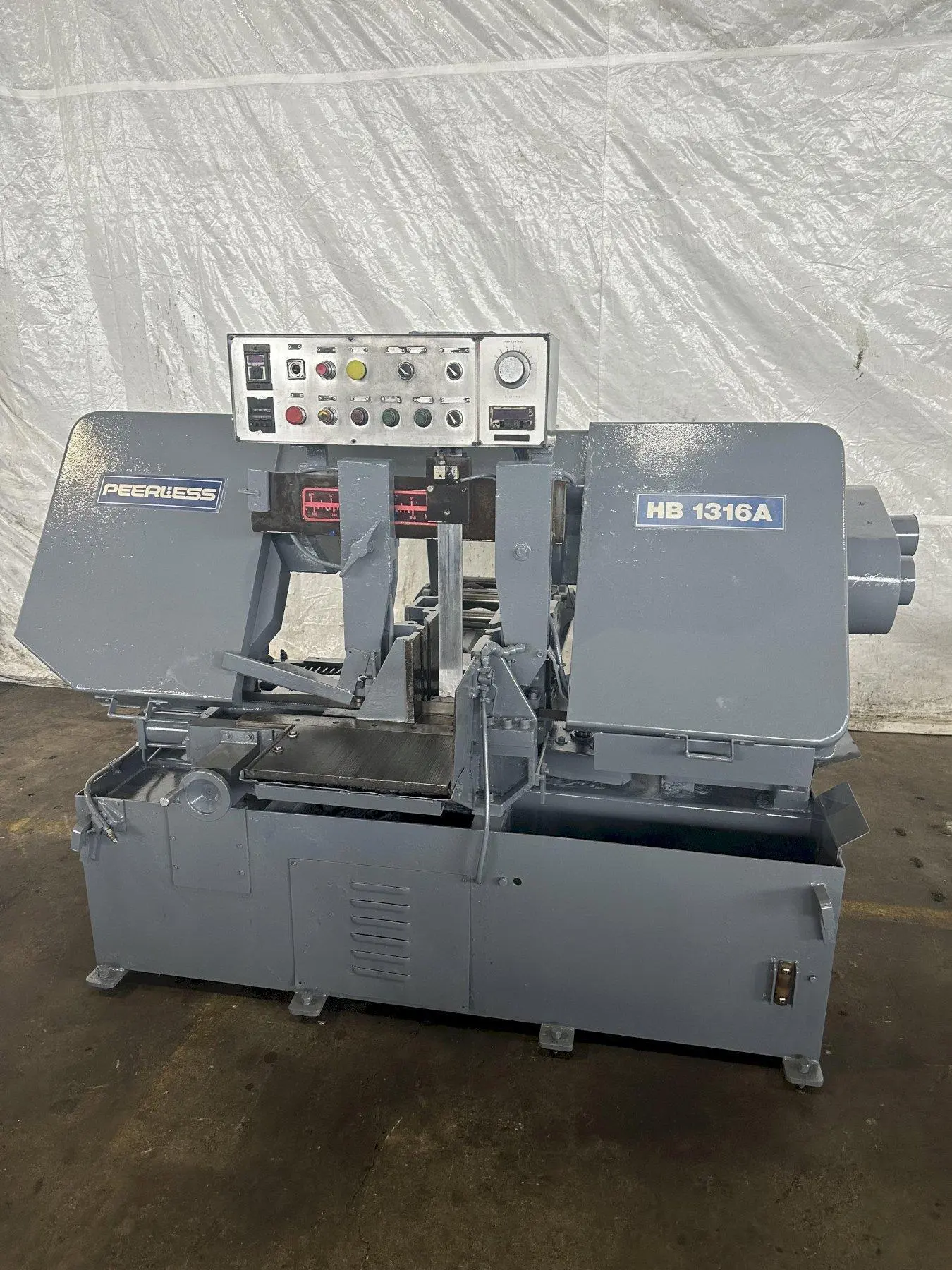

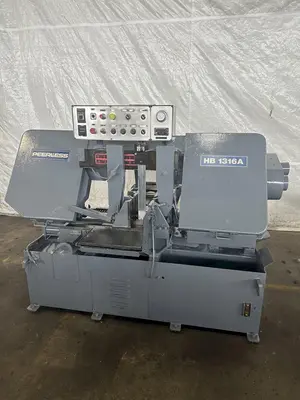

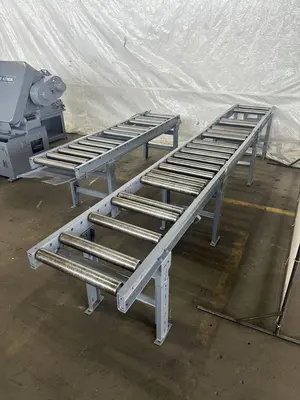

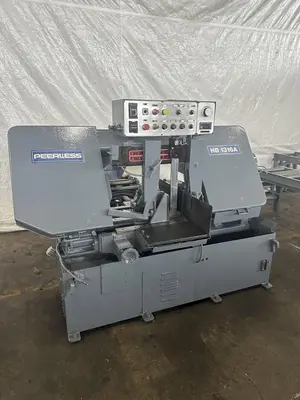

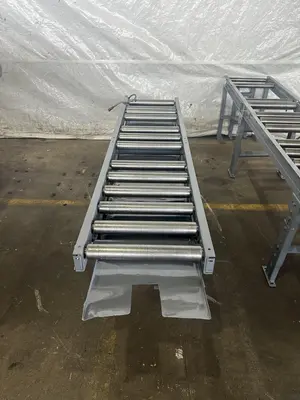

Peerless HB1316A Horizontal Band Saw7.5hp180" Blade13" x 16" Capacity10ft Roller Conveyor Feed20ft Take-away Roller Conveyor
Capacity 13" x 16"
Blade width 1-1/4"
Blade length 180"
Blade thickness .042"
Blade twist angle 55°
Blade drive wheels 21-1/2" drive wheels
Blade speeds 80 – 400 SFPM
Index stroke 20"
Work table height 27-3/4"
Main motor 7.5 HP / 1720 RPM
Volts 220 / 440V (3 phase)
Cycles 60
Amps 20 / 10
Hydraulic motor 1.5 HP
Hydraulic tank capacity 21 gallons
Coolant pump motor 1/4 HP
Coolant reservoir 21 gallons
Approximate dimensions 95" x 83" x 64" high
Approximate weight 5,280 lbs.
