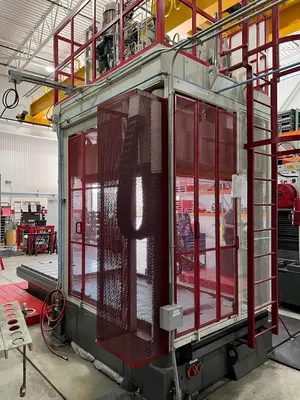

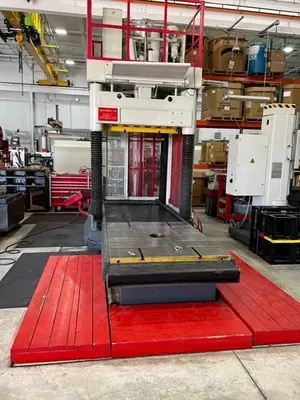

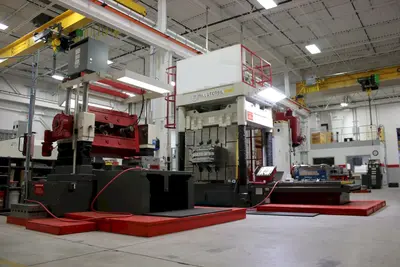

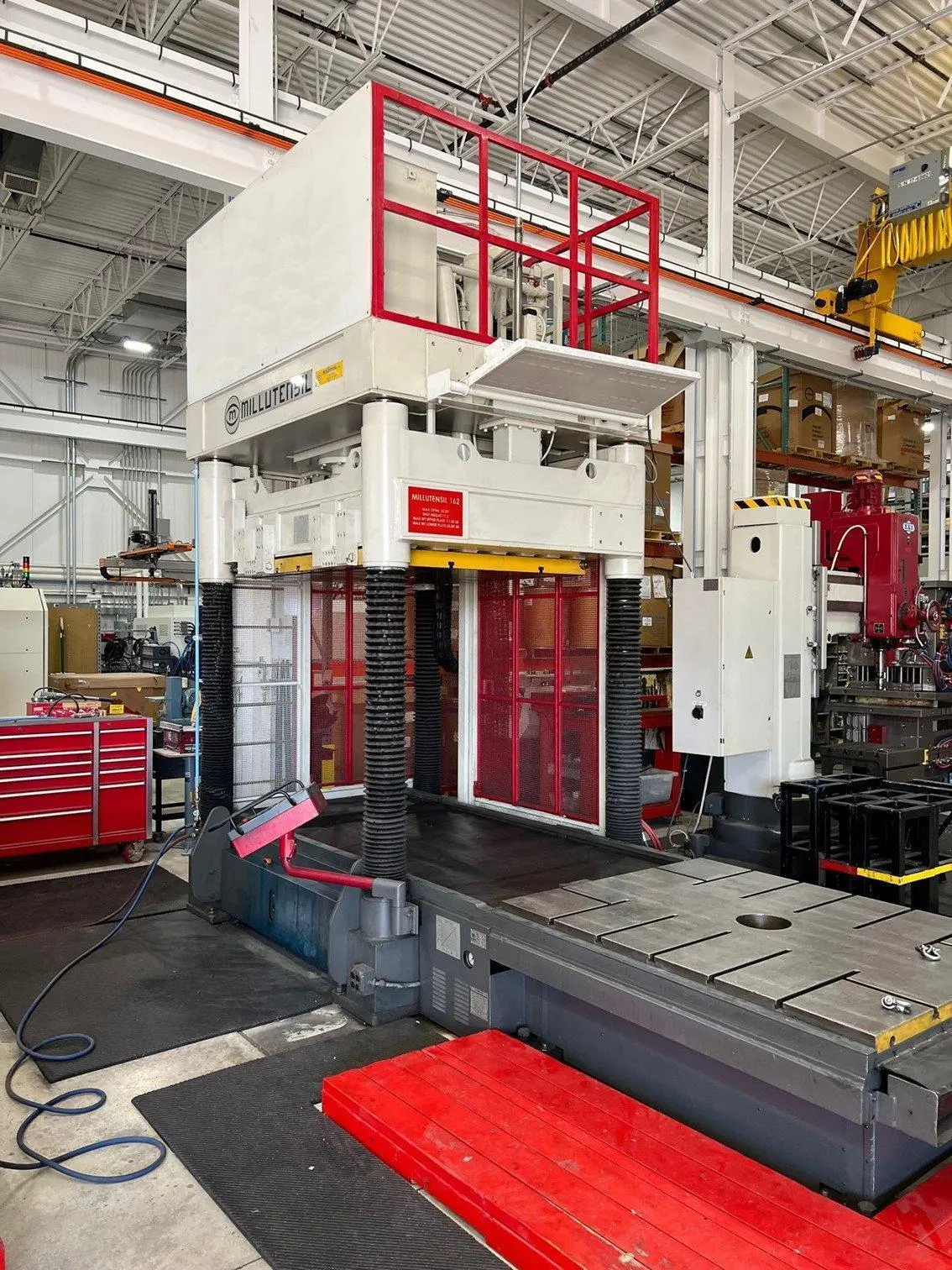

USED MILLUTENSIL MIL162

Year of Mfg: 1995

Capacity: 110 Tons
Plate Working Area: 62.99" L x 51.18" W
Longitudinal Distance Between Columns: 67.32"
Horizontal Distance Between Columns: 53.93"
Maximum Load On Upper Plate: 17,636 lbs.
Maximum Load On Lower Plate: 35,732 lbs.
Lower Working Surface Clearance above Flood Line: 24.01"
Hydraulic Pressure Range: 0 to 200 bar
Maximum Opening Power: 33,721 lbf
Maximum Closing Power: 224,809 lbf
Upper Moving Plate Rotation: 100 Deg., 150 Deg., 180 Deg.
Quick Closing Speed: 157 ipm
Working Speed: 19.6 ipm
Return Stroke Speed: 78.74 ipm
Power Of Upper Main Motor: 12 HP
Power Of Upper Auxillary Motor: 1.47 HP
Lower Motor Power: 7.37 HP
Total HP: 24

Overall Weight of Press: 42,000 lbs.
Electrics: 440 V, 60 Hz. 3 Phase
