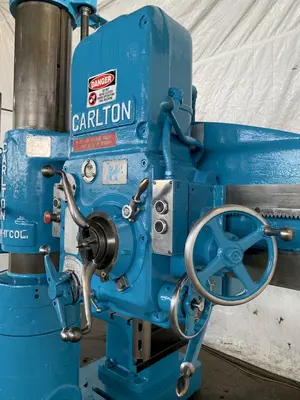

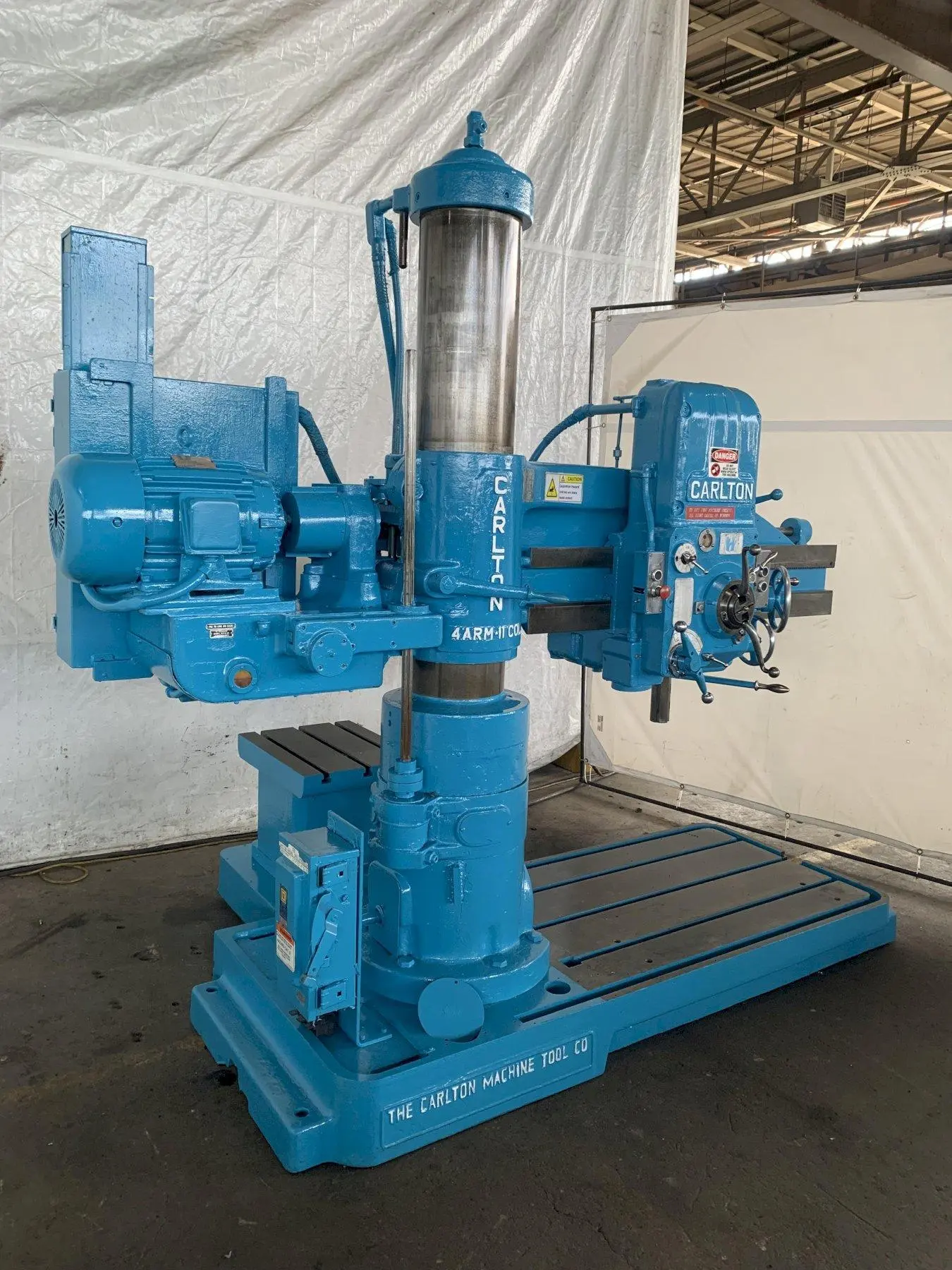

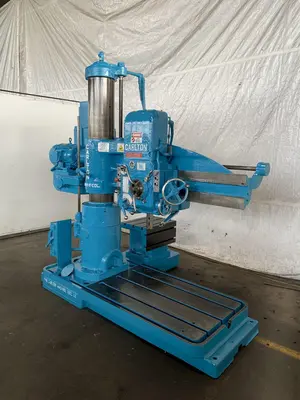

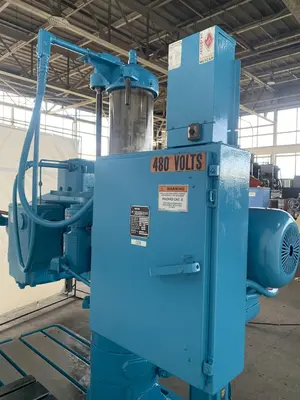

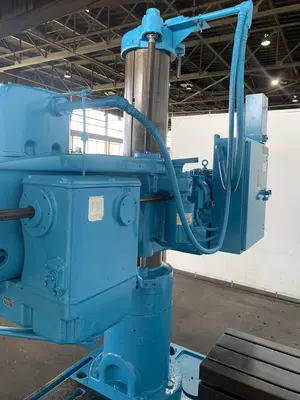

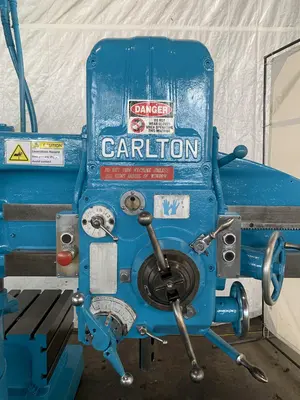

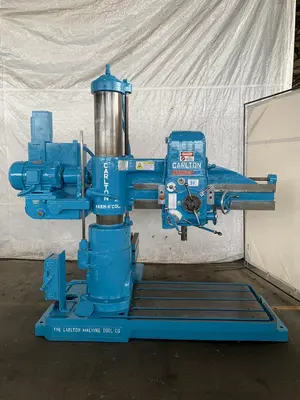

USED 1986 CARLTON 1A

MODEL ............................. 1A
SIZE .............................. 4' X 11"

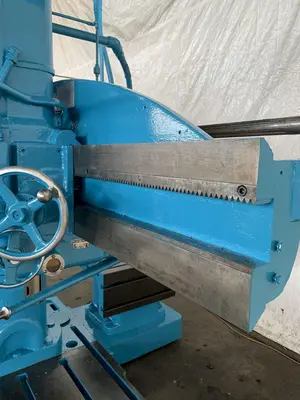

ARM LENGTH ........................ 4'

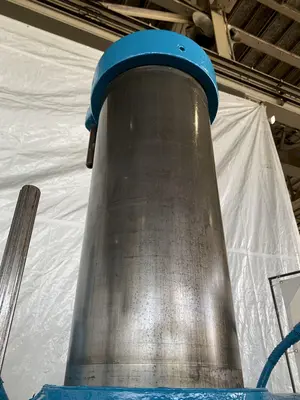

COLUMN DIAMETER ................... 11"

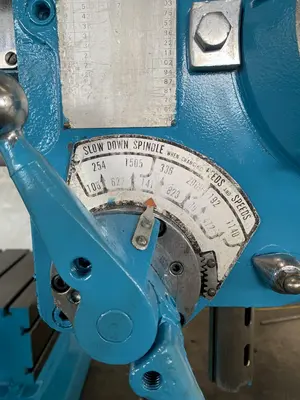

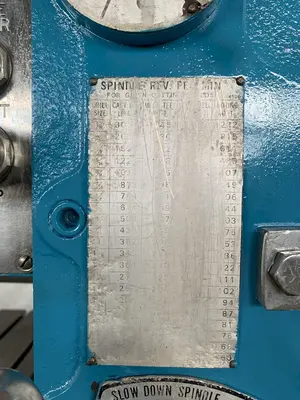

SPINDLE SPEEDS .................... (12) 120 - 3000 RPM
FEEDS ............................. (6) .006" - .025"

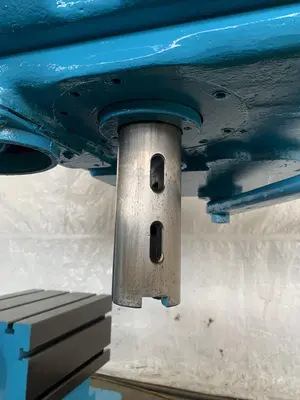

DIAMETER OF SPINDLE ............... 2-1/2"
SPINDLE TAPER ..................... #4 MT
SPINDLE TRAVEL .................... 12"
AREA OF BASE ...................... 53" X 31"
COLUMN TO SPINDLE ................. 9" TO 48"
SPINDLE TO BASE ................... 14" TO 53"

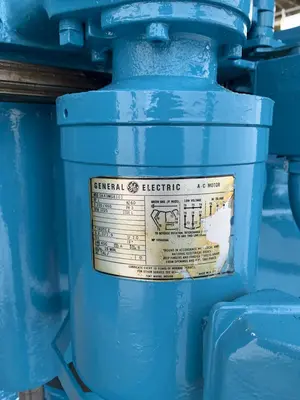

POWER ELEVATION ................... YES

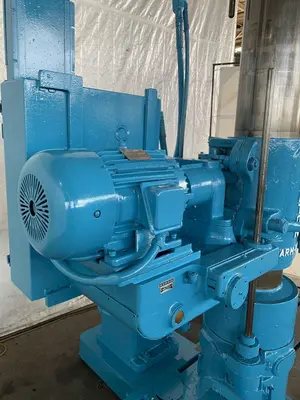

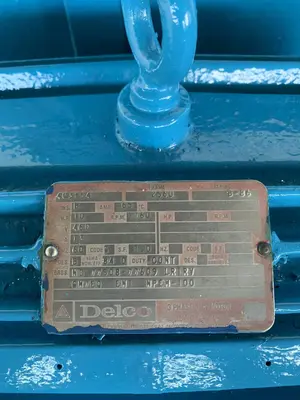

SPINDLE MOTOR ..................... 3 HORSEPOWER

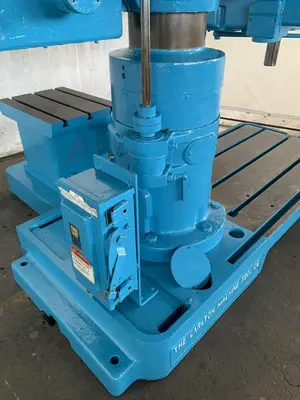

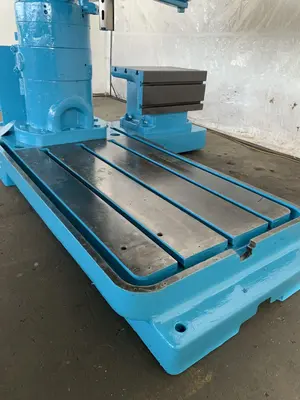

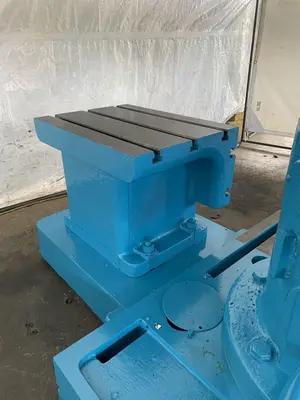

L-BASE DESIGN BASE
