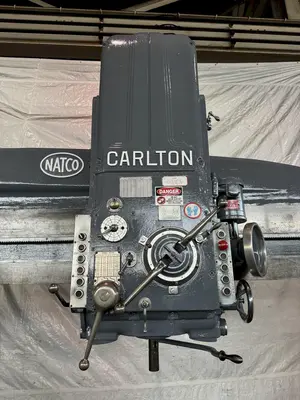

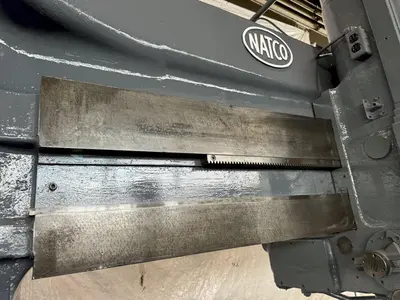

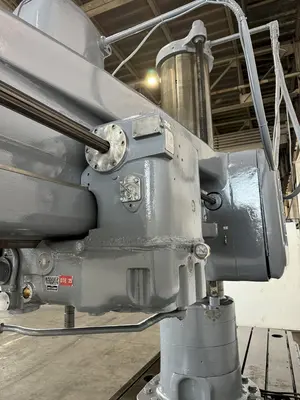

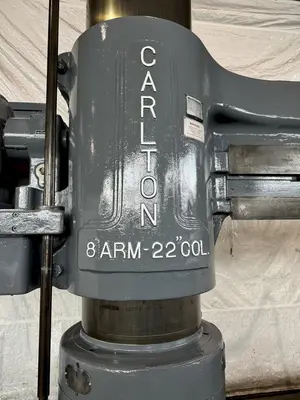

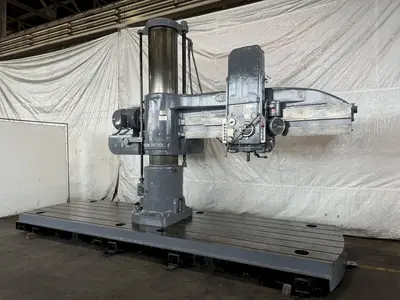

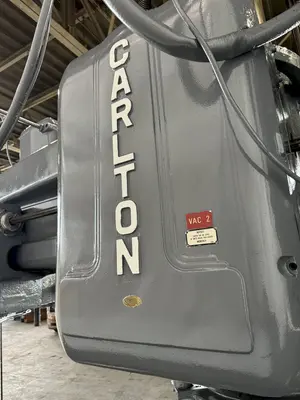

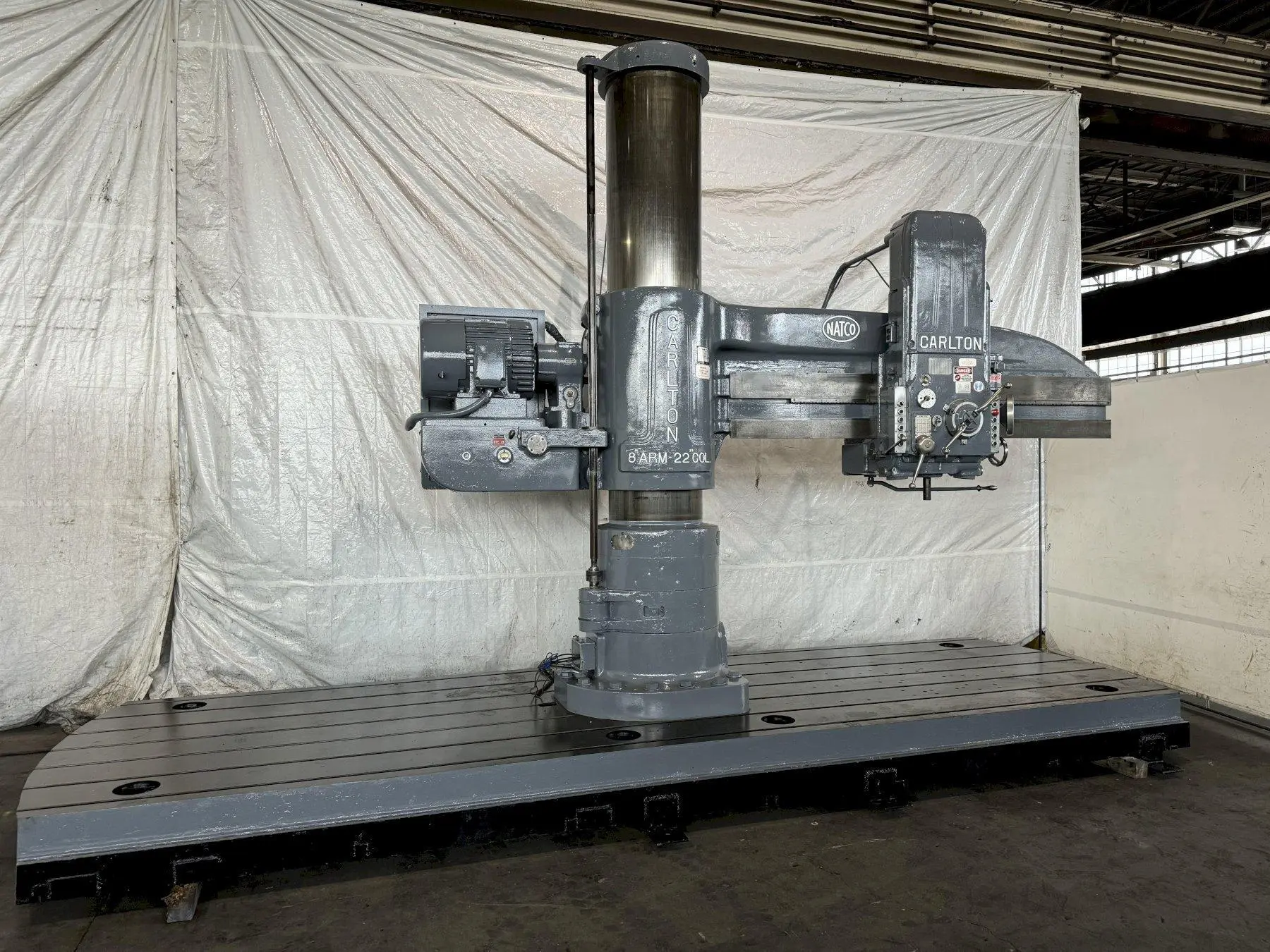

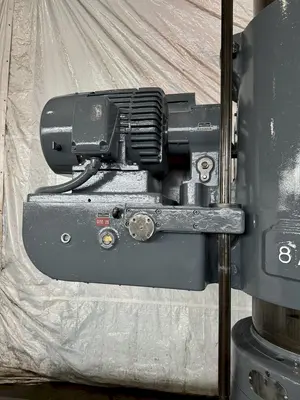

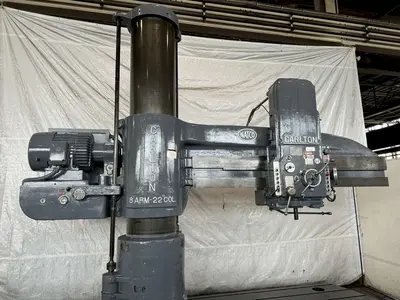

USED 1986 CARLTON 5A
Overview
Specs

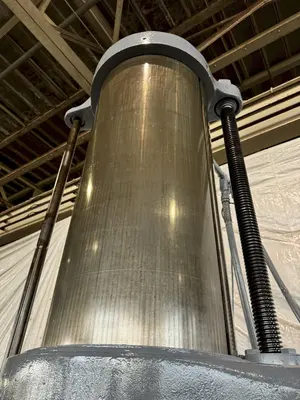

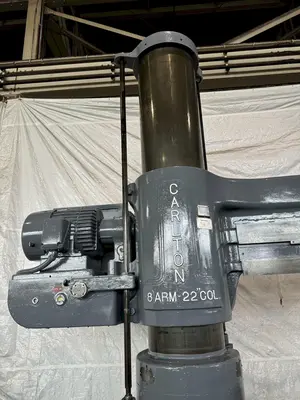

SERIAL.............................. 6099MODEL............................... 5AARM LENGTH ......................... 8'COLUMN DIAMETER .................... 22"VERTICAL TRAVEL OF SPINDLE IN HEAD . 20"SPINDLE SPEEDS (36) ................ 15 TO 1,500 RPMFEEDS (18) ......................... .004 TO .125 IPRTHREADS ............................ 8,11 1/2, 13 AND 14 TPIMAXIMUM DISTANCE SPINDLE TO COLUMN . 109-3/4"MINIMUM DISTANCE SPINDLE TO COLUMN . 27"MAXIMUM SPINDLE TO BASE ............ 78"MINIMUM SPINDLE TO BASE ............ 14-1/2TRAVEL OF ARM ON COLUMN ............ 43-1/2"TRAVEL OF HEAD ON ARM .............. 82-3/4"TAPER IN SPINDLE ................... #6MTDIAMETER OF SPINDLE ................ 4"AREA OF BASE ....................... 50" X 101" X 10" HIGHL-SHAPED EXTENSION/ATTACHMENT ...... 30.5" X 36" X 10" HIGHMAIN MOTOR ......................... 25 HPSHIPPING DIMENSIONS HEAD DOWN ...... 14'10"L x 60"W x 144"HWITH L-BASE EXTENSION .............. 7'6"W APPROXIMATE WEIGHT ................. 30,500 LBS.

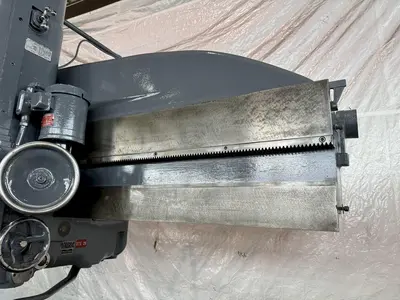

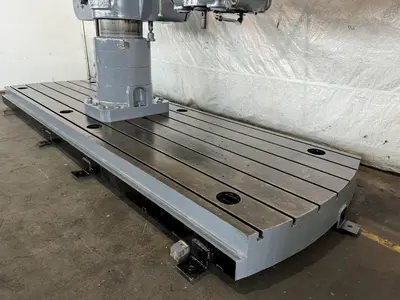

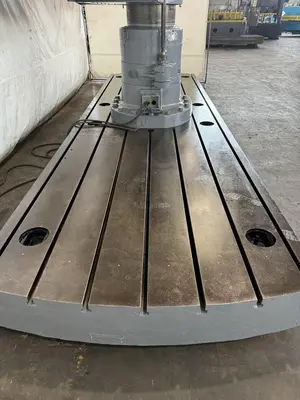

EQUIPPED WITH:- 96" HALF MOON BASE- POWER ELEVATION & CLAMPING OF ARM ON COLUMN- POWER HEAD CLAMPING- POWER TRAVERSE OF HEAD ON ARM- TAPPING- COOLANT IN BASE- 25 HP MAIN MOTOR
