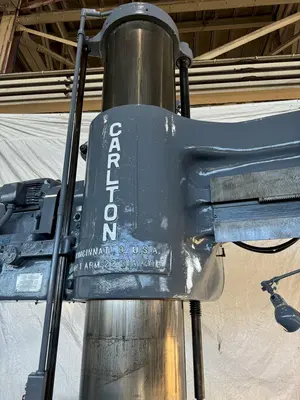

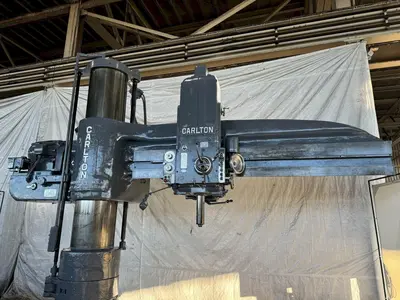

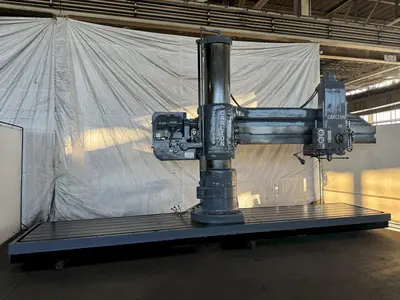

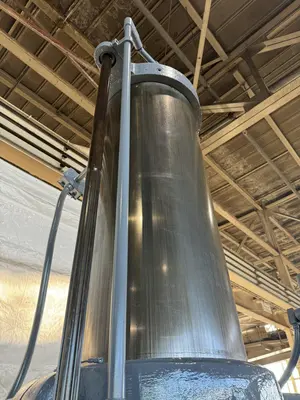

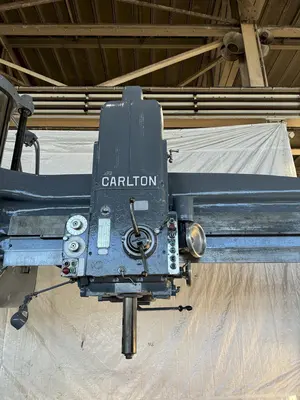

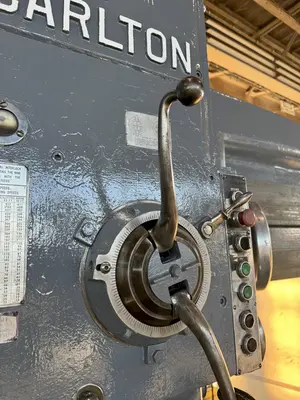

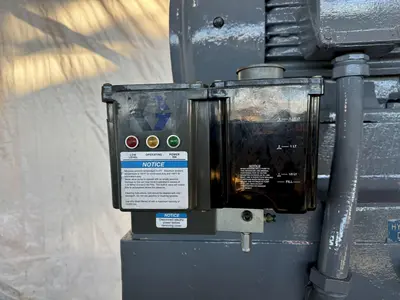

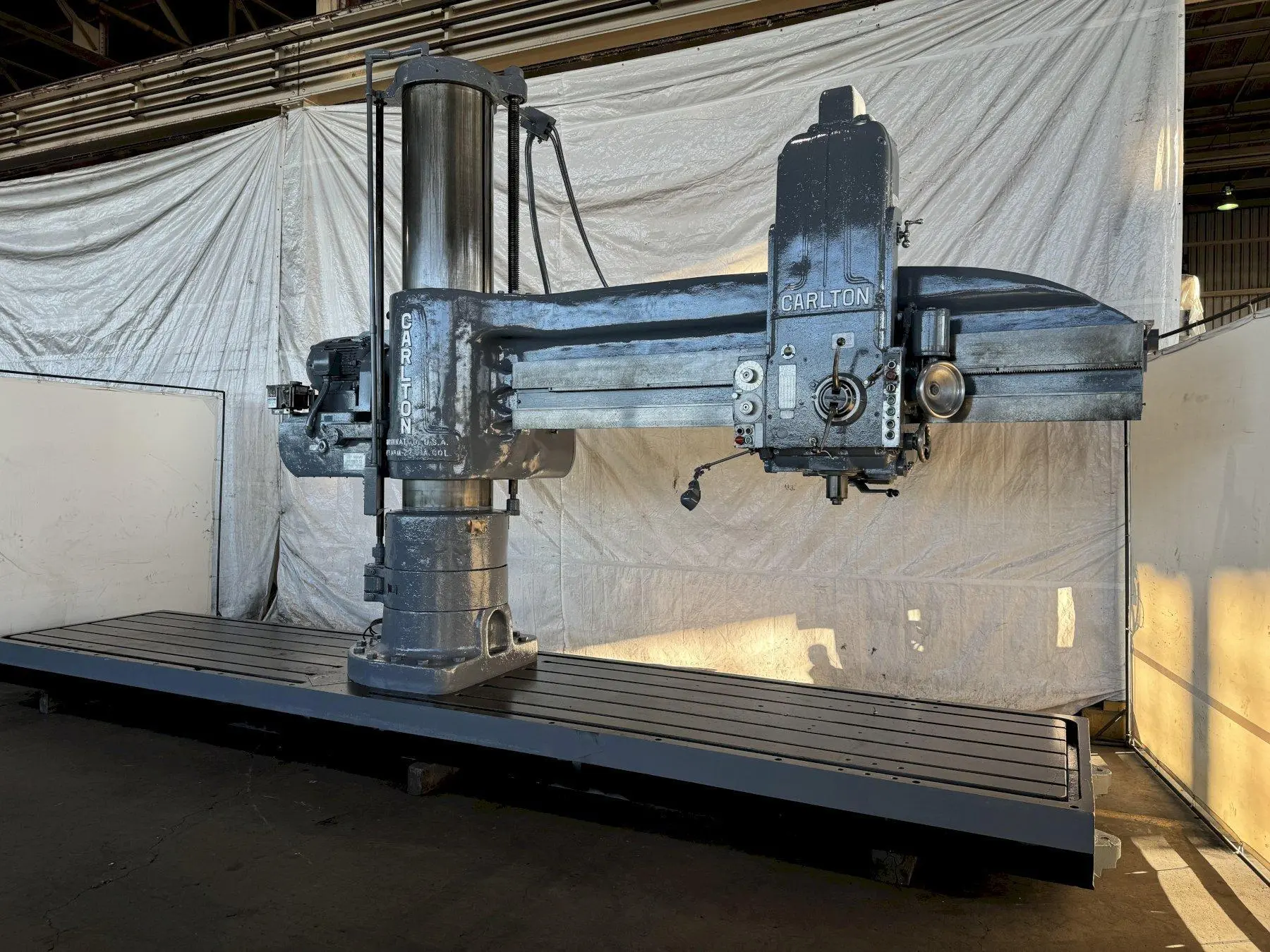

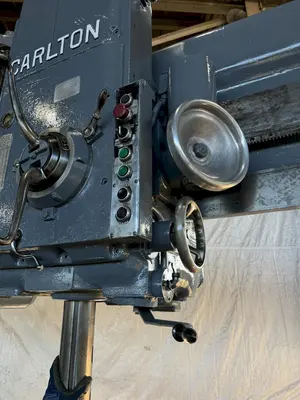

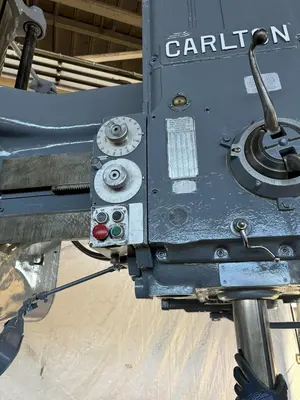

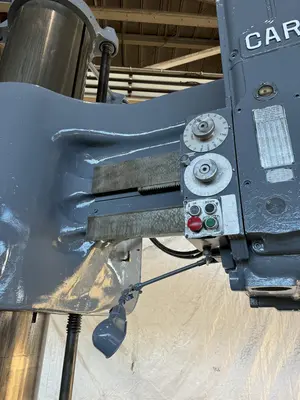

USED CARLTON 5A

SERIAL................................ 4847MODEL ................................ 5A

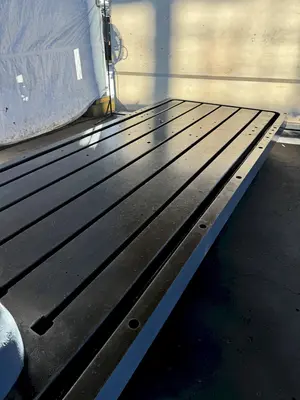

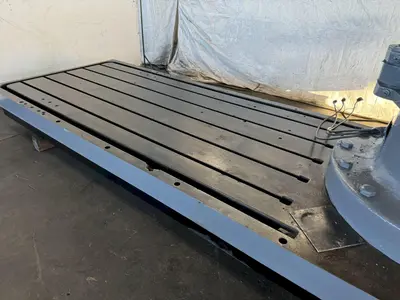

AREA OF BASE ......................... 130" X 58"

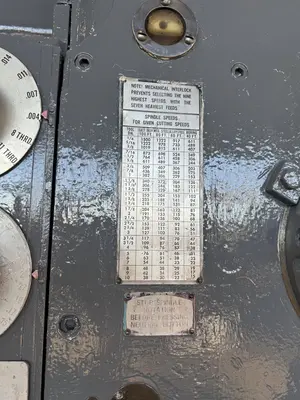

SPINDLE SPEEDS ....................... (8) 8 TO 800 RPM
THREADS .............................. (5) 6, 7, 8, 11-1/2, 18
DISTANCE SPINDLE TO BASE ............. 18-1/2" TO 98" MAXIMUM
SPINDLE TRAVEL ....................... 24"
FIXED BASE DRILLS .................... 14'
TAPER IN SPINDLE ..................... #6 MT
DIAMETER OF SPINDLE .................. 4"

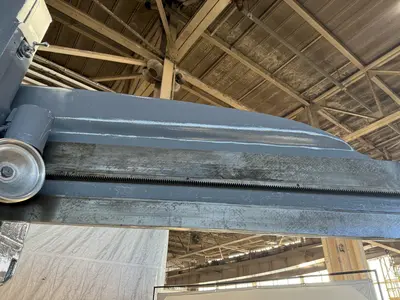

TRAVEL OF ARM ON COLUMN .............. 54"
TRAVEL OF HEAD ON ARM ................ 105"
POWER HEAD CLAMPING .................. YES
POWER HEAD TRAVERSE .................. YES
POWER ELEVATION ...................... YES
COOLANT .............................. YES

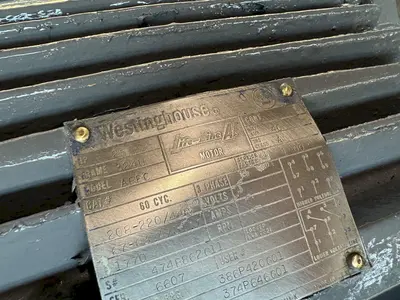

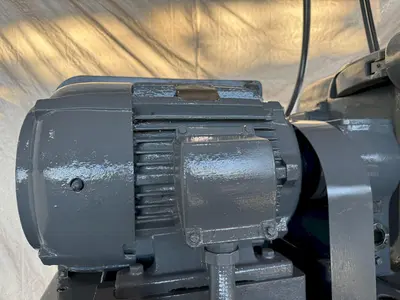

MAIN MOTOR ........................... 30 HORSEPOWER
