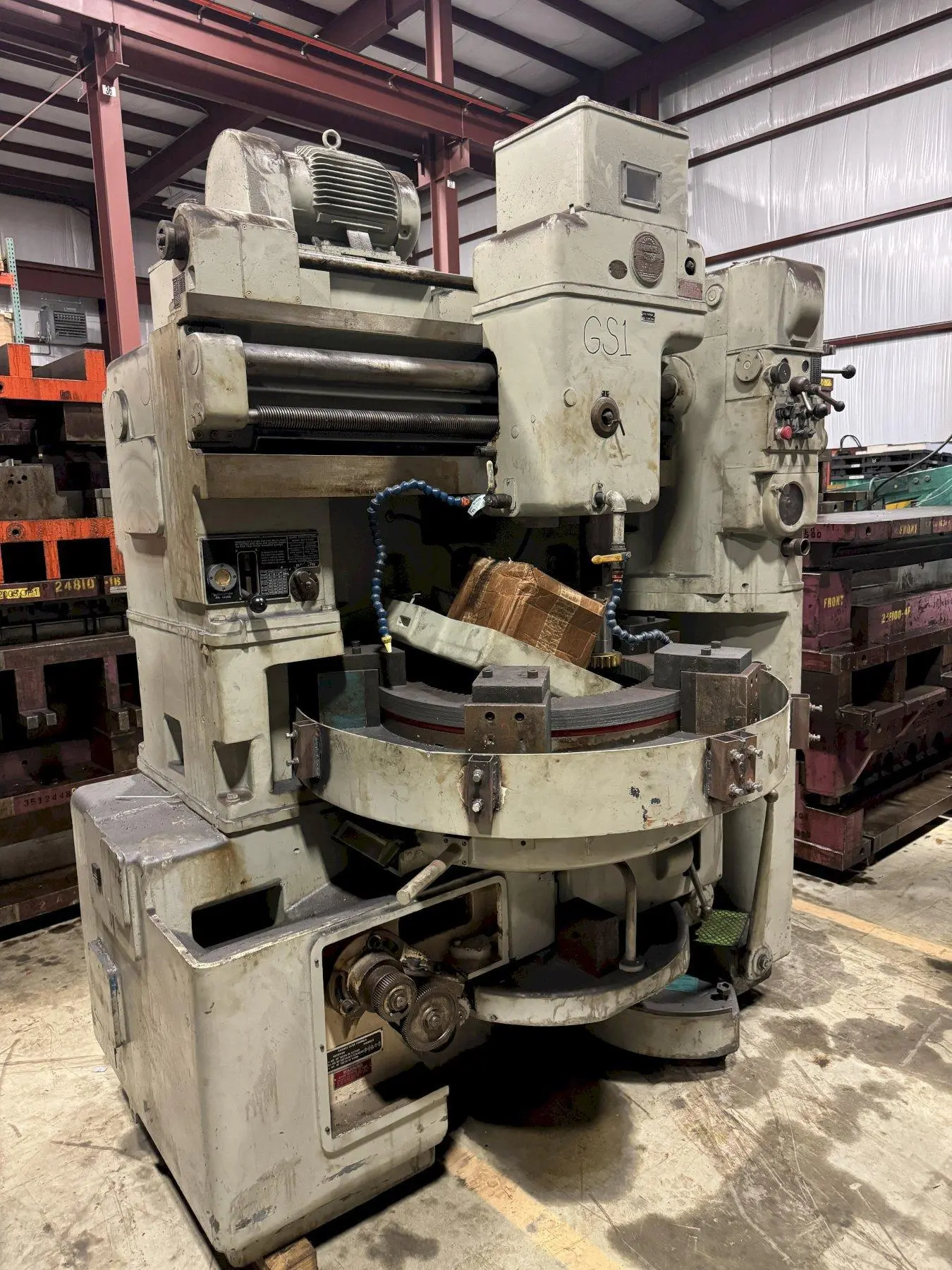

USED FELLOWS 36–6

MAXIMUM INTERNAL PITCH DIAMETER....: 36"MAXIMUM EXTERNAL PITCH DIAMETER....: 40"MAXIMUM SPUR DIAMETRAL PITCH.......: 3MAXIMUM HELICAL DIAMETRAL PITCH....: 4/5MAXIMUM INTERNAL FACE WIDTH........: 8"MAXIMUM EXTERNAL FACE WIDTH........: 8"STROKE LENGTH......................: 6"MAXIMUM HELIX ANGLE................: 45° [W/ STANDARD GUIDES]HOLE IN TABLE DIAMETER.............: 6"CUTTER SPINDLE TAPER...............: #16 JARNOSTROKE SPEEDS......................: 12STROKE PER MINUTE RANGE............: 18-300RISER..............................: 12"EQUIPPED WITH......................: SPUR GUIDE                                     COOLANT PUMP                                     WORKLIGHT
