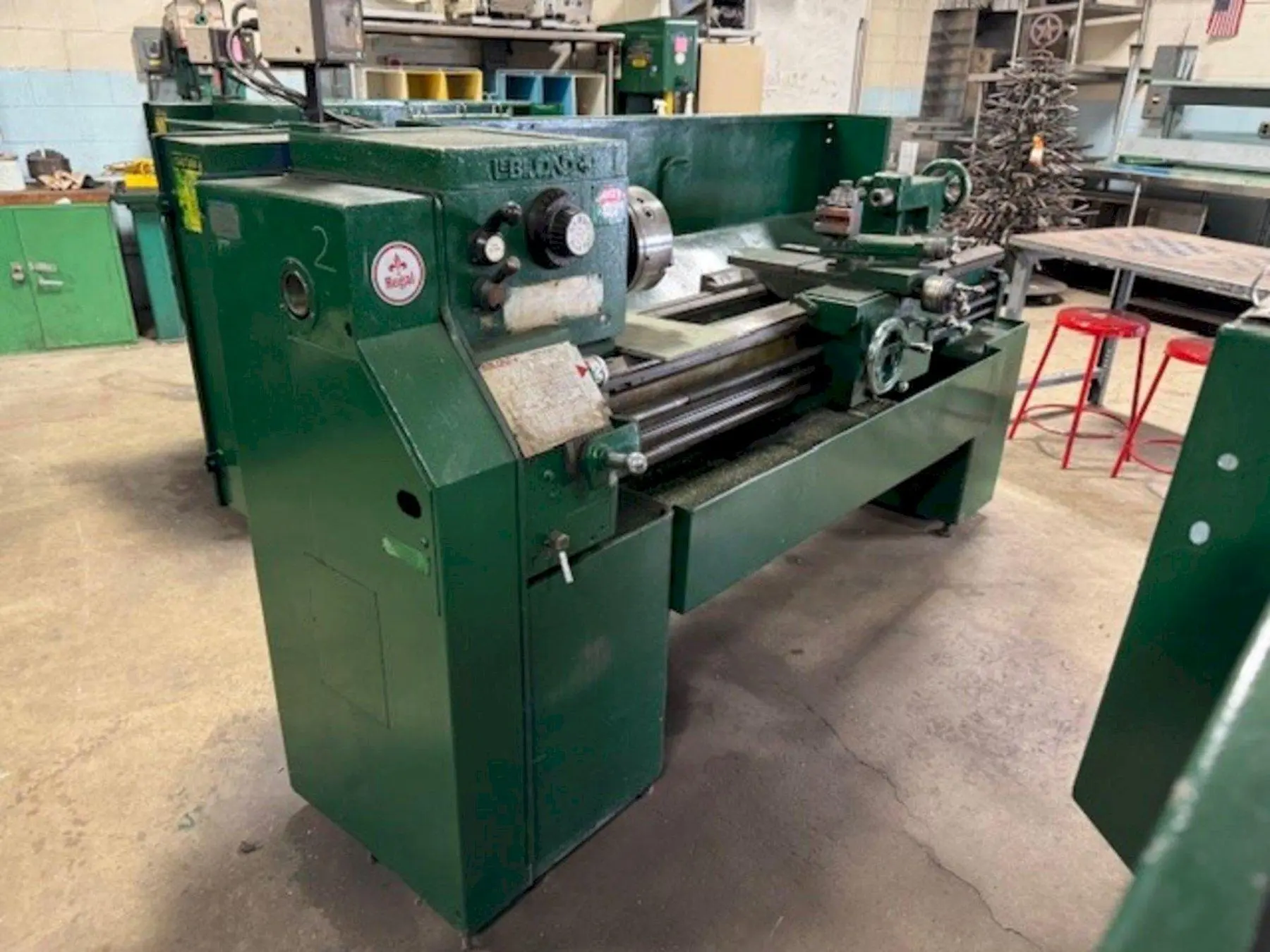

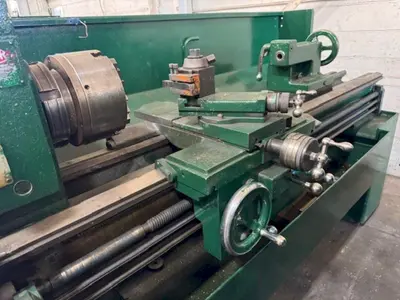

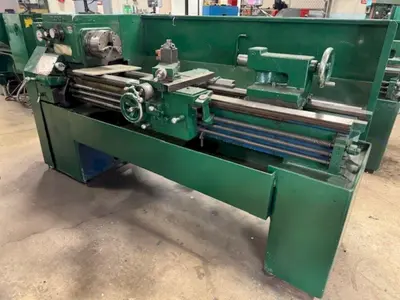

SERIAL........................ 11C-1196-2474MODEL ........................ Regal
SWING OVER WAYS .............. 16"
SWING OVER CROSS SLIDE ....... 10"
DISTANCE BETWEEN CENTERS ..... 54"
SPINDLE SPEEDS ............... (12) 25-1800
FEEDS......................... (48) .0020 - .116 IPR
THREADS (INCH) ............... (48) 2 - 112 TPI
DIAMETER OF SPINDLE HOLE ..... 2"
3 JAW CHUCK .................. 8"
THREAD DIAL .................. Yes
HARD WAYS .................... Yes
SPINDLE FORWARD AND REVERSE .. Yes
CHIP PANS .................... Yes

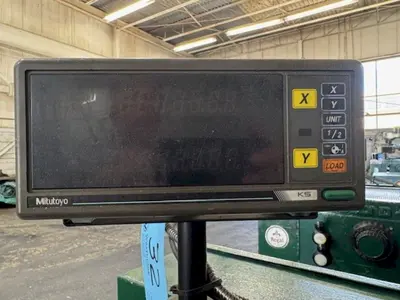

MOTOR ........................ 3 HPVOLTAGE ...................... 208/230/460DIGITAL READ OUT.............. YES
