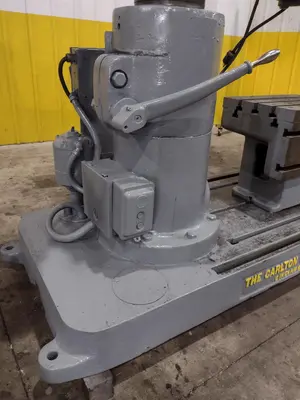

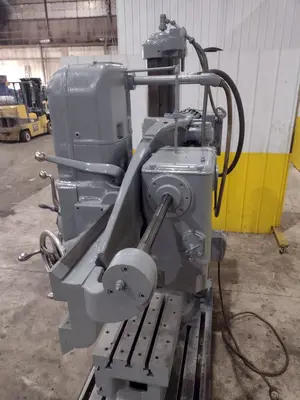

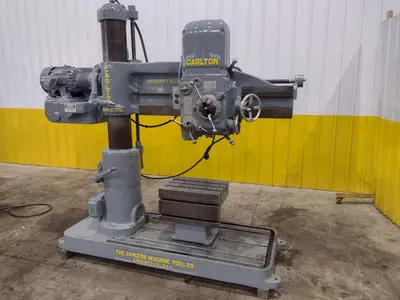

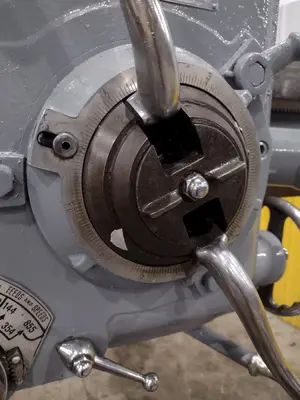

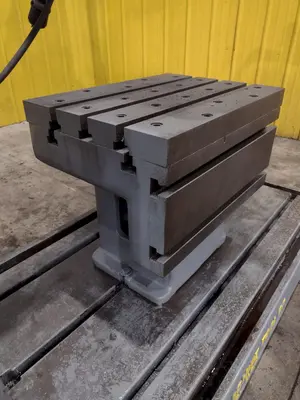

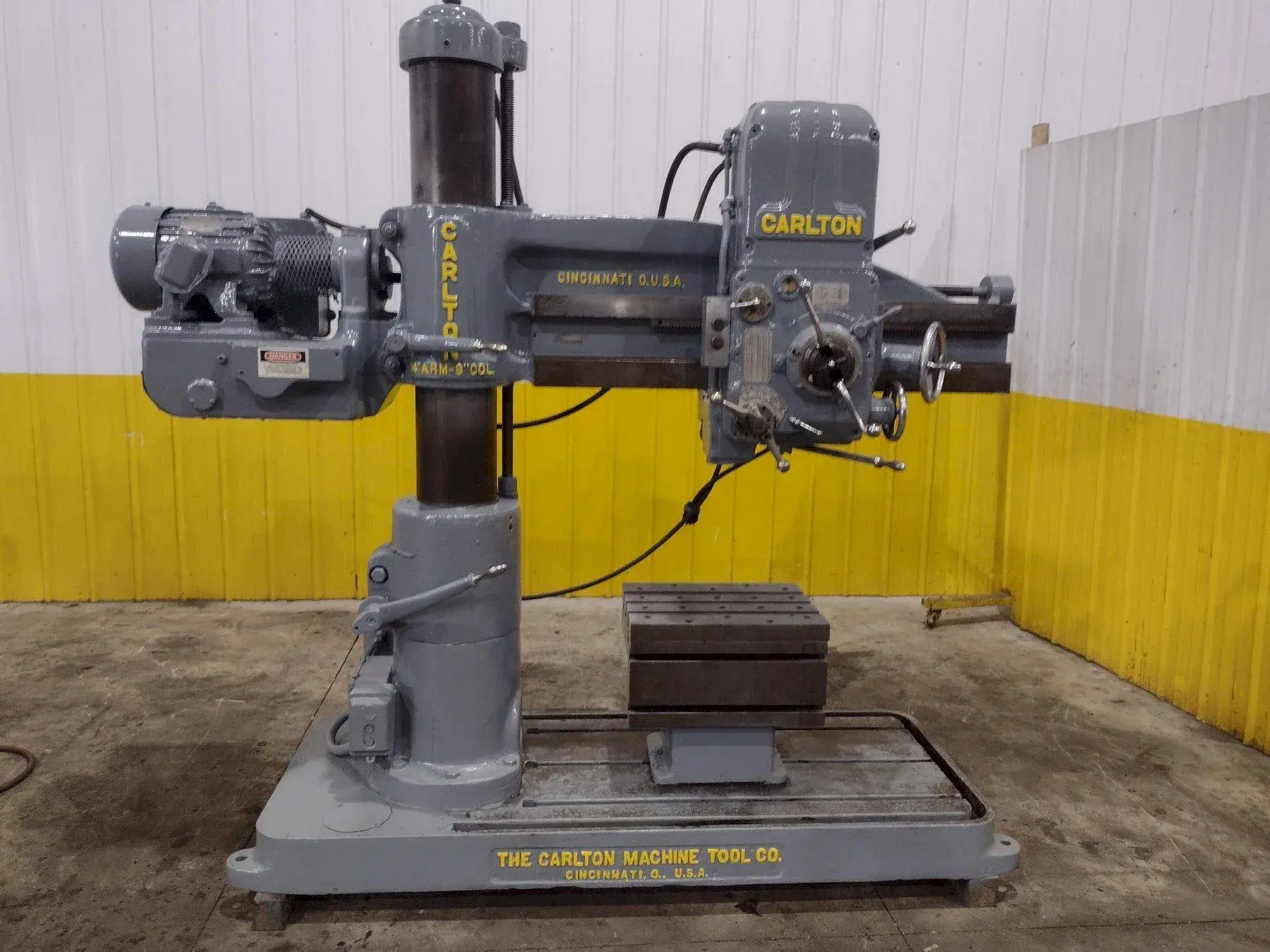

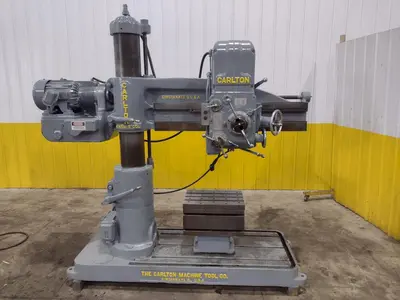

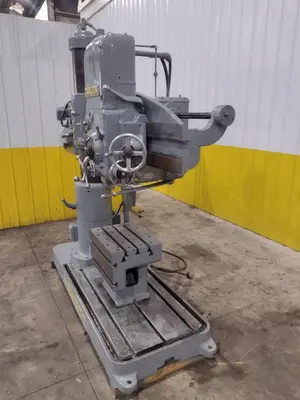

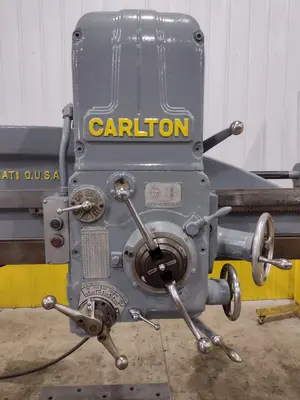

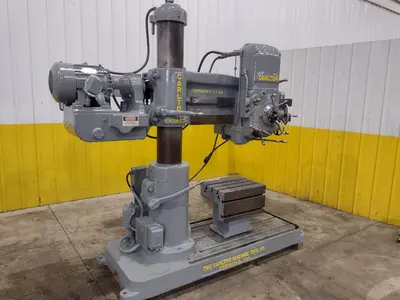

USED CARLTON 1A

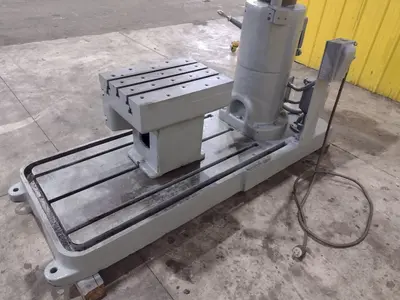

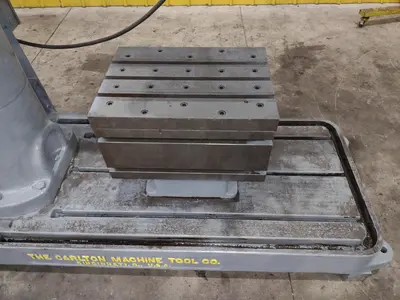

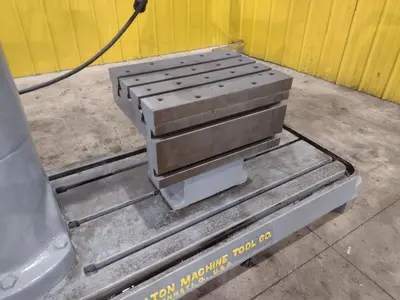

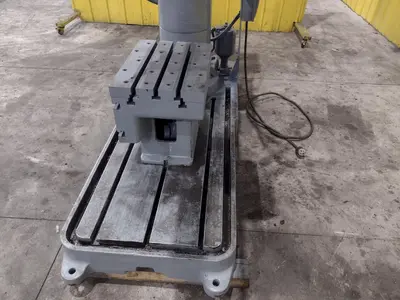

WORKING AREA OF BASE.....: 54" X 36"

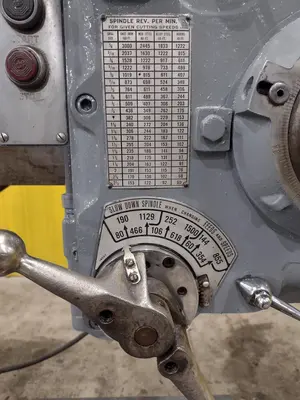

SPINDLE RPM..............: (12) 80 TO 1500

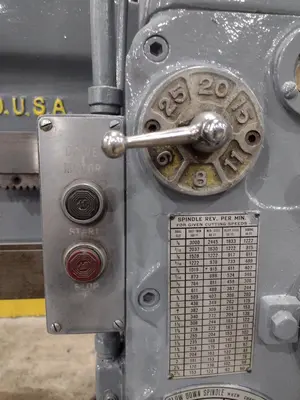

FEEDS....................: (6) .004 TO .025 IPR
SPINDLE TRAVEL...........: 12"
TAPER IN SPINDLE.........: #4MT

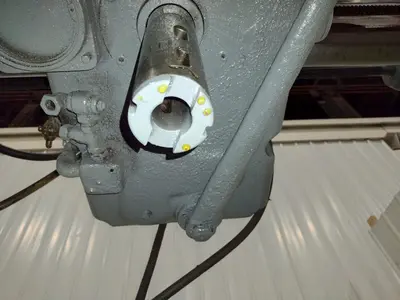

DIAMETER OF SPINDLE......: 2-1/2"
DISTANCE SPINDLE TO BASE.: 26" MINIMUM, 54" MAXIMUM
TRAVEL OF ARM ON COLUMN..: 28-1/2"
TRAVEL OF HEAD ON ARM....: 39"
POWER COLUMN CLAMP.......: YES
POWER ELEVATION..........: YES

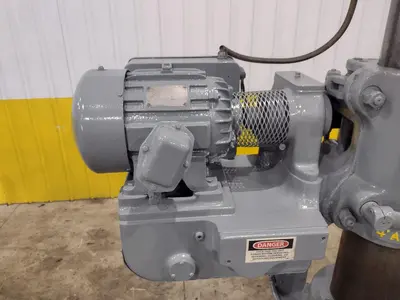

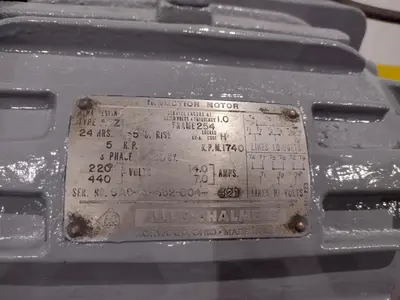

MOTOR HORSEPOWER.........: 5
