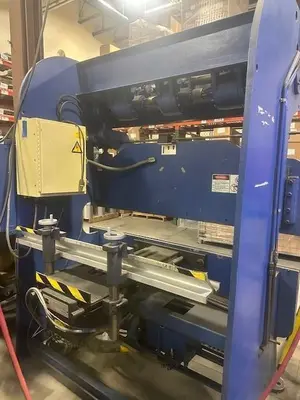

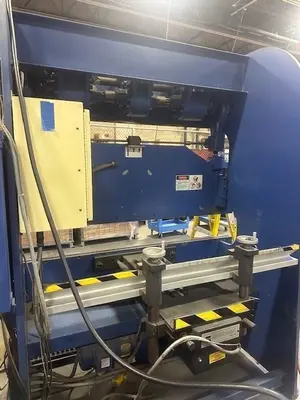

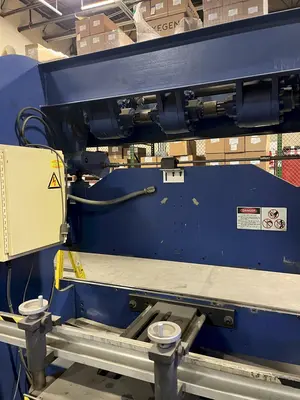

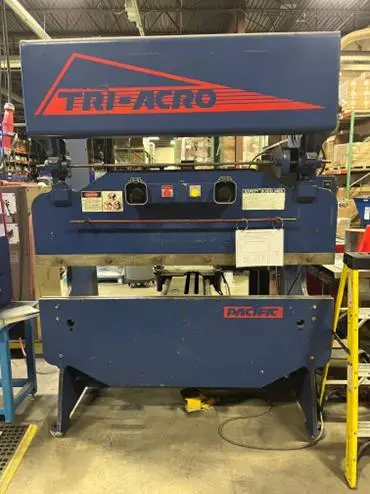

35 TON x 6' PACIFIC/TRI-ACRO HYDRA-MECHANICAL BRAKE, MODEL 35-6

35 TON x 6 FT PACIFIC/TRI-ACRO HYDRA-MECHANICAL BRAKE
MODEL 35-6
SPECIFICATIONS:
CAPACITY .............................. 6' X 14 GA.
        .............................. 4' X 12 GA.
        .............................. 34" X 10 GA.
TONNAGE ............................... 35 TONS
PUNCHING CAPACITY ..................... 23.31 TONS
OVERALL BED LENGTH .................... 72"
DISTANCE BETWEEN HOUSINGS ............. 62"
STROKE LENGTH ......................... 2"
RAM ADJUSTMENT ........................ 3"
SHUT HEIGHT ........................... 9"
THROAT DEPTH .......................... 9"
APPROXIMATE DIMENSIONS ............ 72" X 40" X 92" H
APPROXIMATE WEIGHT ................ 5,500 LBS
MOTOR: 460 V / 3 PH / 60 HZ.
EQUIPPED WITH:

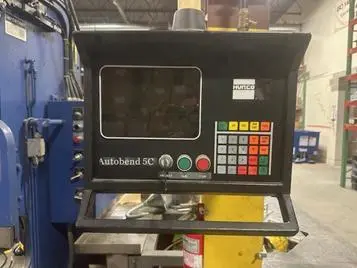

HURCO AUTOBEND 5C CNC BACK GAUGE
STROKE SELECTION - SET UP, INCH OR AUTO RETURN
DUAL PALM BUTTONS
FOOT SWITCH
VARIABLE SPEED (HI - SLO)
FOB:  ORIGIN
