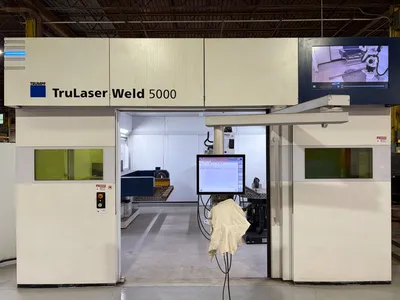

USED 2018 TRUMPF TRULASER WELD 5000

The TruLaser Weld 5000 is a turn-key system for automatic laser welding. You can weld deep and strong seams or nicely rounded, smooth seams with flexibility using one system. FusionLine also enables you to connect components with gaps. The versatile system can be precisely tailored to meet your needs with different component positioners.

MAX. LASER OUTPUT: 3,000 WATTS
AXIS DATA:

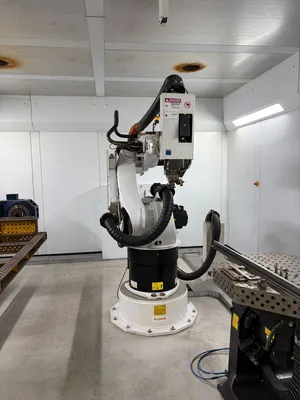

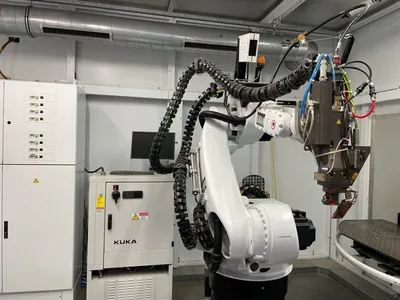

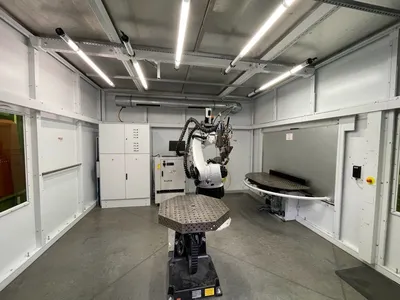

- TYPE: HIGH ACCURACY ROBOT
- NUMBER OF AXES: 6
- NOMINAL CARRYING CAPACITY: 154 LBS
- REPEATABILITY: ± 0.002"

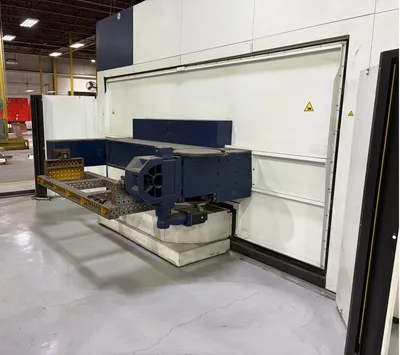

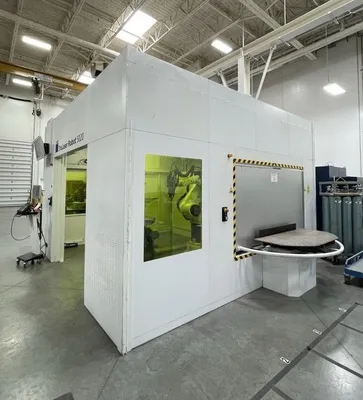

ROTATE AND TILT POSITIONER:
- MAX. WORK AREA: 78.74" x 39.37" x 47.24"
- MAX. LOADING: 881 LBS
ROTARY TABLE WITH TURNING AXIS:
- MAX. WORK AREA (⌀ ROTATING DRUM): 47.24"
- MAX. WORK AREA (LENGTH): 102.36"
- MAX. LOADING (PER SIDE): 1,653 LBS
TURNOVER POSITIONER:
- MAX. WORK AREA (⌀ ROTATING DRUM): 78.74"
- MAX. WORK AREA (LENGTH): 157.48"
- MAX. LOADING (PER SIDE): 2,204.6 LBS
COMPACT ROTARY TABLE WITH 3D CLAMPING PLATE (RECTANGLE):
- MAX. WORK AREA (⌀): 118.11"
- MAX. WORK AREA (HEIGHT): 49.21"
- MAX. LOADING (PER SIDE): 1,322.77 LBS
- MAX. LOAD MASS MOMENT OF INERTIA: 1,322.77 LBS*ft2
- ROTATION AREA OF ROTARY TABLE: ± 180°
- ROTATION TIME OF ROTARY TABLE (FOR 180°): 3.7 SEC
- INSERTION HEIGHT: 32.67"
COMPACT ROTARY TABLE WITH VERTICAL ROTARY AXES:
- MAX. WORK AREA (⌀): 118.11"
- MAX. WORK AREA (HEIGHT): 49.21"
- MAXIMUM LOADING (PER SIDE): 881 LBS
- MAX. LOAD MASS MOMENT OF INERTIA FOR RING-SHAPED ROTARY INDEXING TABLE: 1,322.77 LBS*ft2
- ROTATION AREA OF ROTARY TABLE ± 180°
- ROTATION TIME OF ROTARY TABLE (FOR 180°): 3.7 SEC
- ROTATION AREA OF VERTICAL ROTARY AXES: ± 190°
- ROTATION TIME OF ROTARY AXES (FOR 180°): 2.5 SEC
- MAX. LOAD MASS MOMENT OF INERTIA FOR VERTICAL ROTARY AXES: 791.45 LBS*f2
- INSERTION HEIGHT: 34.84"

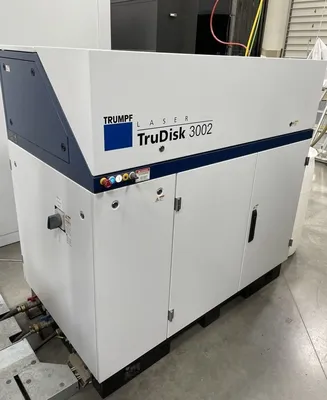

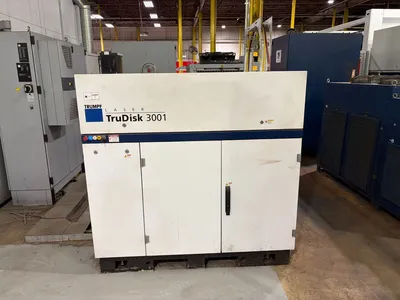

TRUMPF TRUDISK 3002 FIBER ENGINE
WELDLINE MODULE
WELDING OPTIC
LINEAR NOZZLE, AERATOR NOZZLE
ARGON CONNECTION FOR SHIELDING GAS

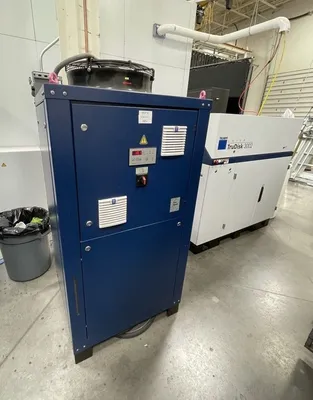

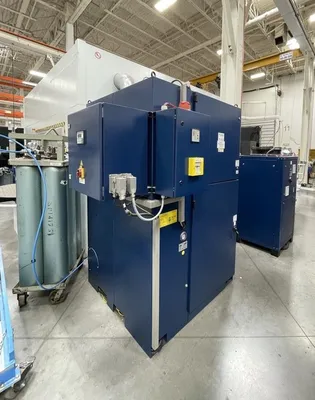

CHILLER

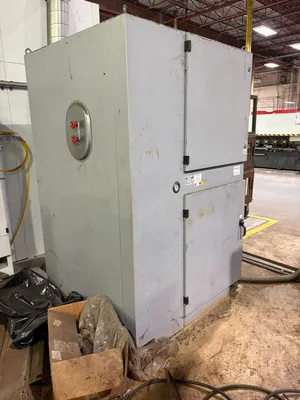

DUST COLLECTOR
SAFETY ENCLOSURE
TEACHLINE CONTROL
FUSIONLINE
CNC PROGRAMMABLE SHIELDING GAS NOZZLE
SHIELDING GAS SUPPLY - NITROGEN
TILT TABLE
DUAL STATION TABLE WITH ROTATIONAL AXIS WITH STEPPED LATTER FRAME
STATIS MONITOR WITH DATA PACKAGE
ONE WINDOW IN EACH FRONT CABIN ELEMENT
