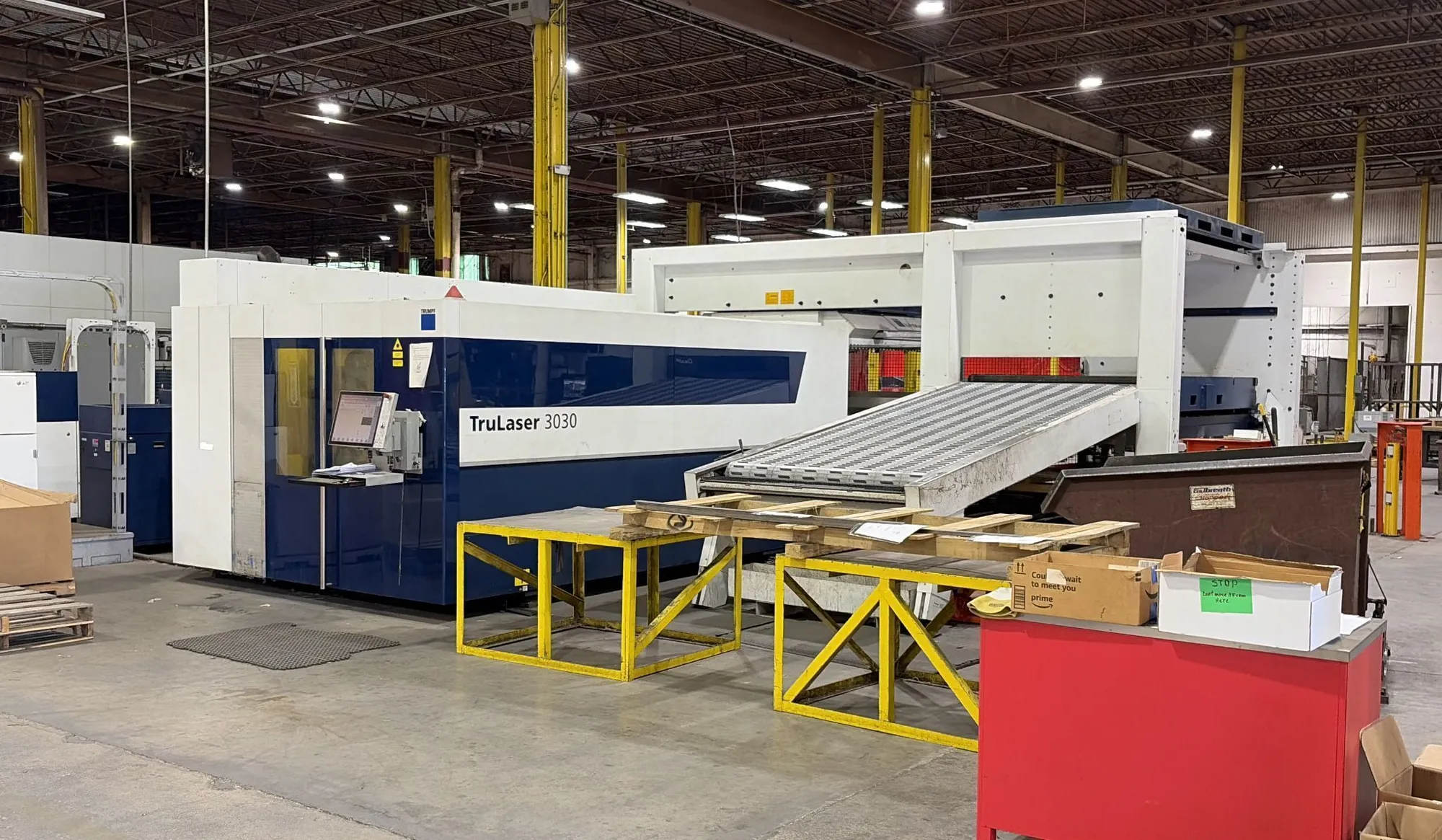

USED 2018 TRUMPF TRULASER 3030 FIBER
Overview
Description
TruLaser 3030 Fiber; the fast machine for all your cutting tasks. With the TruLaser 3030 Fiber's high level of flexibility and cost-effectiveness, you can cut all sheet thickness quickly and profitably. The TruFiber solid-state laser enables the processing of non-ferrous metals and also gives you a productivity advantage in thin and thick sheet metal. BrightLine fiber guarantees the highest edge quality and facilitates part removal. Numerous other functions ensure the highest reliability and performance possible.
Specifications
| Sheet-W | 1,500 mm | 59.055" |
|---|---|---|
| Sheet-L | 3,000 mm | 118.11" |
| Wattage | 6000 w | 6,000 W |
| IPM | 140 mpm | |
| X-Travel | 3,000 mm | 118.11" |
| Y-Travel | 1,500 mm | 59.055" |
| Z-Travel | 115 mm | 4.5276" |
| Type | FIBER | FIBER |
LASER TYPE: FIBER
MAX. LASER OUTPUT: 6,000 WATTS
TABLE SIZE: 60" x 120"
TRAVELS:
- X-AXIS: 120"
- Y- AXIS: 60"
- Z-AXIS: 4.5"
MAX. WORKPIECE WEIGHT: 2,425 LBS (3,968 WITH HEAVY DUTY PALLET CHANGER)
MAX. SPEED SIMULTANEOUS: 6,693 IPM
MAX. CUTTING MATERIAL THICKNESS:
- MILD STEEL: 1"
- STAINLESS STEEL: 1"
- ALUMINUM: 1"
- COPPER: 0.40"
- BRASS: 0.40"
AVERAGE POWER CONSUMPTION DURING PRODUCTION: 18KW
APPROX. DIMENSIONS: 364"(L) x 242"(W) x 87"(H)
APPROX. MACHINE WEIGHT: 25,794 LBS
Equipped With
SIEMENS SINUMERIK 840D SL CONTROL
AUTOMATIC NOZZLE CHANGER
BRIGHTLINE
AUTO PALLET SHUTTLE
DUST COLLECTOR
CHILLER
LIFTMASTER COMPACT
SORTMASTER
HOURS AS OF 5/11/2026:
- OPERATING: 58,460
- LASER ON: 19,326
