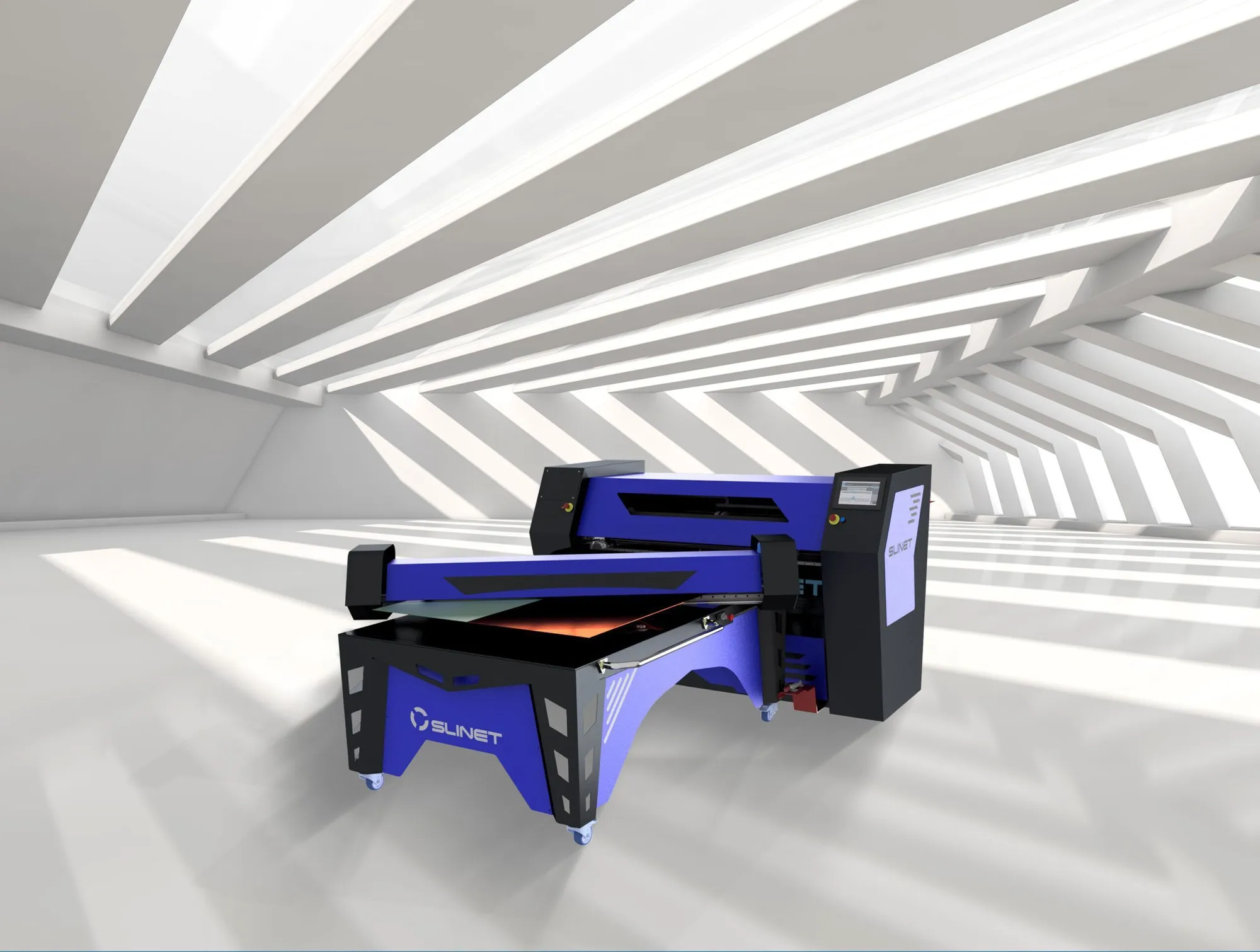

NEW SLINET Flexcut
Overview
The next generation for innovative coil processing.
Markets are subject to constant change.
In sheet metal processing, too, this is leading to increasingly complex products and processes. Effective, highly flexible and, above all, user-friendly solutions are required for the efficient production of cut-to-size profiles.
Slinet offers you exactly that! It combines the best quality and simplest operation with maximum flexibility and automation.
The highly efficient Slinet Flexcut is the ideal addition to your Slinet S1.0. This flexible module enables precise bevel cuts of up to 60 degrees in both directions and can be easily connected to your machine. The user-friendly machine control makes it easy to create and perform bevel cuts. In addition, the module can be stowed away to save space when not in use thanks to the practical folding function.
The Slinet Flexcut can be upgraded on all Slinet S1.0 models.
Specs
Connected load Supply via the main machine (S1.5 or S1.0) 400V 3 Ph/N/Pe 2 KW
Air pressure Supply via the main machine (S1.5 or S1.0) 400V 3 Ph/N/Pe 2 KW
Maximum pivoting angle 60° in both directions
Maximale sheet width 1250 mm nominal width
1000 mm at 45°
650 mm at 60°
Sheet thickness Up to 0,75 mm steel
Up to 0,55 mm stainless steel (550 N/mm²)
Up to 1 mm Aluminium
Non-ferrous metals up to 1 mm
Accuracy ISO 2768 -1 c (grob)
Weight 550 kg
Dimensions 1660 (stowed) / 2250 (ready to work) x 2250 x 1230
