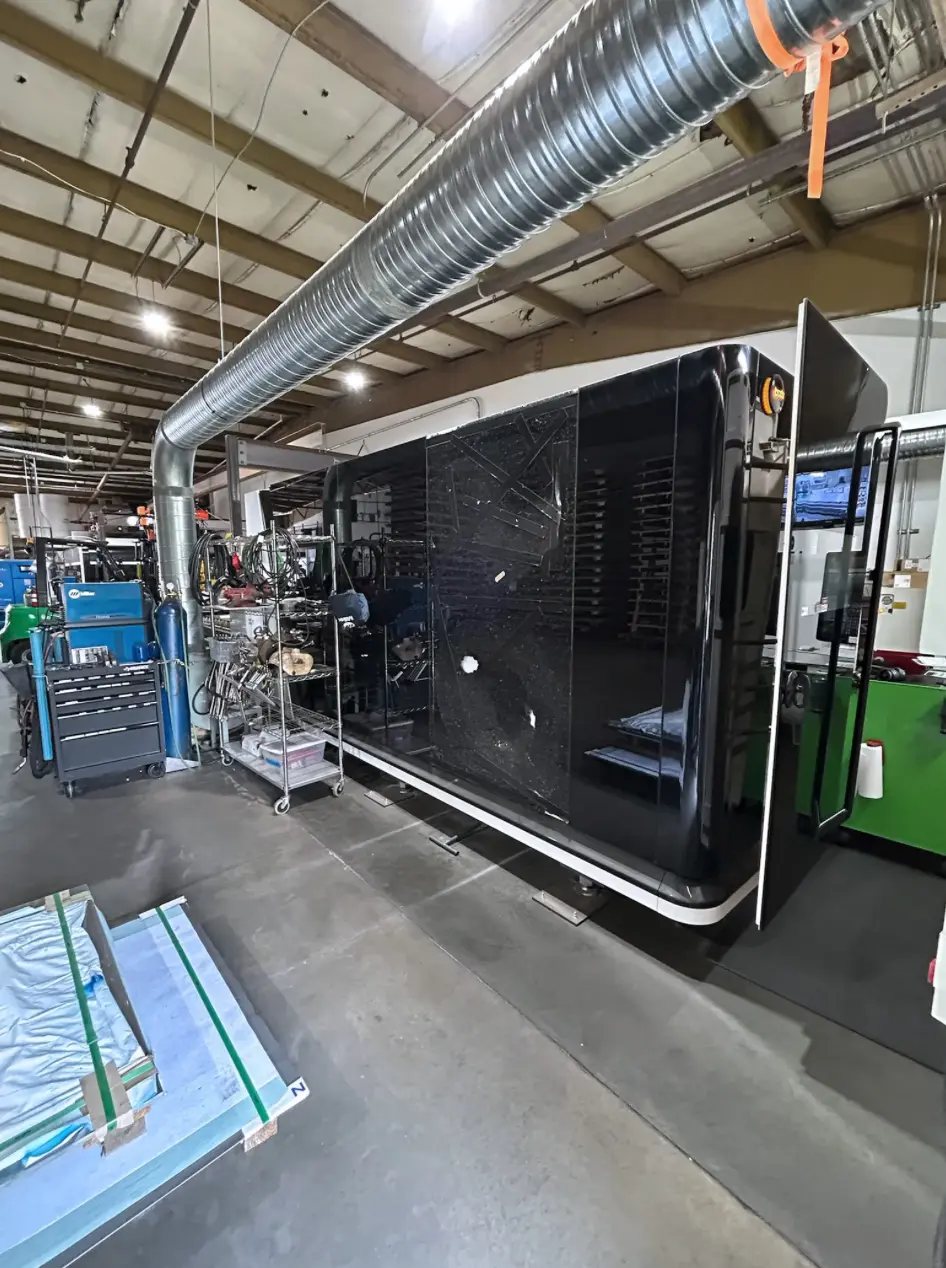

Laser Cutter in used condition. Specs: 120"x60" pallet size, 12kW Fiber Laser, 7,874 In/Min speed, equipped with a 5'x10' shuttle table, Bodor Genius Auto Focus Head, Thinker 3.0 Control, air compressor, and light curtain.
| X | 120" | 3,048 mm |
| Y | 60" | 1,524 mm |
| Z | 13.8" | 350.52 mm |
| Control | CNC | CNC |
| Dimensions | 391.2″ X 120″ X 90″ | 391.2″ X 120″ X 90″ |
| Weight | 18,298.4 Lbs | 18,298.4 Lbs |
PALLET SIZE 120" X 60""
X-TRAVEL 120.00"
Y-TRAVEL 60.00"
Z-TRAVEL 13.80"
POWER SOURCE 12 KW BodorPower Fiber Laser Source
MAX LINKAGE SPEED 7,874 In/Min
MAX ACCELERATION 4.0 G (High Dynamic Motion)
MAX SHUTTLE TABLE LOAD Up To 3,200lb
DIMENSIONS Approx. 391.2″ X 120″ X 90″
WEIGHT 18,298.4 Lbs
5'X10' Shuttle Table
12kW Bodor Power Resonator
Bodor Genius Auto Focus Laser Head
Bodor Thinker 3.0 Control System
Air Compressor
Light Curtain
