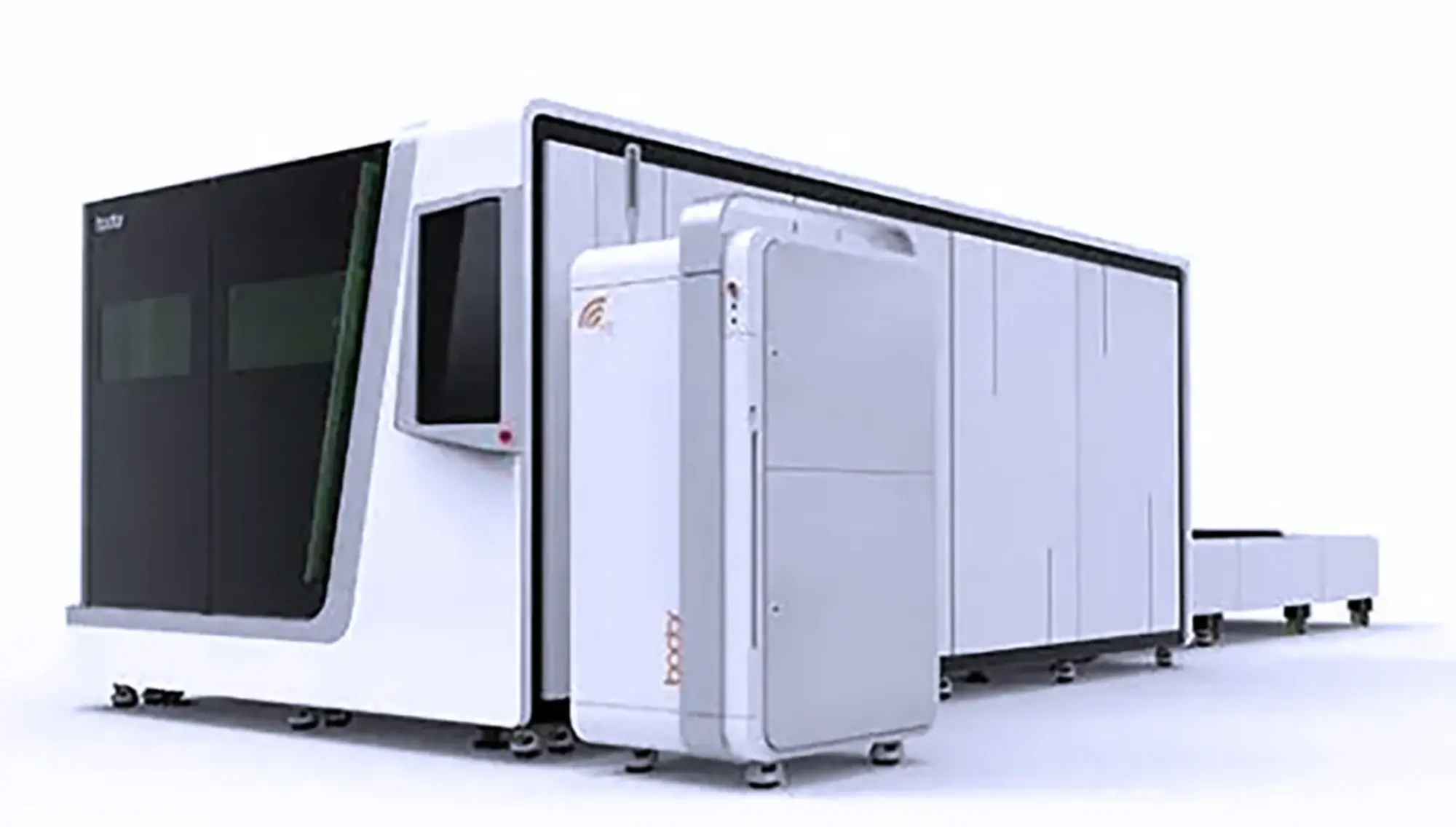

Unlock precision with the used 2024 BODOR P4 Laser Cutter. Features a 12kW BodorMAX resonator, chiller, dust collector, and dual shuttle table. Handle sheets up to 13' x 6.5' effortlessly with 4G acceleration.
| Sheet-W | 2,000 mm | 78.74" |
| Sheet-L | 4,000 mm | 157.48" |
| Wattage | 12 kw | 12 kW |
| IPM | 169 mpm | |
| X | 4,000 mm | 157.48" |
| Y | 2,000 mm | 78.74" |
| Z | 315 mm | 12.402" |
| Control | CNC | CNC |
| Dimensions | 38' X 11' X 8.9 | 38' X 11' X 8.9 |
WORKING AREA 13' X 6.5'
WATTAGE 12kW
TABLE CAPACITY 5,533lbs
MAX. LINKAGE SPEED 7.8" / Min
MAX ACCELERATION 4G
Z TRAVEL 14.5in
DIMENSIONS 38' X 11' X 8.9
BodorMAX12kW Resonator
Chiller
Dust Collector
Dual Shuttle Table
