USED Bopet Extrusion & Orientation Line

USED BOPET FILM EXTRUSION & ORIENTATION LINE, APPROX. 1,050 LBS/HR OUTPUT

Complete BOPET film extrusion and orientation line for polyester film production
Reportedly producing approximately one 3,200 lb roll every 3 hours, continuous 24/7 operation

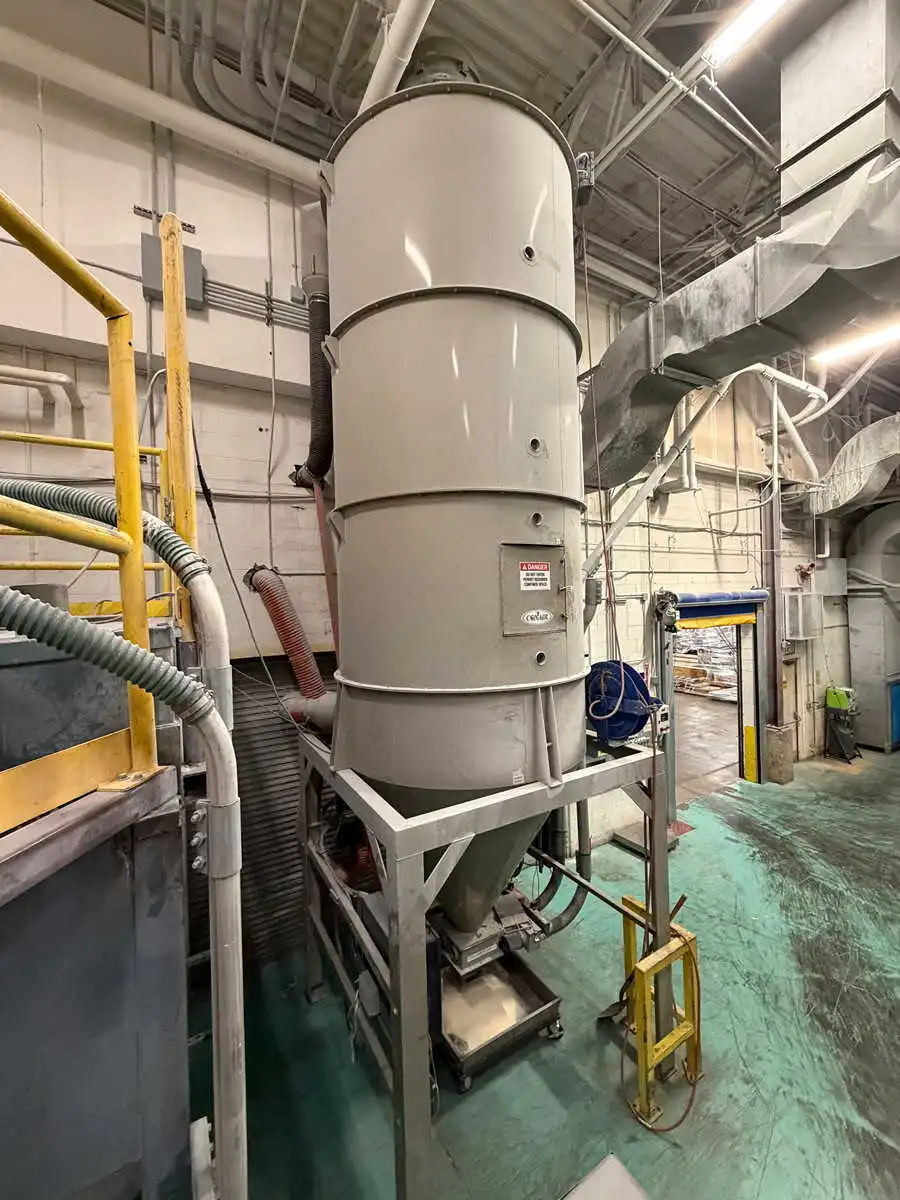

Includes resin handling, crystallizers, dryers, single screw extruders, melt pumps, Pall filtration, cast wheel system, MDO, 11-zone TDO, corona treaters, gauging system, winder, grinder/regrind system, and DeltaV SCADA controls
Main line sections manufactured by Welex, Cellier, Davis-Standard, Emerson, Pall, Enercon, ConAir, and Nordson
MDO rated 30–230°C, up to 300 m/min, TDO rated 60–300°C, 660–2500 mm working width
Major upgrades reportedly completed between 2016–2024, including extruder, controls, die, TDO chain, heaters, and winding systems
Slitter rewinders are excluded and retained by owner
