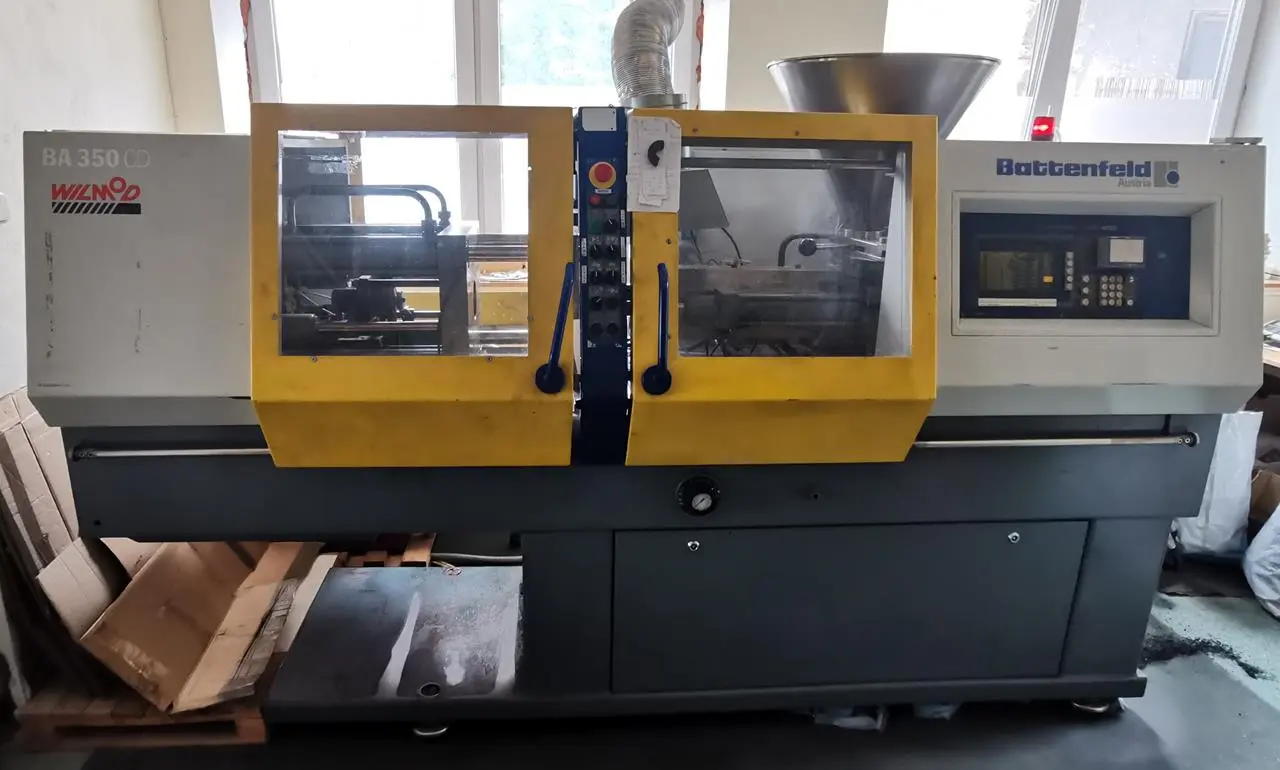

USED 1991 BATTENFELD 350 CD

Overview
Manufacturer:
BATTENFELD
Model:
350 CD
Year:
1991
Stock #:
7028
Specifications

Control system: UNILOG 4000
Clamping force: 350 kN
Screw diameter: 30 mm
Injection capacity: 84.8 cm³
Injection weight: 77.1 g
Height of the plate for mounting the mold: 450 mm
Width of the plate for mounting the mold: 400 mm
Distance between the columns (horizontal): 304 mm
Distance between the columns (vertical): 254 mm
Length of the ejector stroke: 100 mm
Opening the mold: 325 mm
Machine length: 2960 mm
Machine width: 1260 mm
Machine height: 1800 mm
Weight of the injection molding machine: 2200 kg

Equipped With

Spare parts
