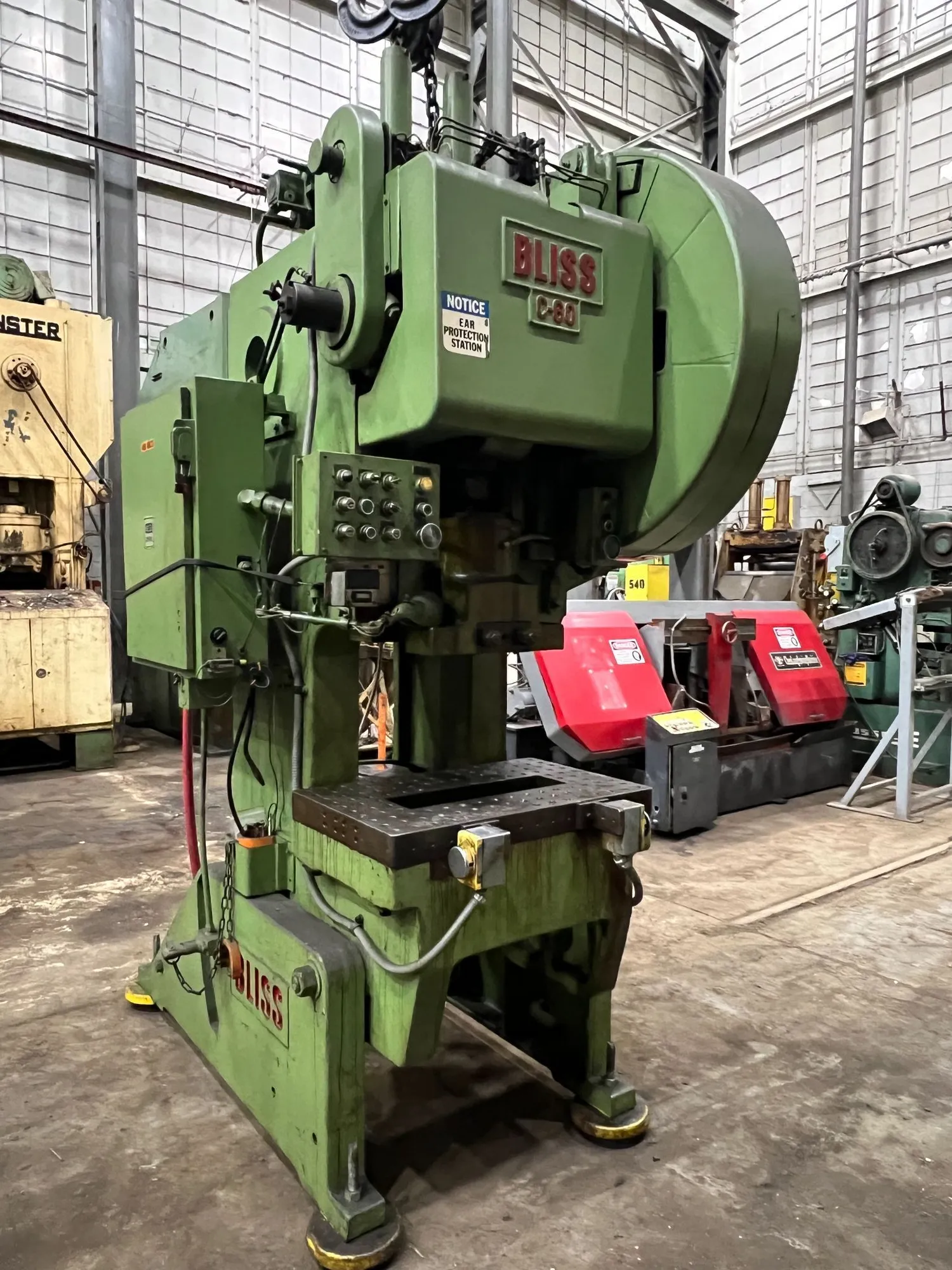

Used 60 Ton Bliss Flywheel O.B.I. Press, Model C-60 from 1967, featuring an air clutch and brake system, 32"x21" bed, and 90 SPM. Includes air counterbalances, bolster plate, electrics, controls, and leveling pads. Condition: used.
| Ton | 60 T | |
| Bed L-R | 32 in | |
| Bed F-B | 21 in | |
| Stroke | 3.5 in | |
| Adjustment | 3 in | |
| Shut Height | 14.75 in | |
| Speed (max) | 90 strokes/min. | 90 strokes/min. |
| OBI Single Double | Single Crank | Single Crank |
| Air Clutch (Yes/No) | Yes | Yes |
| Weight | 12,000 Lbs. | 12,000 Lbs. |
Tonnage: 60 Ton
Stroke: 3 1/2”
Shut Height, On Bed: 14 3/4”
Slide Adjustment: 3”
Speed: 90
Bed Area: 32” L-R x 21” F-B
Equipped With:
Air Clutch & Brake
Air Counterbalances
Bolster Plate
Electrics & Controls
Leveling Pads
