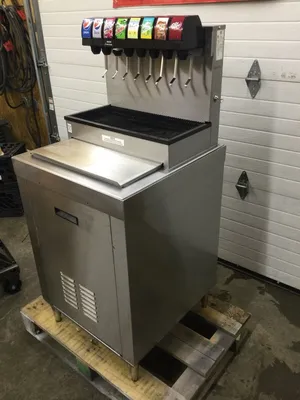

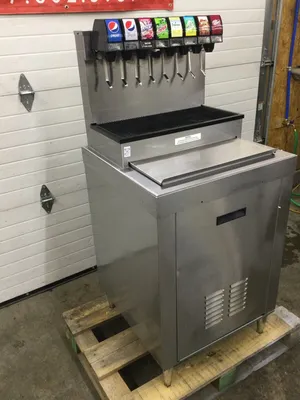

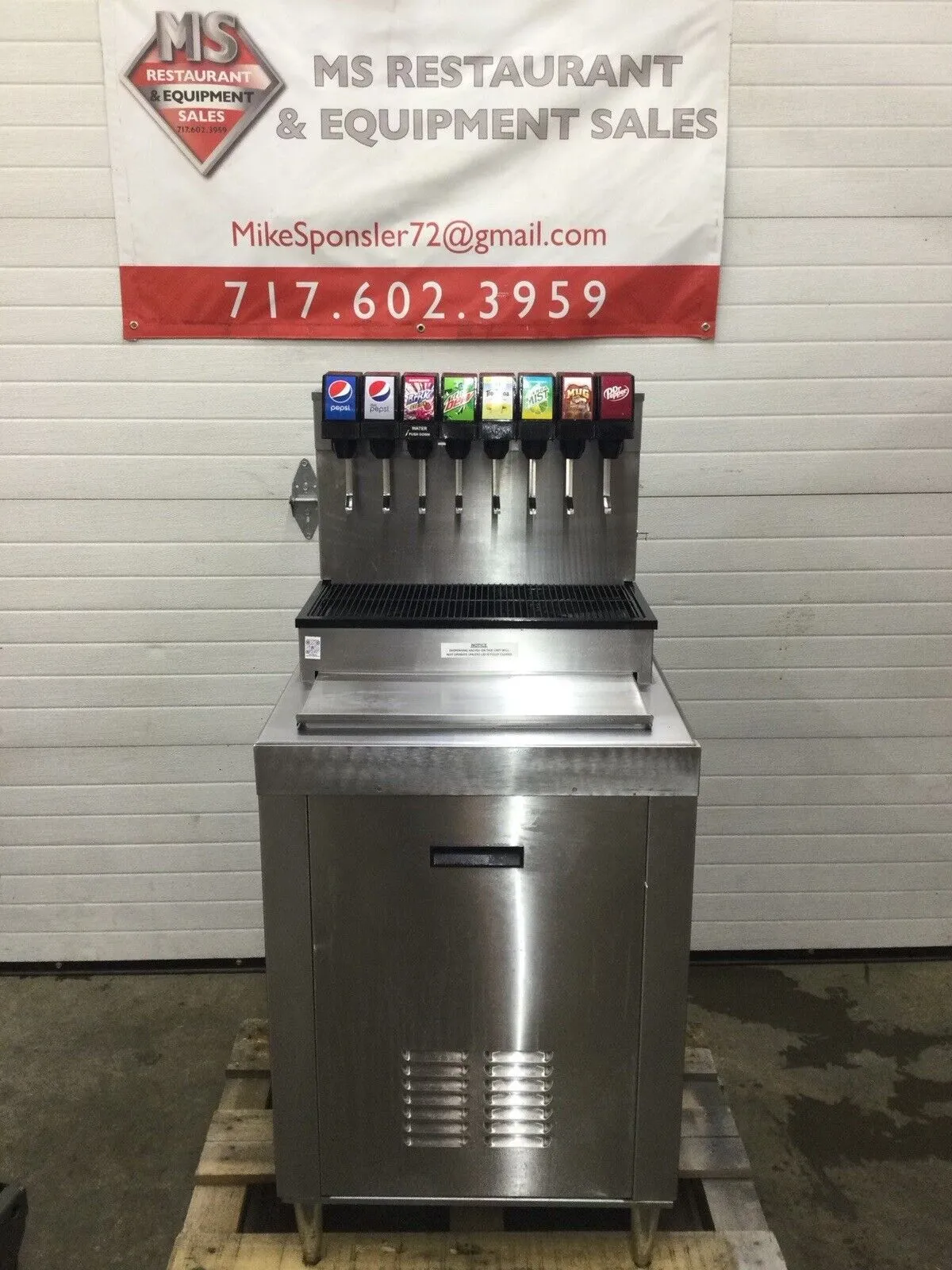

Cornelius CB2323A, 8 Flavor Soda Dispenser w/ 100# Ice Bin

Cornelius CB2323A, 8 Flavor Soda Dispenser w/ 100# Ice Bin.

* Used*

Cornelius

CB2323A, 8 Flavor Soda Dispenser

w/ 100# Ice Bin

    •    Large Ice Capacity - 100 lb bin to meet peak demand

    •    Valve - Standard UFB-1™ sanitary lever valves

    •    Foamed Insulation - Polyurethane foamed insulation prevents condensation

    •    Front Inlet Fitting - Easy to install beverage lines

    •    Stainless Steel Construction - Durable and easy to clean

    •    Removable Front and Back Panels - Ease of service

    •    Extra Wide Drain Pan - Provides extra room for cup staging and is removable for cleaning

Model Specifications:

Agency Listings:

UL, NSF, CE

Electric: 120 V / 60 Hz /1 Amp

Cup Clearance: 9.75 In

# of Valves: 8

Ice Storage Capacity: 100 lb

Valve Type:

UFB-1™ Sanitary Lever Valve

Shipping Weight

255 lb

Beverage Manifolding:

5-2-1 carb to non-carb manifold

Drain Connection

Water 0.375" (9.5 mm) barb fitting Syrup 0.375" (9.5 mm) barb fitting
