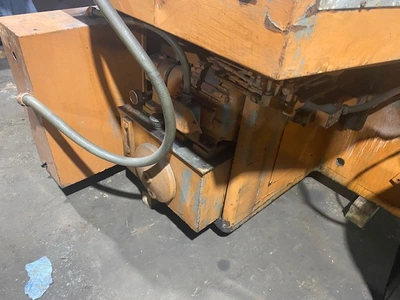

USED LANDIS 1R UNIVERSAL W/ ID

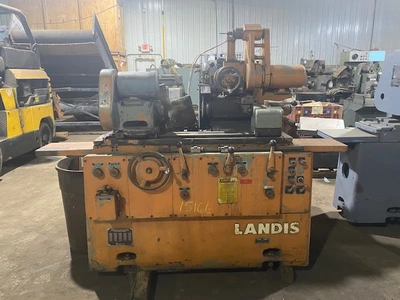

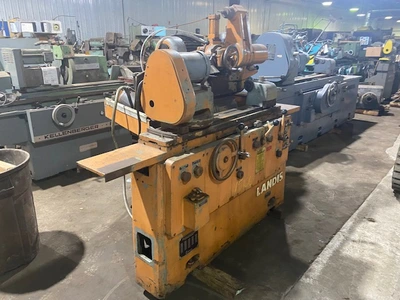

(1) USED LANDIS 10” X 20” 1R UNIVERSAL CYLINDRICAL GRINDER W/ ID ATTACHMENT

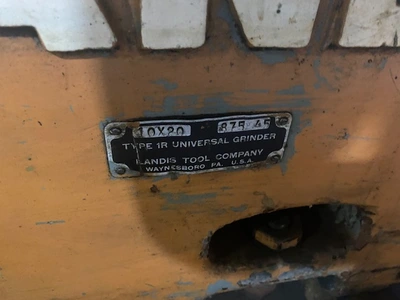

Serial Number: 875-45
SPECIFICATIONS:

Nominal work swing: 10”

Nominal distance between centers: 20”

Table traverse speed: 2 to 240 IPM

Grinding wheel size: 12” diameter x 1” wide x 5” hole

Grinding wheel max width: 1.5”

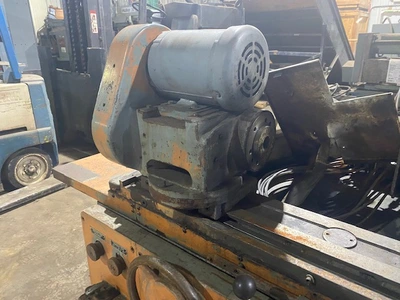

Grinding wheel spindle motor: 5 HP

Workhead speeds: 30 to 150 RPM

Grinding wheelhead swivel: upper & lower : 90 Degrees each way

Headstock center: #10 Jarno

Footstock center: #6 Jarno

Footstock center movement: lever operated

Diameter of hole in spindle: 1”

Headstock swivel: 120 Degrees

Headstock spindle nose: 5A-2
EQUIPPED WITH:

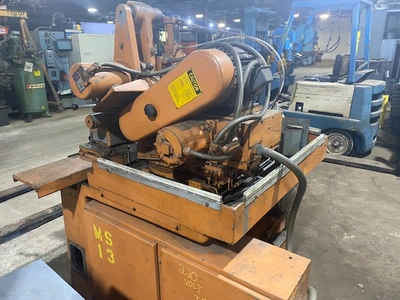

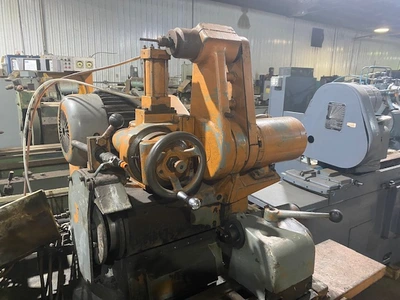

Swing Down ID Spindle

Plunge Cycle

Table Traverse

Tarry timers left and right reversal

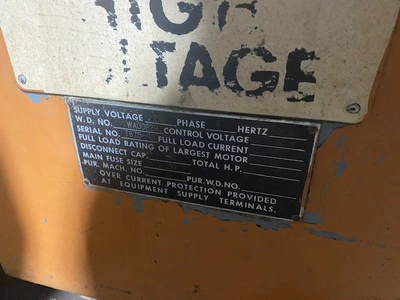

Attached electrical panel
