USED UNISON DEDTRU 288-0000

UNISON “DEDTRU” CENTERLESS GRINDING MACHINE

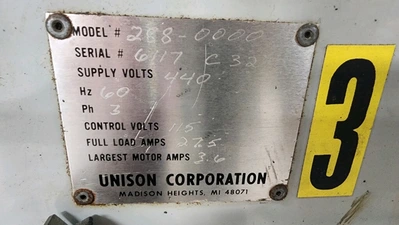

MODEL: 288-0000

Serial Number: 6117 C32
VERTICAL WORKING HEIGHT (CENTER OF SPINDLE ABOVE)

REGULATING ROLL …………………………… 10″

CROSS FEED TRAVEL ………………………… 6-3/4″

LONGITUDINAL TRAVEL …………………………. 18″

TABLE SIZE …………………………….. 6″ X 18″

WORKPIECE SIZE:

O.D. WORK WITH BASIC EQUIPMENT ……. 1/4″ TO 1-1/4″

O.D. WORK W/STD. OPTIONAL ACCESSORIES .. 0.031″ TO 5″

I.D. WORK – MAXIMUM O.D. ……………………. 5″

MAXIMUM WHEEL DIAMETER ……………………….. 8″

MAXIMUM WHEEL LENGTH …………………………. 3″

APPROXIMATE MACHINE WEIGHT ……………… 1,500 LBS
EQUIPPED WITH:

UNISON MODEL “C” DED-TRU CENTERLESS GRINDING UNIT,

\-DESIGNED TO DO THROUGH FEED, O.D., I.D. AND

SECOND OPERATIONS.

REGULATING ROLL WITH ITS OWN SELF-CONTAINED DC

DRIVE CONTROLLER. REGULATING ROLL SIZE 4″ X 4″

HARIG #618W SURFACE GRINDER BASE

OPTIONAL FINE DOWNFEED KNOB (.0001″ GRAD.)

“AUTOMATIC LONGITUDINAL FEED CYCLE” OPTION – PROVIDES

RAPID APPROACH TO WORK, SLOW DOWN TO FEED RATE,

FEED TO POSITIVE STOP, DWELL FOR PRESET TIME,&

AUTOMATIC RAPID CARRIAGE RETURN. SLOW DOWN

POSITION, FEED RATE, POSITIVE STOP,& DWELL TIME

ARE ADJUSTABLE. INCLUDES LIMIT SWITCH START& STOP

CONTROL OF REGULATING ROLL.

“POPE” 3 H.P. SPINDLE, 3,600 RPM, 3/60/230-460 VOLTS
