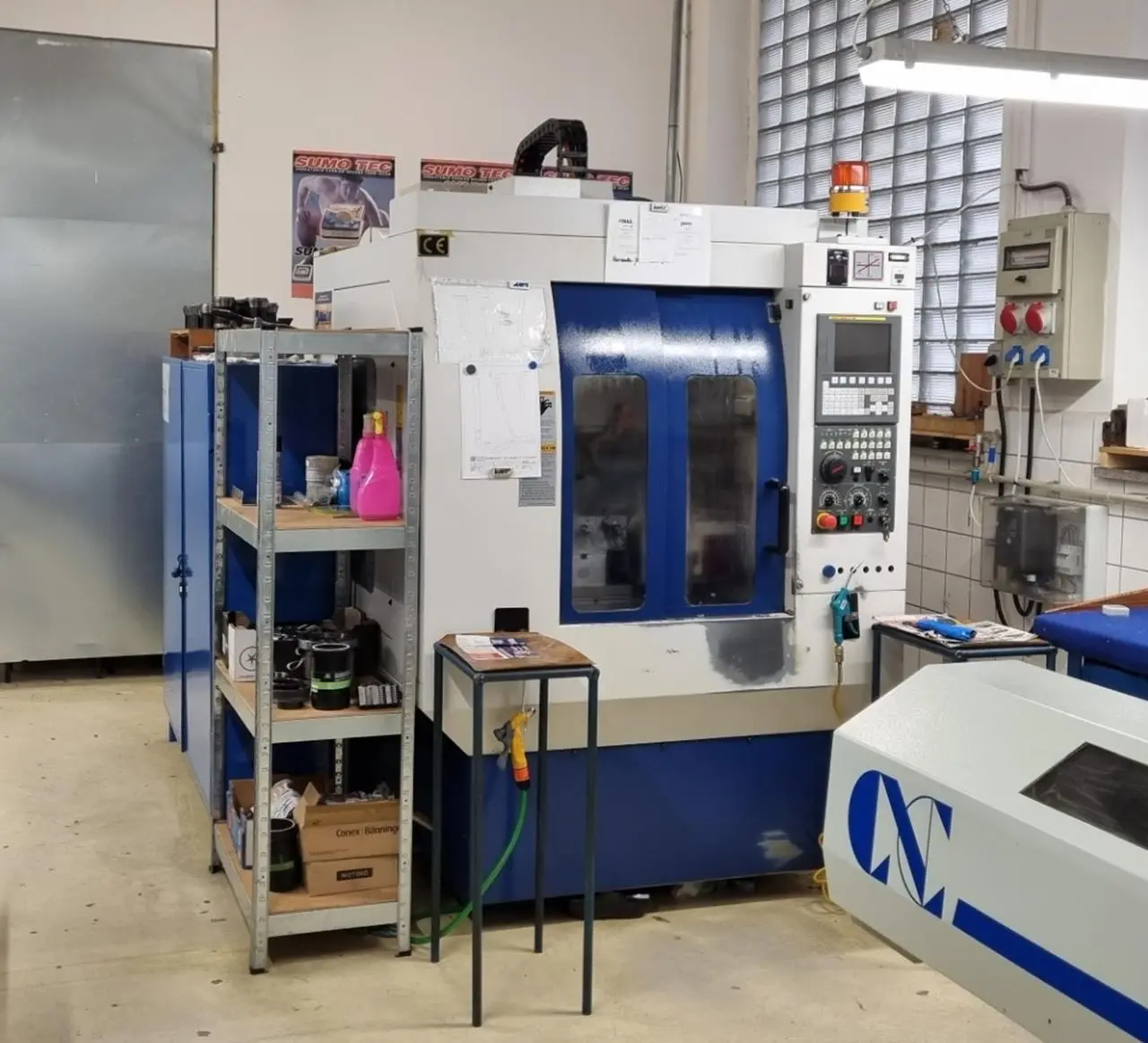

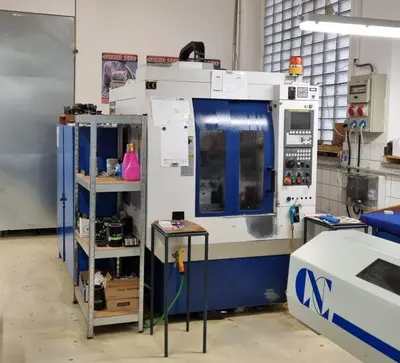

USED 2008 TONGTAI TOPPER TMV-510T

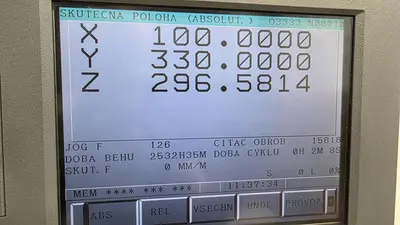

Control system: Fanuc 0i-MF Plus
Hours on: 2532 h
Length of the working table: 600 mm
Width of the working table: 360 mm
X-Axis travels: 510 mm
Y-Axis travels: 360 mm
Z-Axis travels: 300 mm
Block speed: 8000 1/min
Power of the spindle: 5.5 kW
Taper: BT-30
Maximum number of tools: 20 pcs
Number of axes: 5 pcs
Rapid traverse X/Y/Z: 48 m/min
Machine height: 2310 mm
Machine length: 2700 mm
Machine width: 1600 mm
Machine weight: 2000 kg

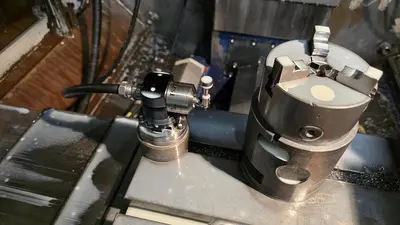

Tool probe Renishaw
Chuck

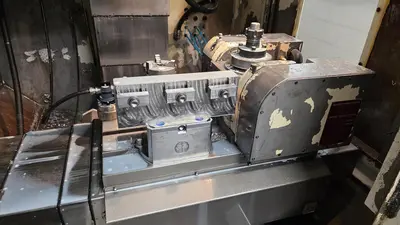

CNC controlled 5th axis TSUDAKOMA TN-101
