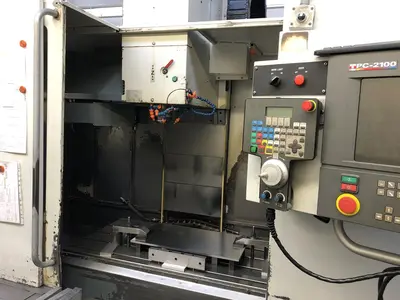

Control system: Acramatic TPC-2100
Length of the working table: 1300 mm
Width of the working table: 600 mm
Maximum table load (evenly distributed): 700 kg
Power of the spindle drive: 18.5 kW
Minimum rotary speed of the spindle: 40 1/min
Maximum rotary speed of the spindle: 10000 1/min
X-Axis travels: 1016 mm
Y-Axis travels: 610 mm
Z-Axis travels: 660 mm
Maximum feed rate in X-axis: 5000 mm/min
Maximum feed rate in Y-axis: 5000 mm/min
Maximum feed rate in Z-axis: 5000 mm/min
Taper: SK 40
Number of tools in the magazine: 20 pcs
Machine height: 2940 mm
Machine length: 3080 mm
Machine width: 2700 mm
Machine weight: 5500 kg
Chip conveyor
Oil mist separator
