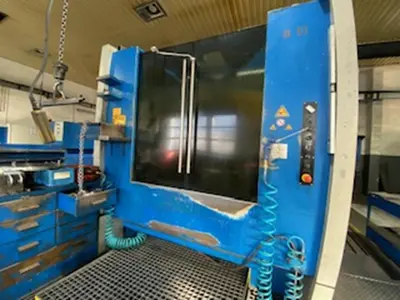

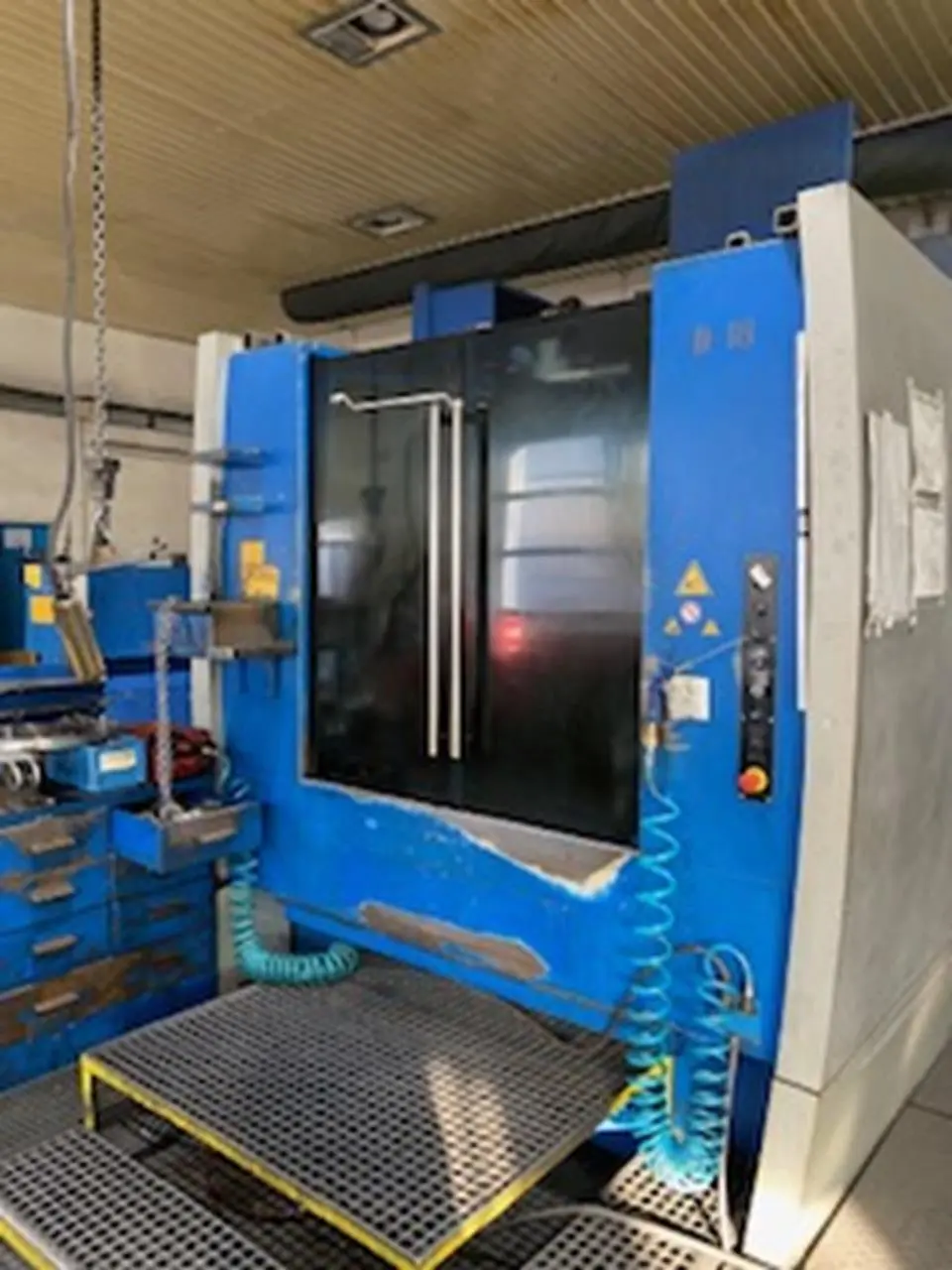

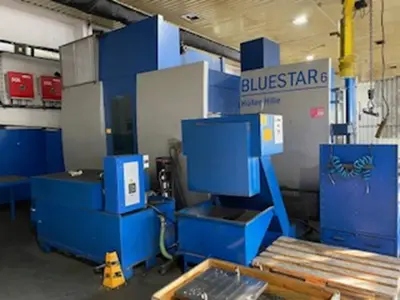

USED 2006 HÜLLER-HILLE BLUESTAR 6

Control system: Fanuc Series 21i-MB
Length of the working table: 630 mm
Width of the working table: 630 mm
Number of stack positions: 138
Speed: 50-10000 1/min
X-Axis travels: 700 mm
Y-Axis travels: 630 mm
Z-Axis travels: 700 mm
Taper: BT50
Max. tool diameter: 150 mm
Max. tool weight: 10 kg
Machine height: 3300 mm
Machine length: 5400 mm
Machine width: 3770 mm
Machine weight: 15000 kg

Chip conveyor
B: Rotary table
Number of pallets: 2
Maximum pallet load: 1000 kg
