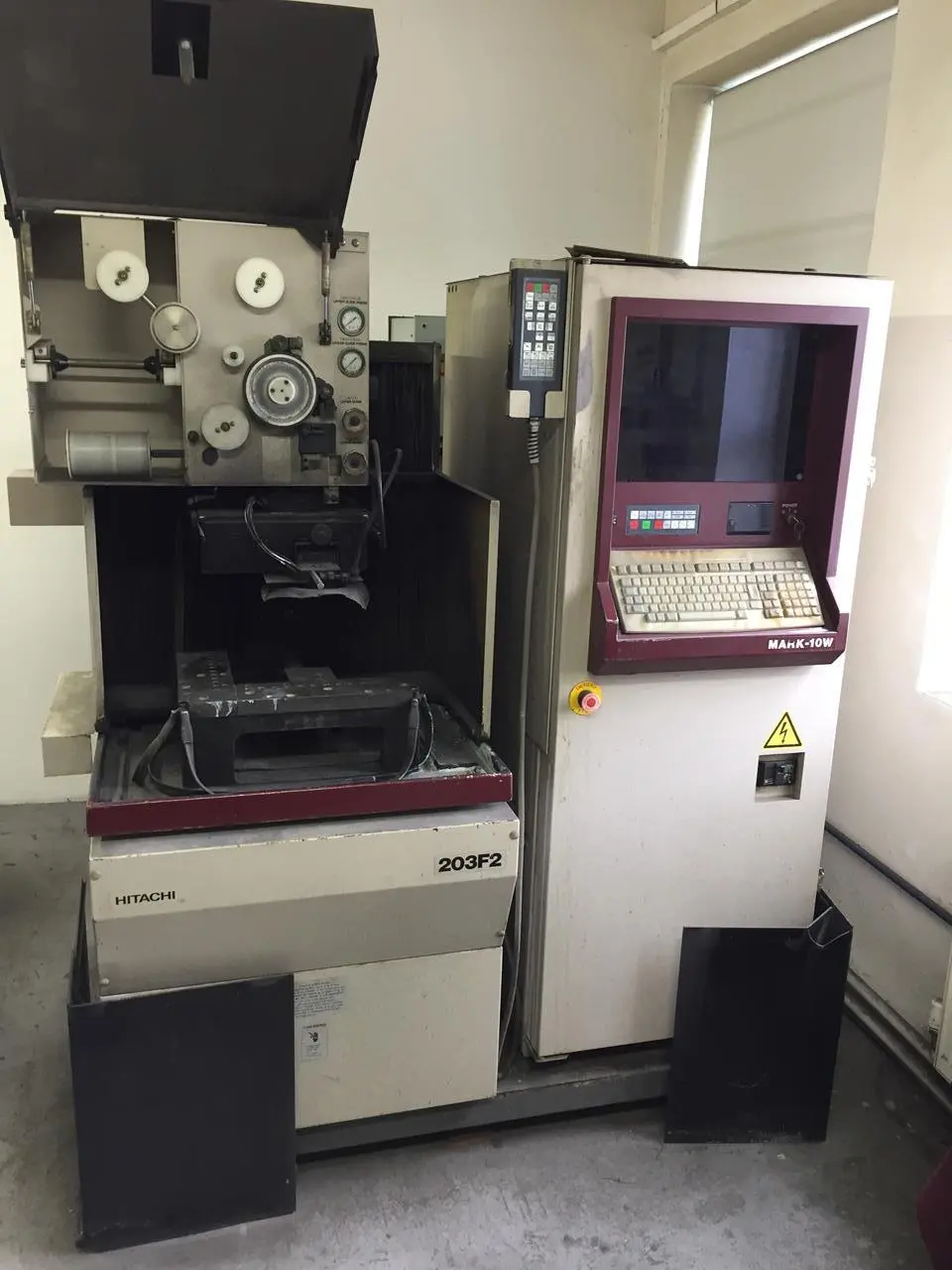

Control system: MARK-10W
Maximum travel length X-axis: 320 mm
Maximum travel length Y-axis: 250 mm
Maximum travel length Z-axis: 170 mm
Travel length U-axis ( -): 20 mm
Travel length V-axis ( -): 20 mm
Maximum thickness of the wire: 0.25 mm
Dielectric tank capacity: 160 l
Maximum workpiece dimensions: 450 x 350 x 170 mm
Largest workpiece weight: 200 kg
Machine height: 1880 mm
Machine length: 1525 mm
Machine width: 1810 mm
Machine weight: 1500 kg
