USED PARKER MAJESTIC NO. 1

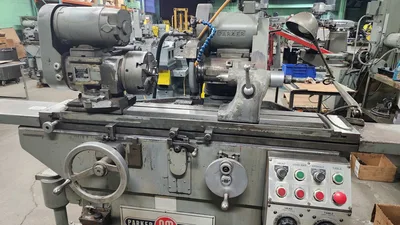

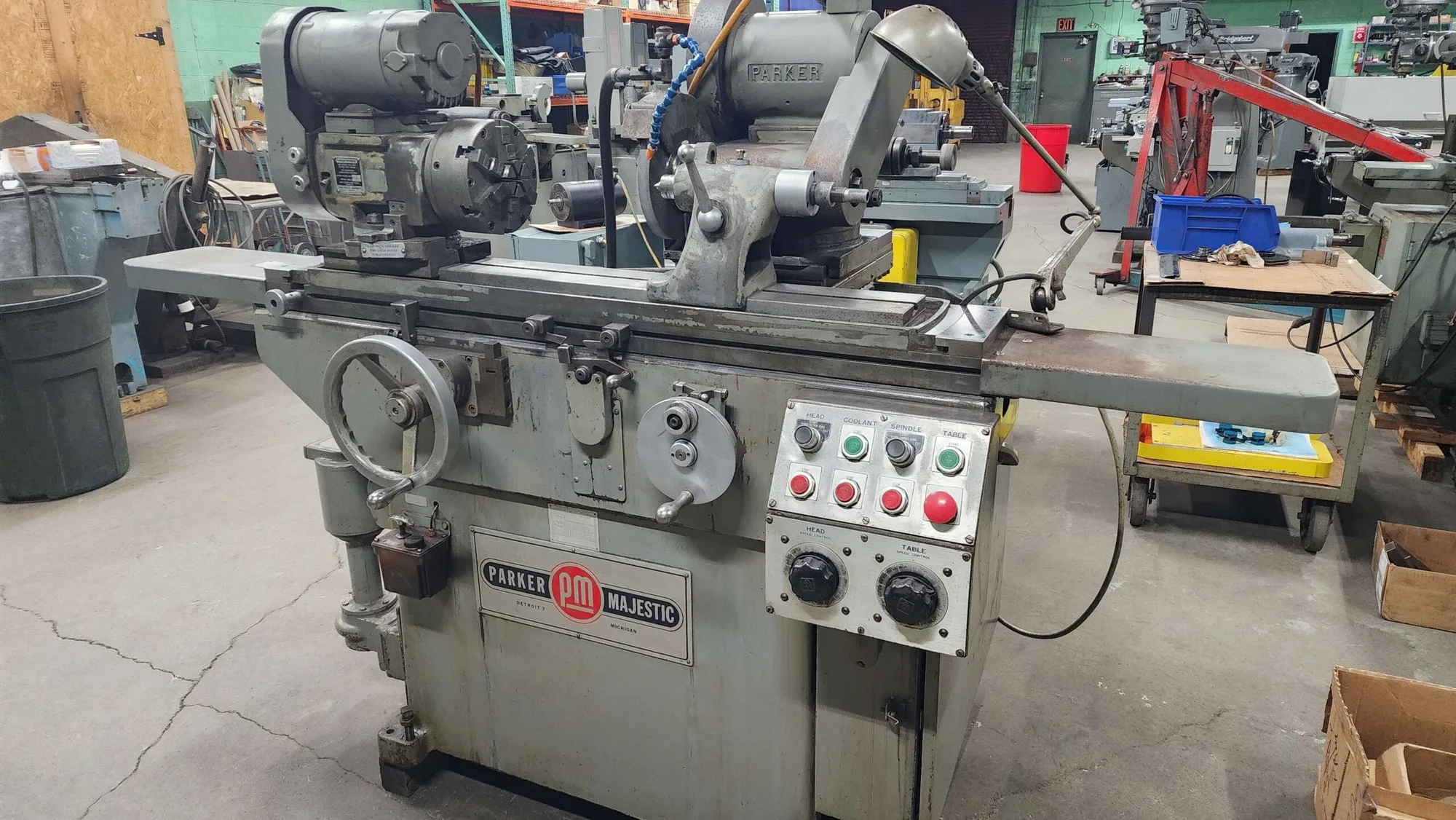

12″ X 20″ PARKER-MAJESTIC NO. 1 UNIVERSAL CYLINDRICAL GRINDER
” MADE IN USA “
SPECIFICATIONS:

SWING OVER TABLE ……………………… 12″

DISTANCE BETWEEN CENTERS ………………. 20″

VARIABLE SPEED POWER TABLE FEED

TABLE SWIVEL …………………………. 7 DEGREES

CROSS FEED TRAVEL …………………….. 3- 1/2″

CROSS FEED ADJUSTMENT …………………. 4″

CROSS FEED HANDWHEEL GRAD. …………….. 0.0005″

CROSS FEED PRECISION DIAL GRAD …………. 0.000050″

GRINDING WHEEL SIZE …………………… 10″ DIAMETER

GRINDING WHEEL BORE SIZE ………………. 1- 1/4″

WHEELHEAD MOTOR ………………………. 1- 1/2 H.P.

HEADSTOCK SWIVEL ……………………… 0 TO 90 DEG.

INF. VARIABLE HEADSTOCK SPINDLE SPEEDS ….. 0 TO 240 RPM

HOLE THRU SPINDLE …………………….. 1- 1/4″

HEADSTOCK CENTER TAPER ………………… #6 JARNO

TAILSTOCK CENTER TAPER ………………… #6 JARNO

SPINDLE MOTOR ………………………… 2 H.P.
APPROX. MACHINE WEIGHT ………………… 2,400 LBS.
EQUIPPED WITH:

8″ (6) JAW CHUCK

VARIABLE SPEED POWER TABLE FEED

TAILSTOCK CENTER & WORKHEAD CENTER

PARKER-MAJESTIC LIVE/DEAD WORKHEAD

5″ “SINE BAR” OPTION FOR THE WORKHEAD

WORKHEAD ACCEPTS 5C COLLETS

WORKHEAD SPINDLE SPEEDS ARE INFINITELY VARIABLE

.00005″ CROSS FEED DIAL GRADUATIONS

DIAL INDICATOR FOR TABLE SWIVEL ADJUSTMENT

COOLANT SYSTEM IN BASE

ONE-SHOT LUBRICATOR

PARKER-MAJESTIC SUPER-PRECISION SPINDLE FOR WHEELHEAD

1.5 H.P. WHEELHEAD MOTOR, MADE BY PARKER-MAJESTIC
