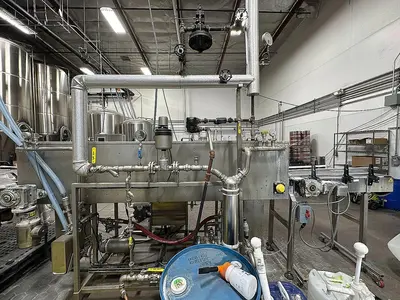

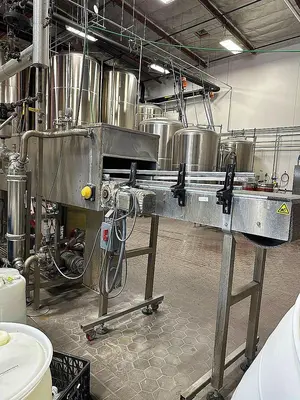

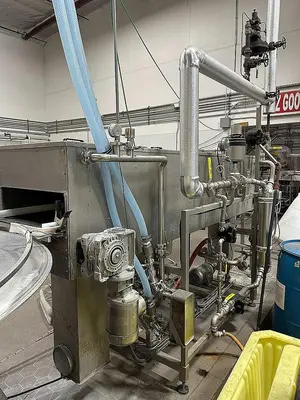

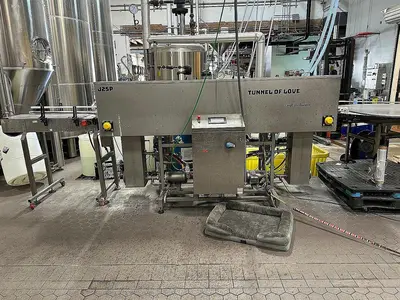

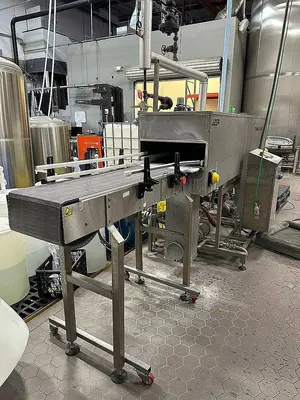

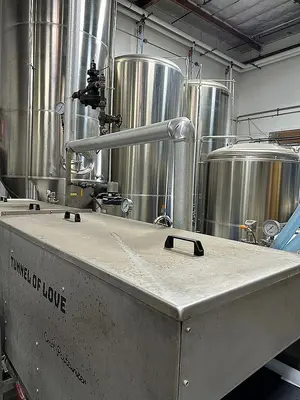

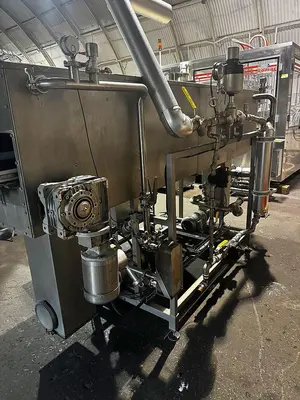

(1) Available - Used Jenrey J25P tunnel pasteurizer - built new in 2022 and used sparingly in a brewery. New cost was over $100,000 in 2022.
Throughput 25 CPM, up to 50 PUs
Steam Supply 205,000 BTU/hr - Low pressure steam
Steam Connections 2" Tri Clamp Supply / 1-1/4" NPT condensate return
Glycol Supply 84,000 BTU/hr - 9 USGPM @ 28°F (-2°C)
Glycol Connections 1-1/2" Tri Clamp Supply / 1" NPT Return
Water Supply 1" line at approx. 60 PSI (1" Tri Clamp Connections)
Compressed Air Supply 85 psi (6 bar) - 12 cfm (1/4" NPT connection)
Drains 1-1/2" Tri Clamp
Power Supply 208v, 3ph, 60hz, 18 FLA
Model: J25P
Dimensions: 60” W x 165” L x 65” H
Tunnel length: 115”
Jenrey Pasteurizers are designed to offer some of the smallest footprints available in the industry today

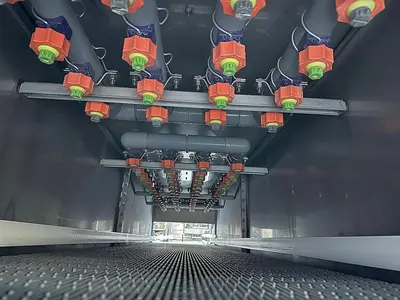

with industry leading quick change, clog resistant spray nozzles for high efficiency continuous
operation.
- Constructed of 304 SS and equipped with adjustable supporting feet
- Sectional covers can be easily opened for open access to the system, made of 304 SS
- Quick access SS strainers for ease of cleaning and maintenance
- Sumps with level sensors and quick access cleanouts

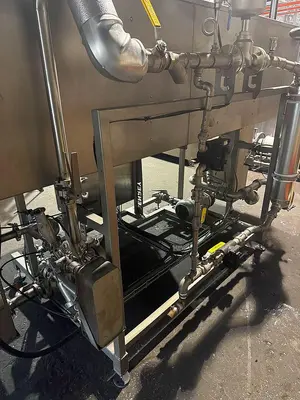

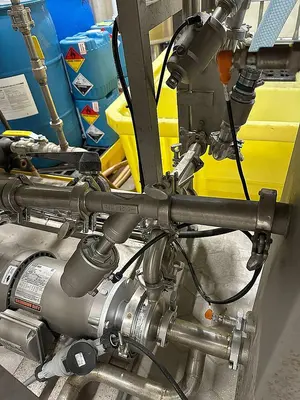

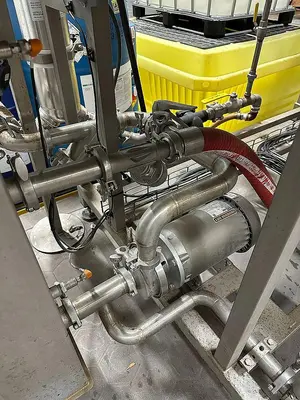

- Centrifugal pumps for water circulation
- Temperature transmitters for the control and management of operating parameters
- Series of automatic valves for water flow control to the tunnel sections
- Modulating valve for steam or hot water control to heat exchanger for heating section
- Automatic valve for glycol control to heat exchanger for cooling section

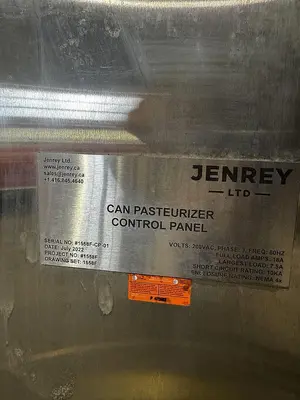

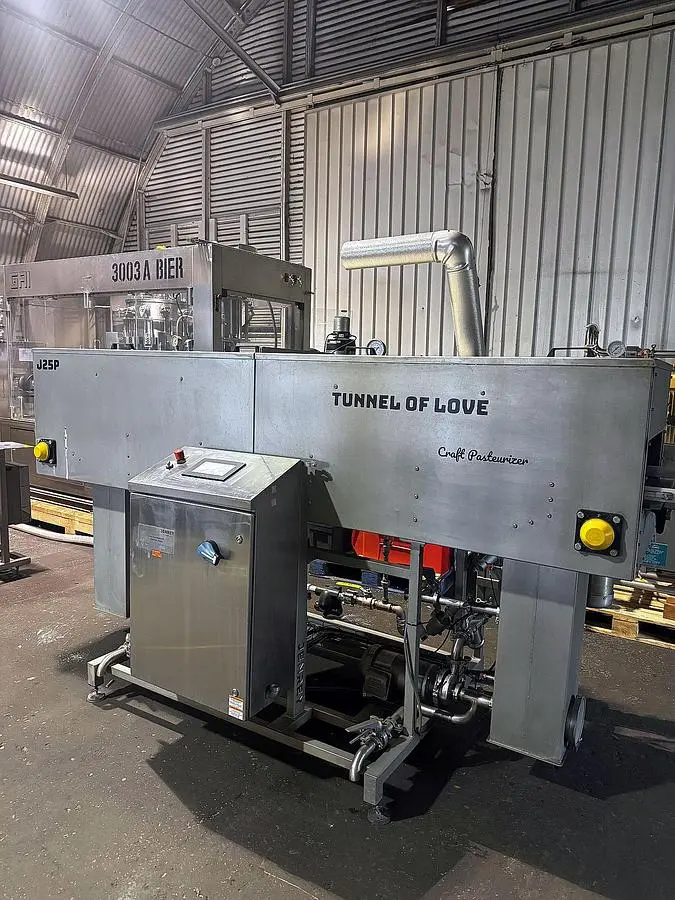

- Nema 4x Slope top 304 SS control panel (electrical cabinet)
- Data logger supplied for temperature, time and PU verification / calibration
