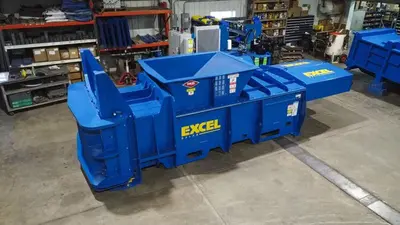

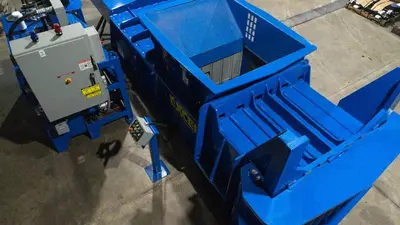

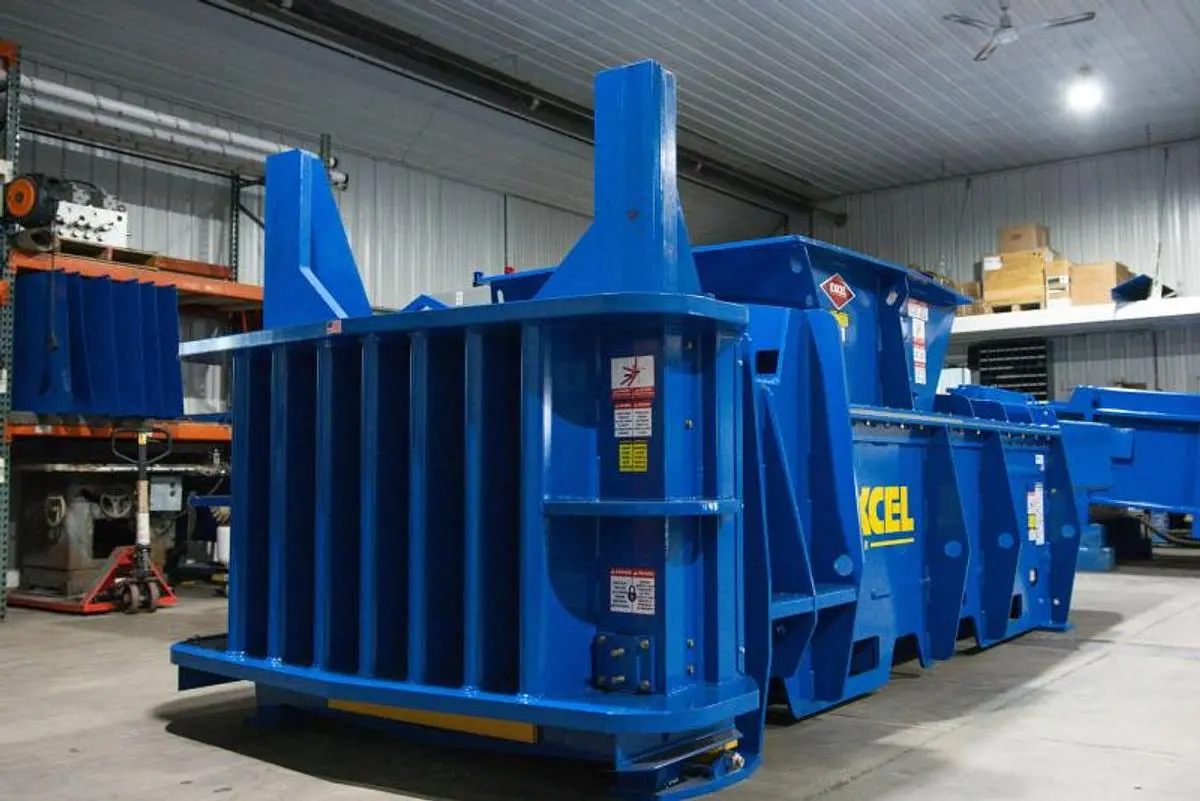

NEW 2026 EXCEL HV9 HORIZONTAL BALER

The 2026 Excel HV9 Horizontal Baler is a versatile, high-performance baler designed for demanding recycling and waste disposal applications. With a robust single-sheet, interlocking construction, it offers exceptional durability and strength, efficiently handling materials such as office paper, newspaper, OCC, PET, aluminum cans, and non-ferrous metals without preconditioning. Its 50-horsepower TEFC motor and reinforced hydraulic system deliver a compaction force of 206,756 lbs, operating at a system pressure of 3,000 PSI. The main cylinder setup enhances compression efficiency, while features like automatic bale sizing and shear jam correction streamline operations.

The HV9 model includes a patented hydraulic bale pusher bar for efficient bale tie-off and ejection, significant for reducing labor costs. It is equipped with NEMA 12-rated enclosures and Hardox 400 wear liners for longevity. Standard voltage of 460 volts ensure adaptability to various facilities. The 1-2-3 warranty provides coverage for labor, parts, and structure, making it a sound investment.

Key specifications include a feed opening of 55"W x 45"L, bale dimensions of 60”L x 48”W x 30”H, and a cycle time of 15/11 Seconds Full/Short Stroke. The Excel HV9 model is also equipped with additional features like an industrial hardened logic controller, automatic jam correction, and an air-to-oil heat exchanger, making them suitable for a wide range of industrial applications.

Feed Opening: 55"W x 45"L
Bale Weight: Up to 2,300 lbs.
Bale Size: 60”L x 48”W x 30”H
Main Cylinder: 9"
Total Compaction Force: 206,756 lbs
Total Ram Face PSI: 127 PSI

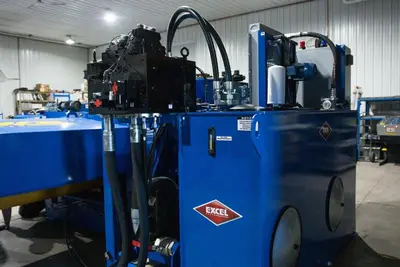

Hydraulic System Pressure: 3,000 PSI
Motor Size: 50 HP TEFC 460V, 3 Phase
Cycle Time: 15/11 Seconds Full/Short Stroke
Electrical: 460-volt, 60-hertz, Three-Phase
Warranty: EXCEL’s® 1-2-3 warranty (one-year labor, two-year parts, and three-year structure) (U.S.A. only)
