NEW 2024 LETINA INOX Z24,800HV22

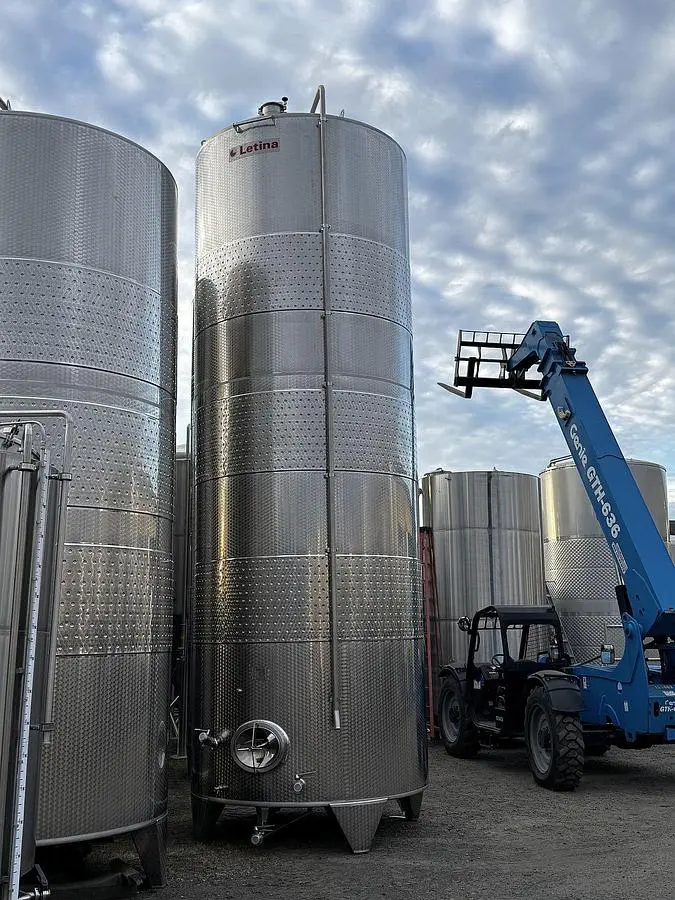

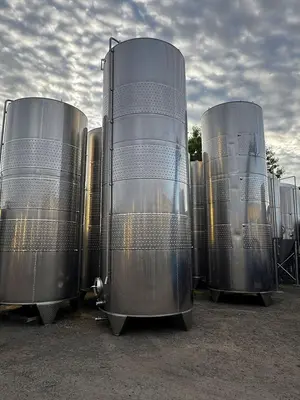

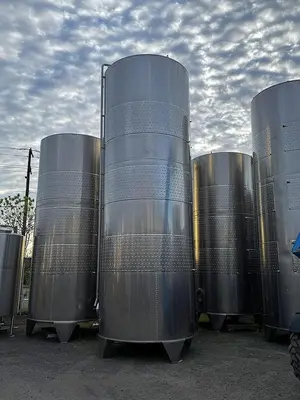

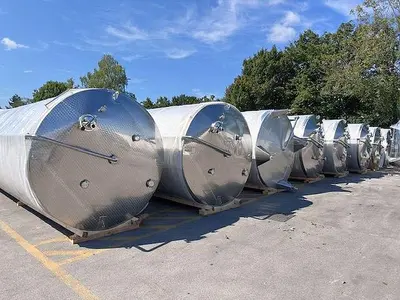

New Stock Letina 24800L / 6550 Gallon jacketed fermenter/bulk storage blending tank. This tank is well suited to accept tankers of juice or other liquid products. It is designed to have jacket coverage over most of the sidewall of the vessle and includes CIP and an option for adjustable footpads with fittings to allow securing the tank to the floor. Specifications are as follows:

— coat diameter 2230 mm, height 6200 mm
— total height approx. 7100 mm

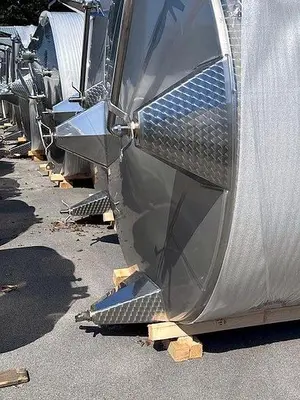

— 4 legs, height 500 mm, closed, adjustable M42
— conical centered bottom
— conical off-centered top
— manhole cover, dia. 200 mm
— breath valve, DIN 50, PVC
— fitting, TC 2"
— spray ball, dia. 90 mm
— CIP pipe
— lifting lugs
— ladder support
— type plate with note card
— thermometer, analog
— sample tap, DIN 15
— level indicator, dia. 16 mm, scaled, open

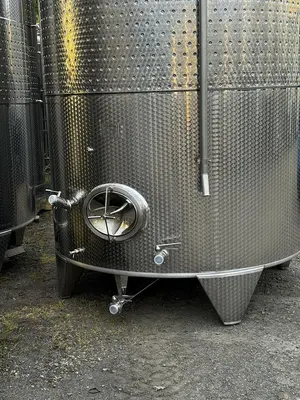

— manway door, oval, 440 x 340 mm, mod. CL

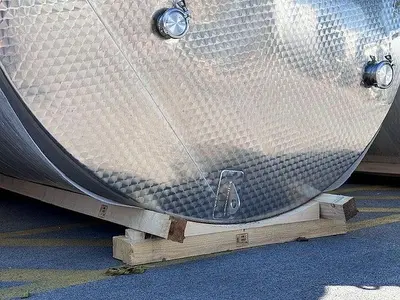

— cooling jacket, 5 + 5 + 5 m2, max. 2.5 bar, wrap around style
— thermowell
— partial discharge, butterfly valve, TC 2"
— total discharge, butterfly valve, TC 2"
— material AISI 304, BA, mirror inside, circle brushed outside
— packaging

Overall dimesnions are 23'-6" tall x 88" diameter.
