NEW LETINA INOX T2100A12

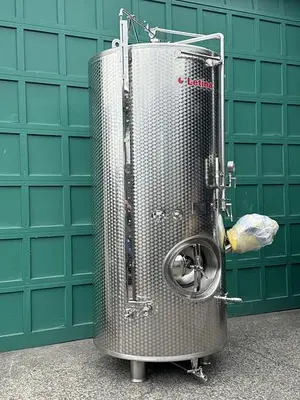

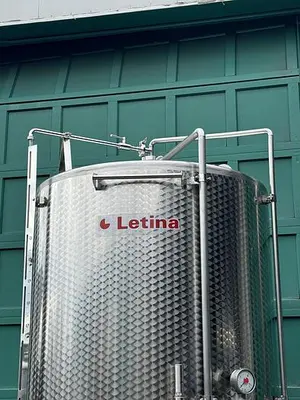

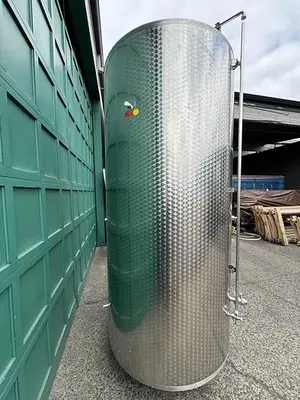

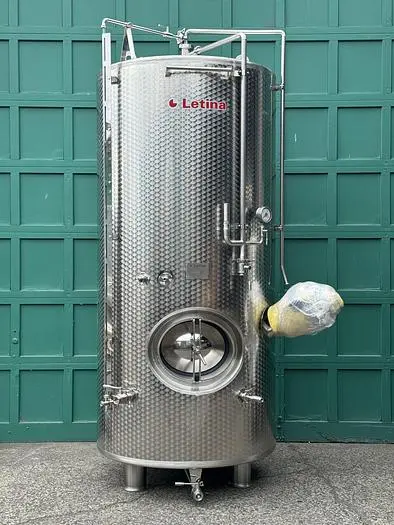

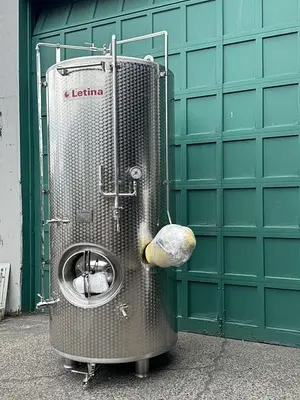

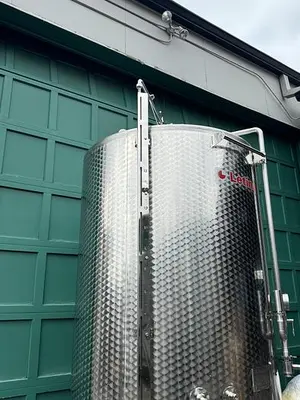

Item is a Letina high pressure jacketed tank rated at 6 bar operating pressure. The tank is oufitted with jacket and insulation/cladding along with a side mounted agitator. Specifications are as follows:

— volume approx. 2100 lit
— coat diameter 1118 mm, height 2000 mm
— insulator diameter 1238 mm, height 2100
— total height approx. 3000 mm
— 3 legs, height 500 mm, closed
— dished bottom and top
— working pressure max. 6 bar
— insulation 60 mm, PU foam
— stainless steel clad
— fitting on top
— CIP pipe with spray ball
— ladder support
— type plate with note card
— thermometer, analog
— sample tap, DIN 15
— manometer
— security valve
— manway door, oval
— level indicator, dia. 16 mm, scaled, closed
— cooling jacket, 2.1 m2, max. 2.5 bar
— thermowell
— ball valve, tri-clamp 1.5", with carbonation stone
— partial discharge, ball valve, tri-clamp 1.5"
— total discharge, ball valve, tri-clamp 1.5"
— fixed stirrer, 0.75 kW, 1400 rpm
— material AISI 304, BA, mirror inside, circle brushed outside
— packaging
