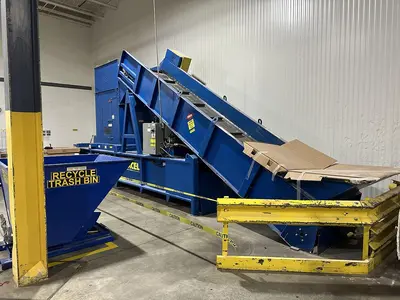

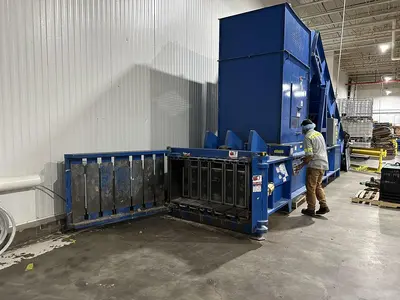

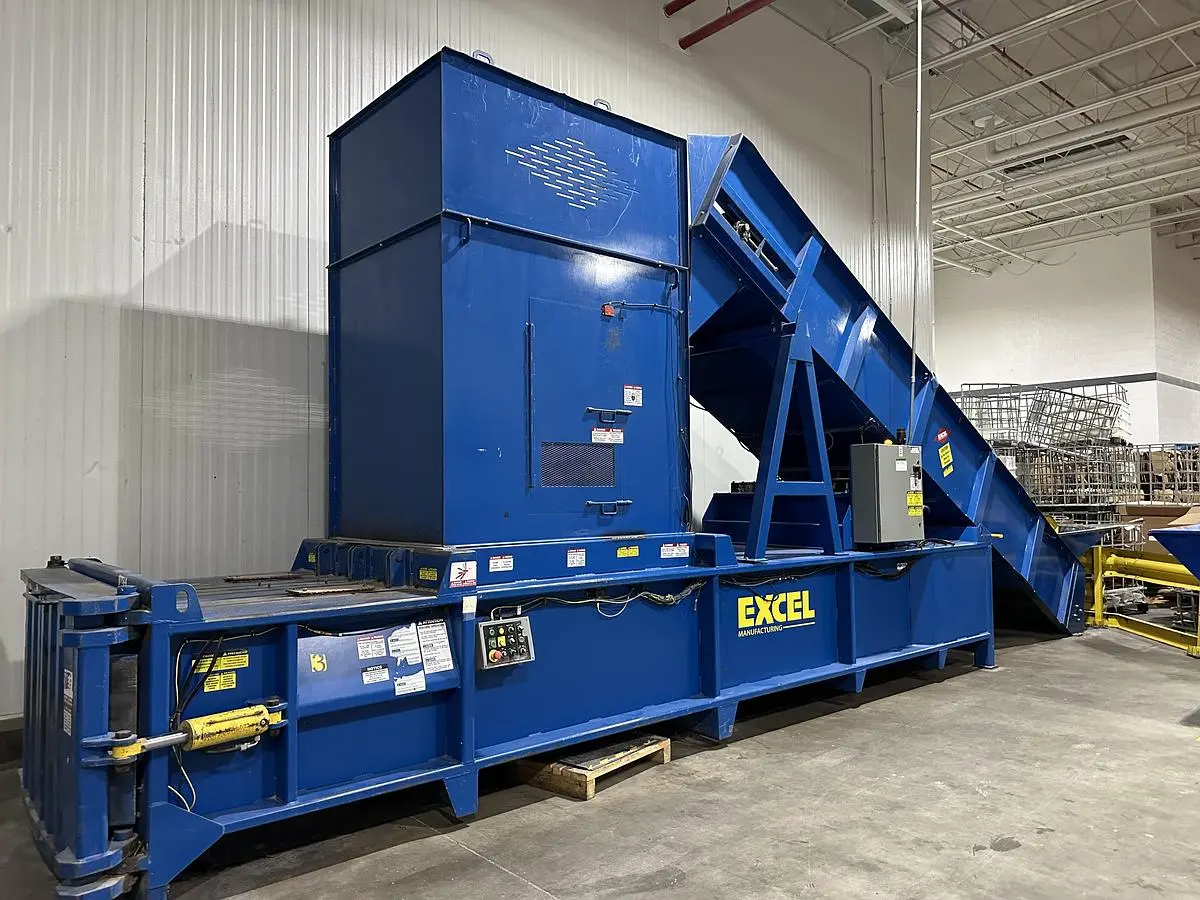

The Excel EX63F Full Eject Closed Door Baler is engineered for durability and efficiency, making it one of the most reliable options in the recycling and scrap handling industry. With its compact footprint, it is ideal for facilities with limited space. The baler effectively manages a wide range of materials, including FOAM, corrugated, paper, plastics, and metals, ensuring high-density bales with minimal cross-contamination.
The EX63F is powered by a 20HP TEFC motor and feature dual 6" cylinders, delivering a total hydraulic system pressure of 3,000 PSI and a ram face pressure of 92 PSI. The EX63F offers additional benefits like a hydraulic door latch and regenerative circuit to reduce cycle time. Standard features include an automatic bale-sizing system, shear jam correction, and full-bale ejection, which contribute to operational efficiency and reduced labor costs.
To enhance user safety and convenience, the baler is equipped with a patented safety interlock door, remote controls, and NEMA 12-rated enclosures. With full penetration horizontal baling capability, the EX Series offers powerful, and space-efficient performance!
Feed Opening: 54"W x 70"L
Bale Weight: Up to 2,000 lbs.
Bale Size: 60”L x 48”W x 30”H
Main Cylinder(s): Dual 6" cylinders
Hydraulic Door Latch: Hydraulic door latch
Regenerative Circut: Regenerative circuit - reduces cycle time by 17 seconds
Total Compaction Force: 3,000 PSI
Total Ram Face PSI: 92 PSI
Hydraulic System Pressure: 3,000 PSI
Motor Size: 20HP TEFC motor
Electrical: Standard Voltage — 208-, 230- or 460-volt, 60-hertz, Three-Phase
BRT Classification: BRT Verified
Warranty: Tiered Packages Available
