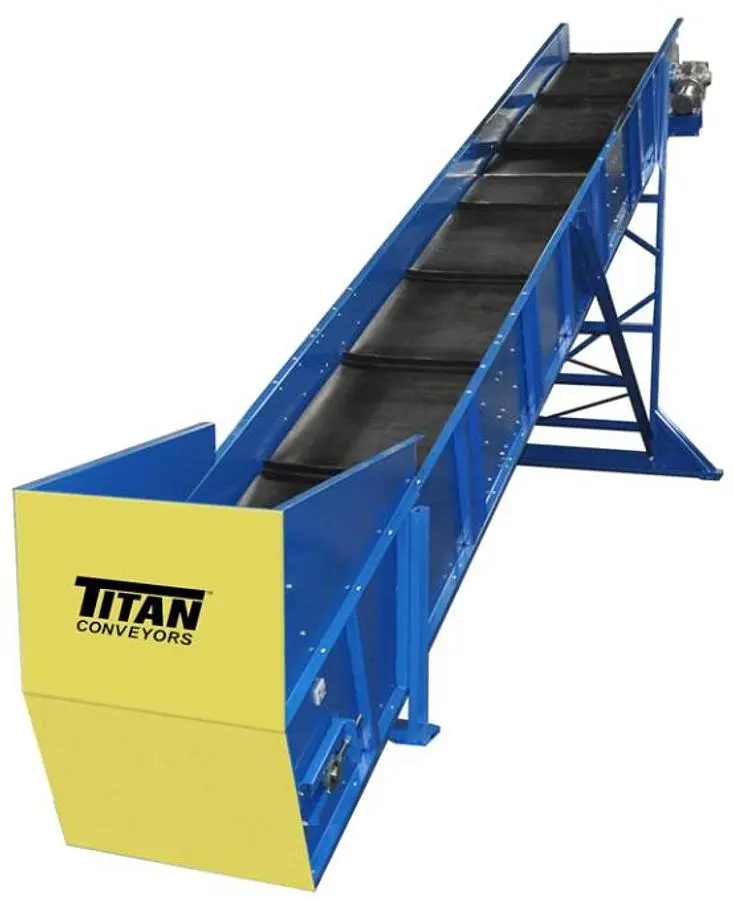

NEW 2026 TITAN CONVEYORS SLIDER-BED INFEED MODEL 308

The 2026 Titan Conveyor Slider-Bed Infeed Model 308 is specifically designed for efficient recycling, baling, and shredding operations. This new conveyor model offers robust construction to ensure reliable performance in demanding environments. It features a 72-inch wide conveyor belt with a length of 22 feet, incorporating a black PVC belt with 2-inch high cleats spaced at 36-inch centers. The conveyor operates at a speed of 50 feet per minute, achieving optimal throughput.

Powered by a 1-1/2 HP motor compatible with 240/480 V three-phase electrical systems, the Slider-Bed Infeed Model 308 is equipped with a NORD 40:1 reducer and an 8-inch diameter head and tail shaft. The frame is constructed from formed #10 gauge steel, while regreaseable bearings and 12-inch high siderails with full-length skirting offer enhanced durability and containment. An adjustable support system ensures flexibility with a minimum infeed height and 128-inch clear discharge height.

The additional features of this conveyor include a hopper at the infeed with a 48-inch top height for easy loading. The design is backed by a one-year factory warranty covering parts and labor, underscoring its quality and reliability for continuous operation.

Conveyor Belt Width: 72"
Conveyor Length: 22'
Belting: Black PVC #120 W/ 2" High Cleats on 36" Centers
Conveyor Speed: 50 FPM
Drive Location: Side Mount Drive RH
Motor Size: 1-1/2HP 240/480 Volt Inverter Duty 1800RPM 145TC
Electrical: Three Phase 240 / 480 volts
Reducer: 40:1, NORD REDUCER
Head Shaft: 8" Diameter x 72" FL, CFRL, Drive
Tail Shaft: 8" Diameter x 72" FL, CFRL, Tail
Frame Thickness: Formed #10 Gauge
Bearings: Regreaseable
Skirting: 12" High Siderails, Full Length - Both Sides
Conveyor Supports: Three Pair of Adjustable Supports for Minimum at the Infeed and 128" Clear at the Discharge
Additional Features: Hopper at the Infeed for Loading, 48" Top of Hopper to the Floor
