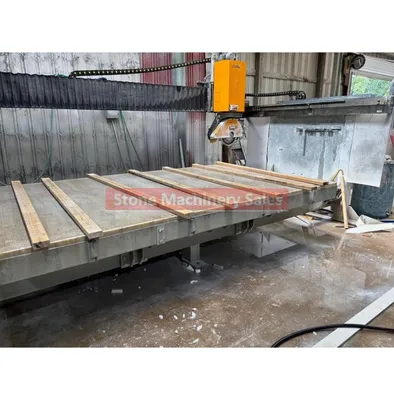

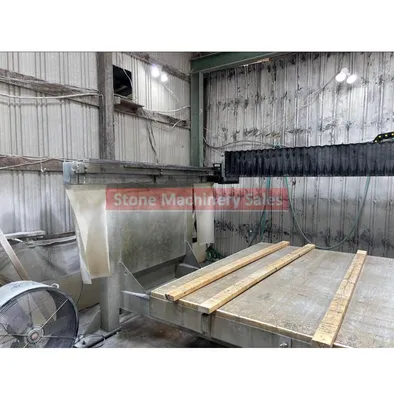

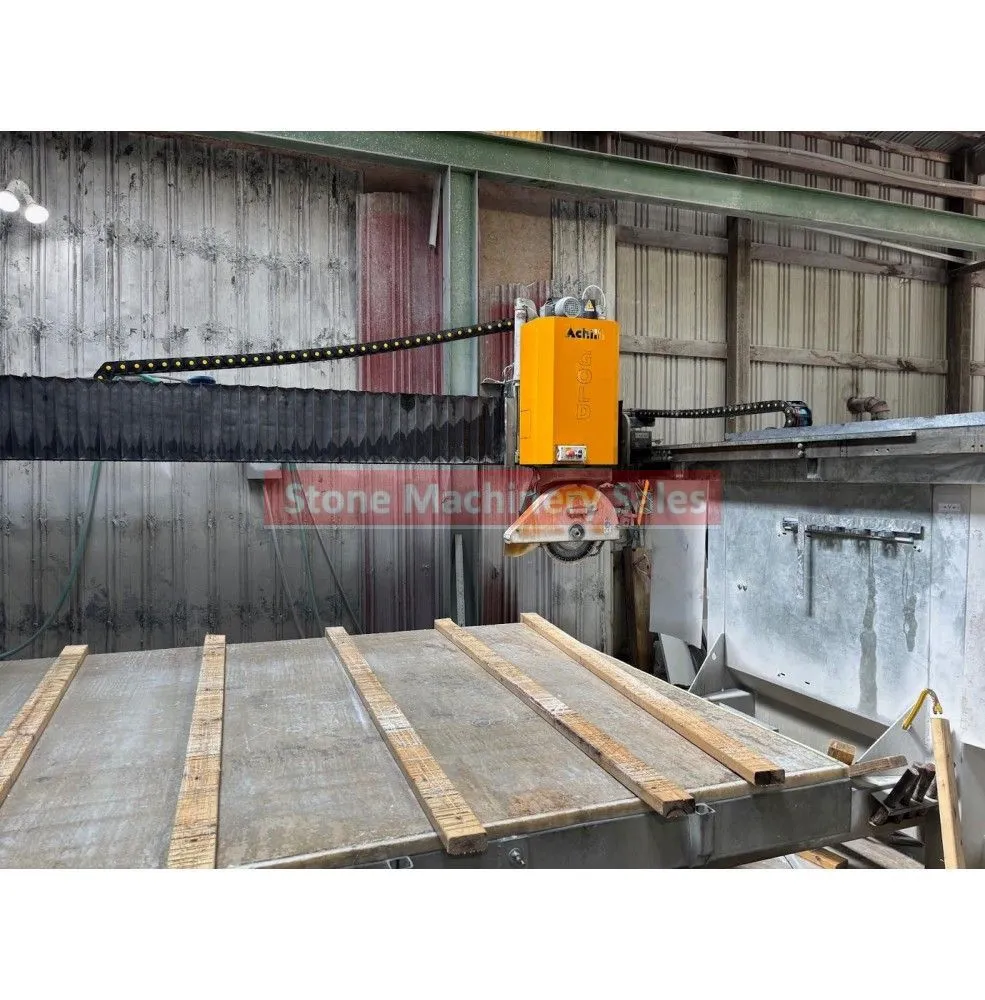

Achilli Gold 5 Axis Bridge Saw

Achilli
Gold
Automatic Bridge Saw
Tilting Table
5 Axis
Monoblock structure for easy installation (does not require foundation);
Automatic head rotation;
Precision Stone Cutting: extremely accurate and consistent stone sawing.
Simple to Operate: GOLD is capable of fully automatic operation or can be operated in a semi-automatic mode to give the operator full control of sawing operations;
Manual or CNC controlled head tilt from 90 to 0 degrees;
1/2” gas connection for mounting core drills and perform an automatic drilling cycle to easily cut corners and remove the tension from the sintered material plates;
Pre-loaded parametric figures such as hexagon, octagon, kitchen top, trapezium, polygon, etc.
Profiling environment of the CNC to create artistic frames and decorations.

Technical Details  * from manufacture website

X axis travel
3500/3900 mm (11'5"/12'8")
Y axis travel
2350 mm (7'8")
Z axis travel
300 mm (12")
Worktable dimensions
3500x2200 mm (11'5"" x 7'2")
Diamond blade diameter
525 mm (20")
Blade bore size
50 mm
Head tilt
90° - 0°
Head rotation
0°- 360°
Main motor power
11kW = 15HP
Main motor variable speed
800 - 3000 rpm
Standard voltage/frequency
3ph. 400V-50/60Hz  230V-60Hz
