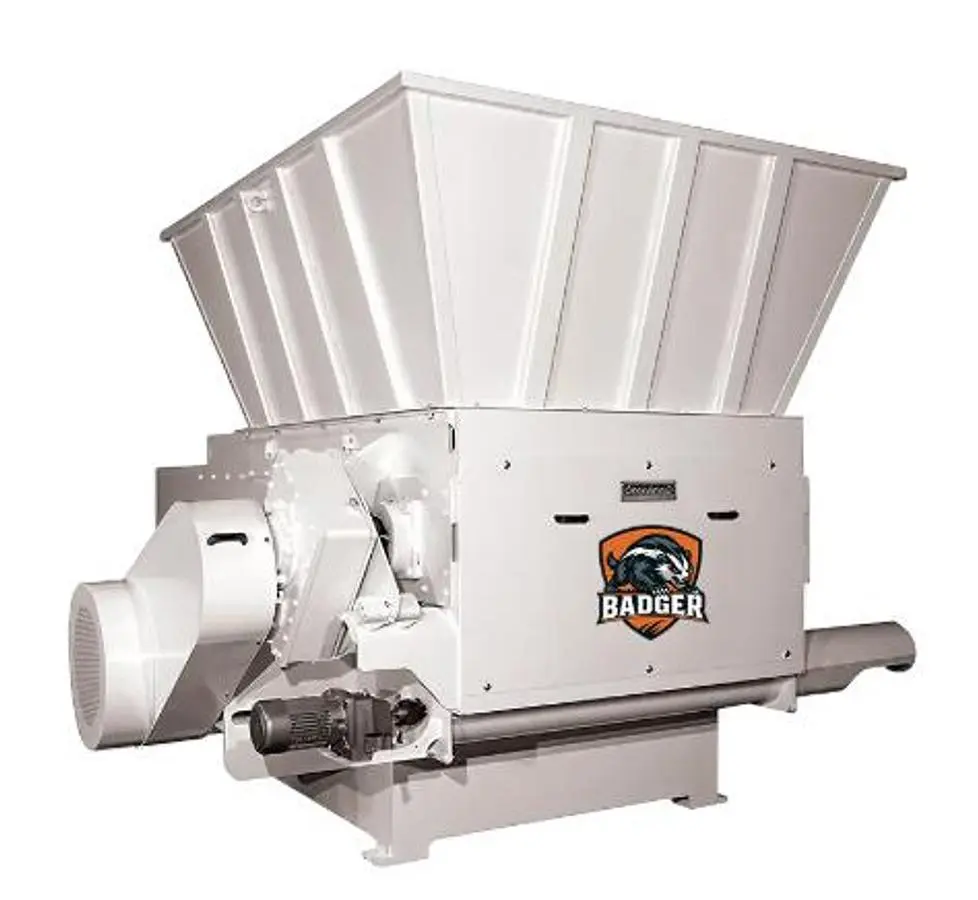

NEW 2026 CRESSWOOD SHREDDING XRV500-100 DESTROYER SERIES LOW RPM SHREDDER
Overview
Description
The Cresswood Shredding XRV500-100 DESTROYER SERIES is a robust, low RPM industrial shredder designed for applications in construction waste recycling, scrap handling, and secure information destruction. Notable for its sturdy construction, this model boasts a rugged steel frame and measures a substantial floor area of 89" x 120", with a net weight of 12,500 lbs. It features a V-Rotor cutterhead design, yielding maximum output with 70 premium cupped 1¼” inserts. The cutting chamber measures 50" x 57" with a rotor diameter of 16" and a grinding head speed adjustable between 50-150 RPM.
The shredder is powered by a 100 HP motor, operating on 480V/60Hz/3Ph, ensuring consistent and efficient performance. The machine's drive package is supported by a heavy-duty fabricated gearbox and double row spherical roller bearings, providing durability and reliability in demanding environments. With a mid-range hopper volume of 3.5 cubic yards, the XRV500-100 can handle significant loads of material for processing.
Additional features include a fluid clutch, drive train protection system, and an exclusive Dura-Glide Ram System to enhance operational efficiency. The ram assembly provides a 40" stroke with machined metal floor and premium quality guides. Its control package includes a PLC-controlled load sensor, digital cutterhead amp meter, and auto-reverse functionality to prevent lockup. The equipment comes with a factory warranty of one year or 3,000 hours, ensuring peace of mind with your investment.
Specifications
Motor Size: 100 HP
Cutting Chamber: 50″ x 57″
Ram Stroke: 40"
Rotor Diameter: 16"
Grinding Head Speed: 50-150 RPM
Frame Thickness: 5/8"
Number of Cutter Teeth: 70
Shaft Diameter: 16"
Mid-Range Hopper Volume: 3.5 Cubic Yards
Floor Area of Unit: 50″ x 57″
Shipping Weight: 12,500 lbs.
