Grain Grist Case - Tank for supplying milled grain to mash tun & auger

Grain Storage Vessel (GS)
General Description
* Function: Grain storage / pre-mash hopper positioned directly behind the brewhouse, receiving milled grain from an auger feed line connected to the grist mill.

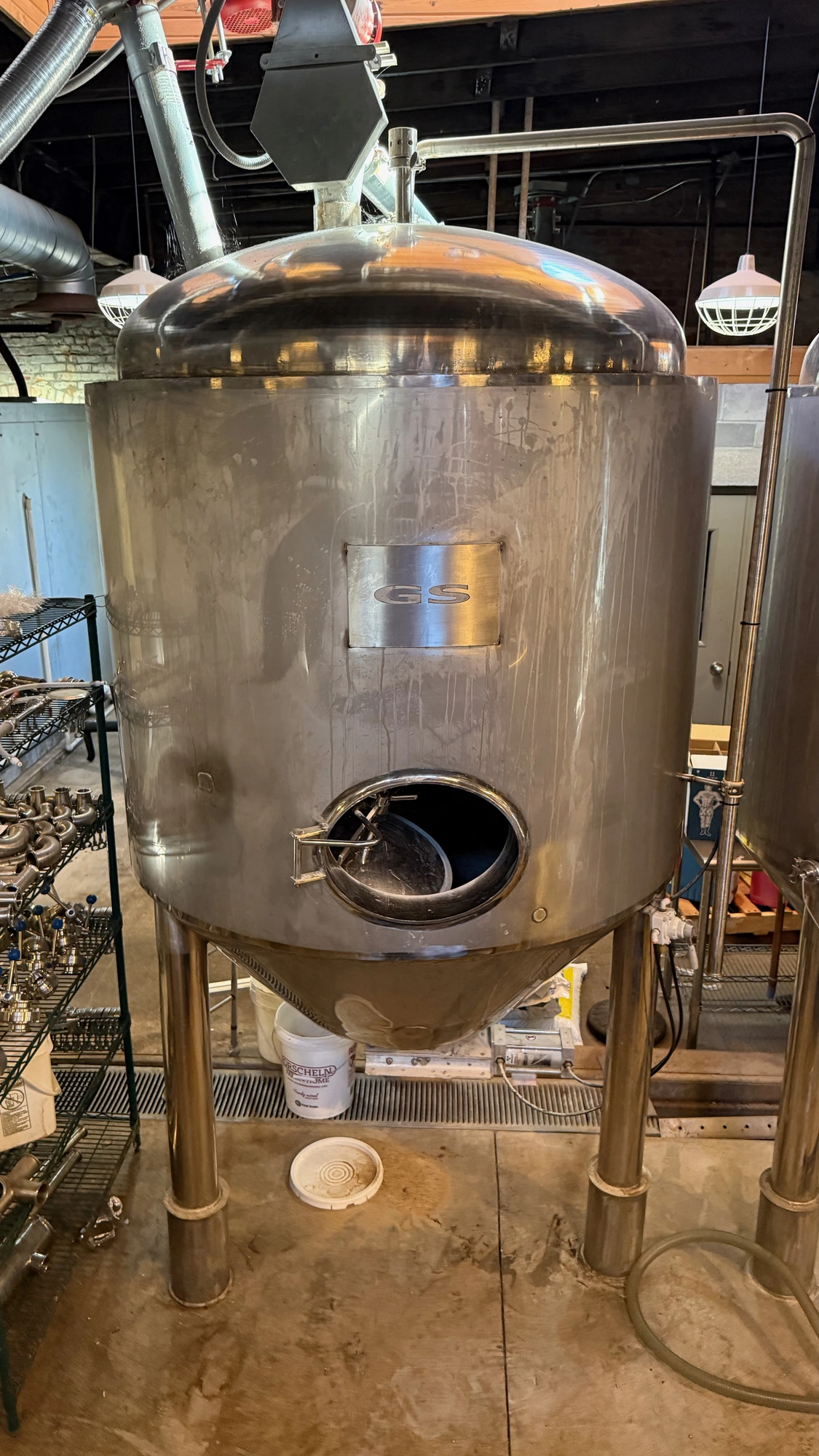

* Construction: Cylindrical, vertical, stainless-steel vessel with dished top and conical bottom on tubular legs.
* Dimensions: 9.5 ft H × 5 ft W × 5 ft D (approx.).
* Capacity: serves a 20 BBL capacity brewhouse operation (nominal, based on brewhouse scale and vessel labeling).
Features

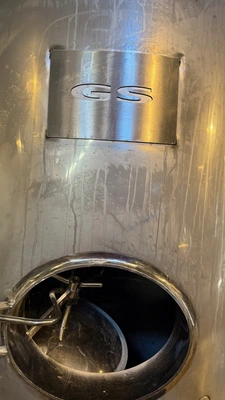

* Label: Embossed GS (“Grain Storage”) plate on front face.

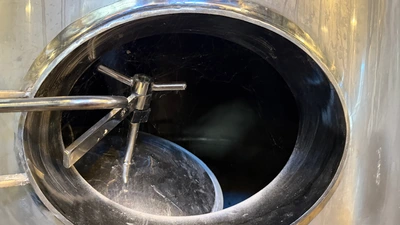

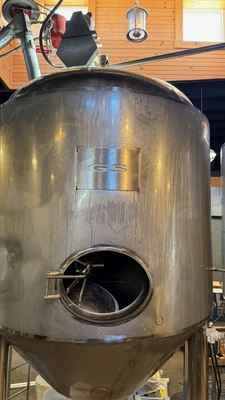

* Access: Front manway with tri-clamp closure for cleaning and inspection.

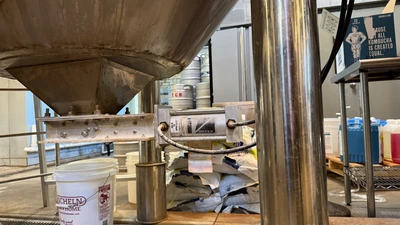

* Cone Bottom: Sanitary drain/auger discharge port at base leading to flexible hose or auger inlet.
* Top Feed: Hard-piped auger down-tube entering at top center, supported by overhead framework.
* Venting: Upper vent/stack connection for pressure equalization during fill and discharge.
* Finish: Brushed stainless exterior; welded sanitary seams.
* Mounting: Four welded stainless legs with floor mounts.
Location & Integration
* Installed in-line with fermentation row immediately behind the brewhouse deck.
* Interfaces with brewhouse milling system via auger and with mash tun through grain-in plumbing.
* Positioned for gravity-assisted or pneumatic feed into brewhouse operations.
