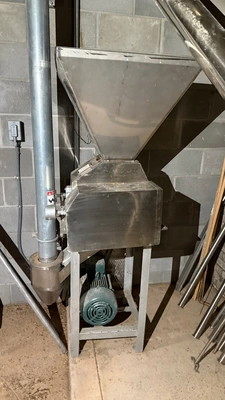

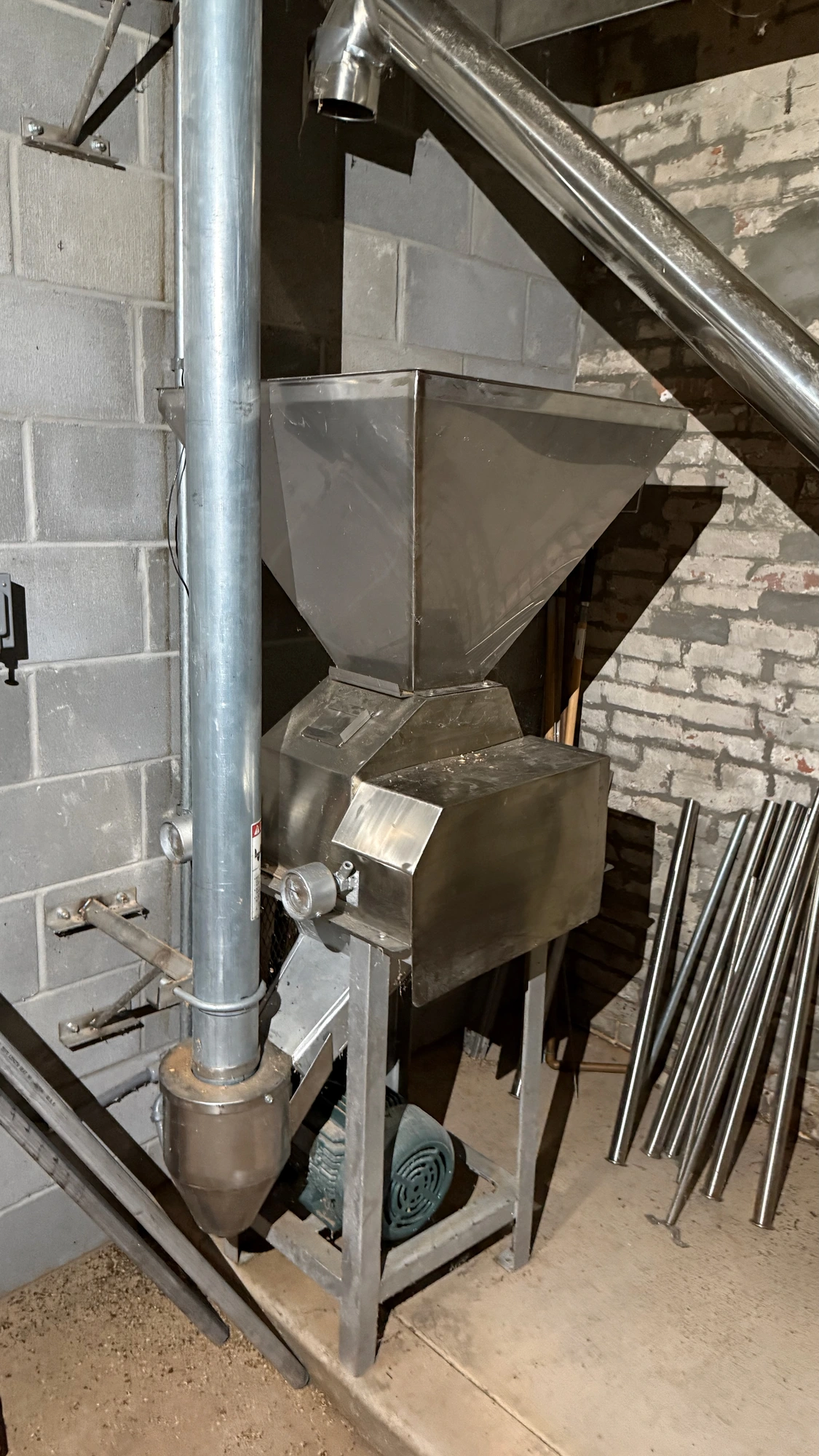

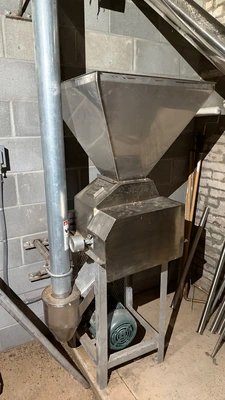

Grist Mill with Auger Feed
* Overall dimensions: 66” H × 26” W × 26” D
* Construction: Stainless steel hopper, mild steel frame, and integrated motor drive.

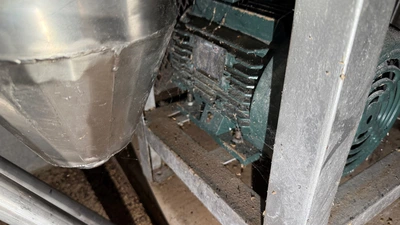

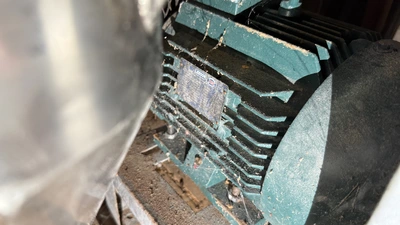

* Motor: Leeson industrial motor (nameplate visible in photos; HP and RPM unreadable—typical for 2–3 HP in brewery applications of this scale).

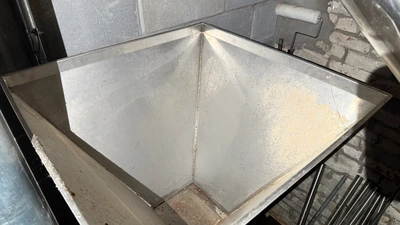

* Hopper: Welded stainless pyramid-style hopper with open top for easy grain loading and clean-out.
* Drive system: Direct belt drive beneath housing; belt guard intact.

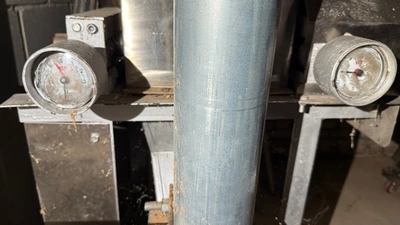

* Roller adjustment: Dual analog pressure gauges mounted at the mill’s face indicate adjustable roller gap for precision crush.

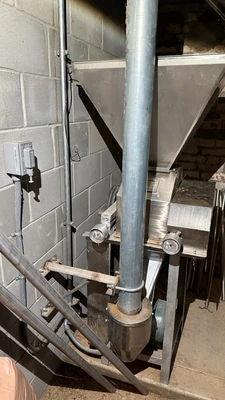

* Discharge: Output connects directly to a stainless auger feed tube, running vertically to a sealed elbow and horizontal pipe leading toward the brewhouse grain-in point.
* Electrical: On/Off grain switch installed nearby on wall conduit.
* Condition: Mechanically complete and functional; typical signs of brewery use (cosmetic dust, grain residue).
Notes:
* Appears to be custom-integrated with auger grain delivery (likely conveying crushed grain to a grist hopper or mash tun via airlock or mechanical feed).
* Suitable for 10–30 BBL systems based on size, roller spacing, and auger configuration.
Category: Grain Mills and Augers
Status: available
Condition: used
Quantity: 1
SKU: ITE299
Low Price: 1990.0
High Price: 5990.0
